Požadujte výkon SUNEO 10 pro úpravu vody v bazénu UV zářením
Toto ošetřovací zařízení poskytované baktericidem UVc má princip generování ultrafialových paprsků v ošetřovací komoře. Tyto paprsky ozařují živé buňky obsažené v kapalině procházející zařízením, aniž by měnily fyzikálně-chemická kritéria a bez vytváření zbytkových roztoků.
Systém se zapíná zásuvkou 230V napojenou na filtraci. Po zastavení filtrace se kontrolka nerozsvítí.
Vyrobeno a dimenzováno výhradně ve Francii.

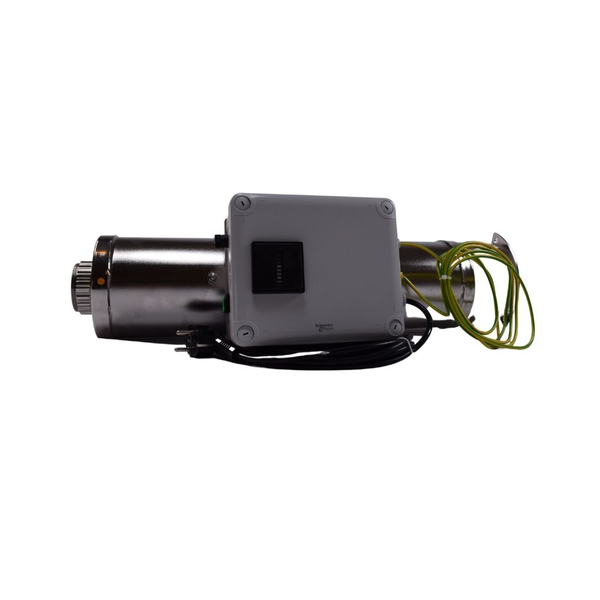

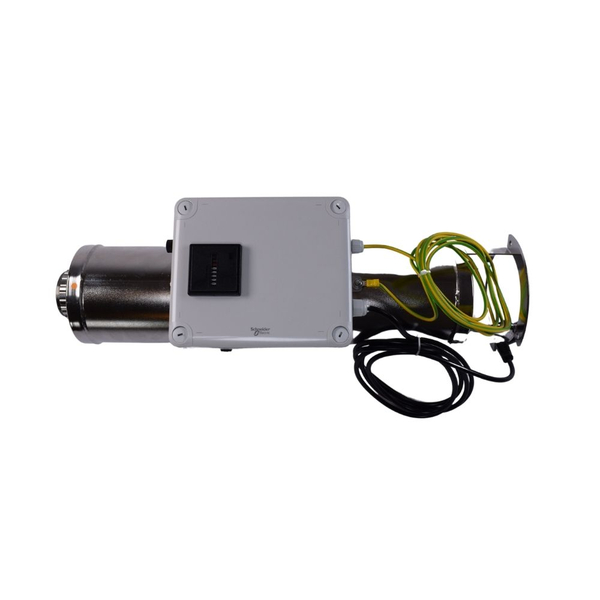

Popis SUNEO 10
Přípustný průtok čerpadla: | 10 m3/h |
Hmotnost / velikost těla: | 10 kg / 640 x 180 x 265 |
Léčebná komora
Hmotnost pevného baktericidu: | 21 kg |
Objem UVc komory: | 5 litrů |
Zadejte výstup: | 2"-DN50 |
Hmota : | INOX 316L |
Pracovní tlak : | 1 bar |
Max tlak : | 2 bary |
Průtok/dávkování: | 10 m3/h při 30 mJ/cm² |
Min-max teplota vody: | 0-40 °C |
Elektrická skříň
Specifičnost: | Integrovaný box |
Spotřebovaná síla: | 100 Wh |
Ochrana: | 1A pojistka |
Napájecí napětí: | 220-240V AC – 50Hz |
Teplota okolí : | 0 - 40 °C |
UVc lampy
číslo lampy: | 1 |
Reference lampy: | 18LMCR95W |
Germicidní účinnost: | 27W UVc |
Životnost lampy: | 9000 hodin |
Užijte si nejčistší možnou vodu s přírodním řešením :
- Žádné pachy, žádné alergie... Celý den plaveme v naprostém klidu
- Fyzikální proces ničení bakterií ( ekologický a přírodní)
- Prudké snížení spotřeby chemických produktů
- Kompatibilní se všemi typy bazénů
To vám umožní ušetřit peníze :
- Zvýšením životnosti zařízení a nátěrů,
- Žádná změna pH vody,
- Bez vedlejších účinků,
- Žádná tvorba škodlivých vedlejších produktů!
Investujte do udržitelné technologie vyvinuté a vyrobené v Lyonu. Všechny náhradní díly
máme skladem, abychom udrželi vaše zařízení v průběhu času !!
RERUV FRANCOUZSKÝ VÝROBCE JIŽ 35 LET
Samotné UV pro léčebný účinek
Jak voda prochází systémem SUNEO, UV lampy generují UV záření, které ničí všechny živé buňky (bakterie, viry, řasy).
Tím se nemění fyzikálně-chemická kritéria a nevznikají škodlivé vedlejší produkty. Voda ve vašem bazénu tak zůstává zdravější , přirozenější a ekologičtější .
To je zvláště cítit ve své kůži. Skutečně se díky tomuto systému koupete ve vodě s menším množstvím chemikálií.
Všimněte si, že velikost nádrže a výkon lamp jsou zásadní pro úspěšnou léčbu. Nezapomeňte tedy vybrat zařízení dostatečné velikosti.
UV + aktivní kyslík pro nepřetržitý účinek
Automatické a denní vstřikování aktivního kyslíku pomocí dávkovacího čerpadla se provádí podle teploty vody a objemu bazénu.
Tím je zajištěna nepřetržitá dezinfekce , když čerpadlo neběží (mezi filtračními cykly). Aktivní kyslík, také nazývaný peroxid vodíku, je snadno dostupný.
Jeho účinnost a netoxicita jsou uznávány všemi profesionály v oboru. Chápete, že je proto důrazně doporučeno, aby byla zajištěna nepřetržitá dezinfekce, instalovat do vaší instalace dávkovací čerpadlo (popis je k dispozici níže v produktovém listu).
Navržený model umožňuje přesně regulovat dávkování.
UV ošetření + aktivní kyslík + regulace PH pro křišťálově čistou vodu
pH vašeho bazénu je určujícím prvkem pro kvalitu vody v bazénu.
Kontrola a udržování správné úrovně pH je zásadní pro zajištění pohodlí koupajících se, účinnosti ošetřujících přípravků, trvanlivosti zařízení a dobrého výkonu nátěru.
We therefore offer you the DUO pump which will inject active oxygen and regulate the pH.
All coupled with UV treatment, you will "finally" have quality pool water worthy of the investment you have made. You and your children can enjoy it all summer long, with no time limit!! ;-)
Technical characteristics of SUNEO UV panels for swimming pools.
The SUNEO UV must be chosen according to the flow rate of the pump
MODEL | SUNEO 10 |
E/S | 2" |
Maximum FLOW of the pump | 10 m3/h |
ELECTRIC POWER | 1 x 95 W |

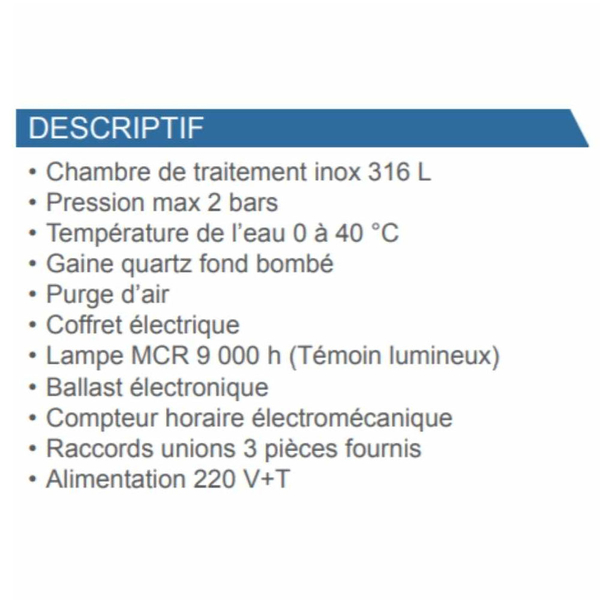

DESCRIPTION OF SUNEO:
- 316 L stainless steel treatment chamber
- Max pressure 2 bar
- Water temperature 0 to 40°C
- Domed bottom quartz sheath
- Air bleeding
- Electrical box
- MCR lamp 9000 h (Indicator light)
- electronic ballast
- Electromechanical hour meter
- Unions 3 pieces provided
- 220 V+T power supply
Lifespan of the lamps 9000 h (depending on the number of ignitions) Simple and quick installation (vertical or horizontal) STAINLESS STEEL TANK 5-YEAR WARRANTY

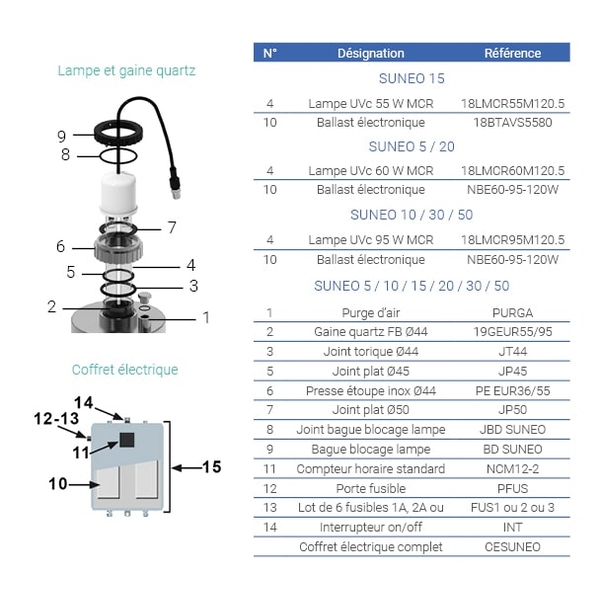

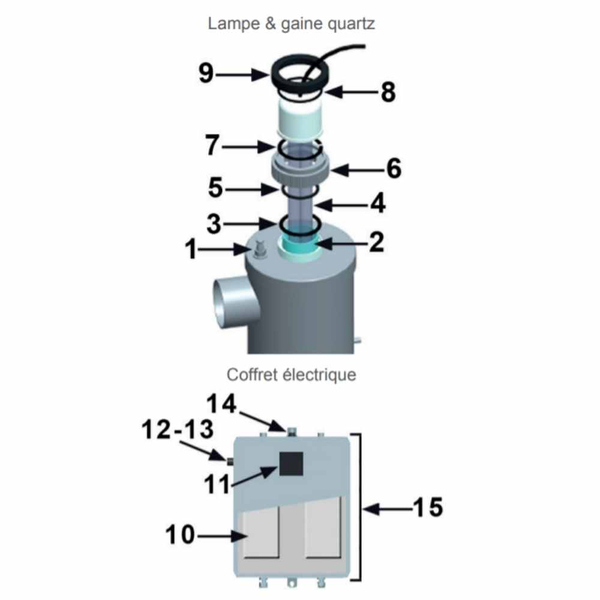

SUNEO consumables and spare parts:
- UVc lamp: 9,000 hours / 2 seasons
- Seal: 9,000 hours / 2 seasons
- Sheath: 5 years
SUNEO equipment can be coupled with the following pumps.
Metering pump
Active oxygen alone
To ensure ideal bathing quality , this dosing pump will automatically inject a residual product for pools up to 200 m3.
- Peristaltic dosing pump
- PVC suction and delivery pipe
- Suction strainer
- Injector
- Support collar DN50
- Support collar DN63
- Wall mounting bracket with dowels and screws
Advantages of the dosing pump:
- Peristaltic dosing pump
- Simple , precise and flexible operation
- Daily or weekly timer programming
- Ideal for dosing active oxygen or hydrogen peroxide.
- Digital display
- User menu for quick setup
Flow rate: 1.4 L/h 1 bar
Power consumption: 15 Watt (max)
Power supply: 220-230V 50/60Hz
Option: level sensor
DUO pump
Active oxygen + pH regulation
To make sure you finally have the crystalline pool you dreamed of, this regulation box will automatically handle pH management as well as the injection of active oxygen for pools up to 200 m3.
For your pool water, the recommended pH is between 7 and 7.4.
- Regulation box
- pH probe with 5 meter cable
- Support collar, probe holder and injector (x2)
- Temperature sensor

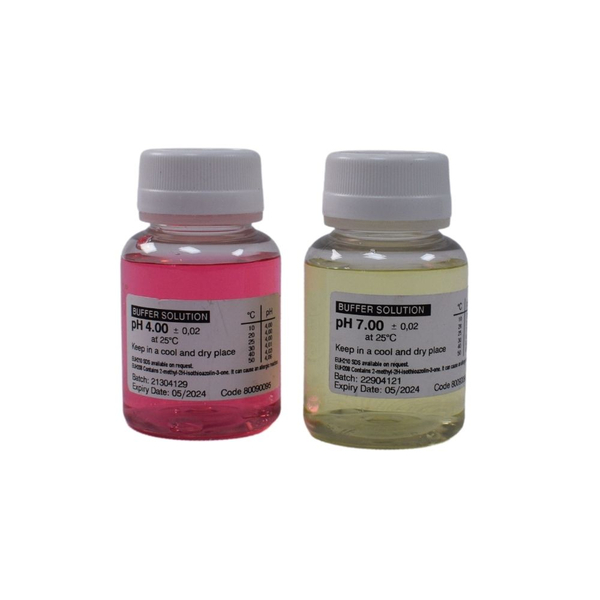

- Buffer solutions pH4 and ph7
- Empty bottle for pH probe cleaning
- Suction and discharge pipe
- 24mm diameter cutter for drilling the pipe
- DN63 support collar adaptation spacers (x2)
- Long pH probe adaptation spacers (120mm)
- O-rings for pH probe sealing
- O-ring seal for probe holder (x2)
- Probe holder shutter
- Wall mounting bracket with dowels and screws
- Suction strainer (x2)
Advantages of the DUO dosing pump:
- Double peristaltic dosing pump
- Automatic pH+ or pH- regulation
- Programmable dosing frequency from 1 hour to 24 hours / 1 day - 7 days
- Proportional operation
- Temperature sensor
- Digital display
- User menu for quick setup
Flow rate: 1.4 L/h 1 bar
Measurement range: 5.0 - 9.0 pH
Probe type: pH electrode
Temperature probe: PT100
Power consumption: 12 Watt (max)
Power supply: 220-230V 50/60Hz
Option: level sensor
Contact us to study your project
How to install the dosing pump for Active Oxygen?
How to install the DUO dosing pump?
Contact us to study your project
How to maintain your SUNEO UV installation?
Wintering:
When the season for using the swimming pool is over, the swimming pool water treatment installation and more particularly the UV station should be placed in winter storage .
To do this, you must drain the UV bactericide, dismantle the UV lamps and the quartz sheath and store everything in suitable packaging, in a dry place and at room temperature.
Please note that the lamps and the quartz sheath are fragile, you must handle them with care.
Replacement of UV lamps and other consumables:
UV lamps have an optimum operating time of 9000h (about 1 year). For the lucky ones whose pool season lasts 6 months, a UV bulb can be used for 2 consecutive seasons before being replaced.
It is recommended to change the seals at the same time as the UV lamp .
The quartz sheath is a glass sheath which seals between the stainless steel body in which the water to be treated circulates and the UV bulb which must remain dry.
The replacement of the quartz sheath is recommended every 5 years. However, if the sheath stays clean from season to season to allow UV to pass through it and there is no lime build-up, you can keep it longer.
A quartz sheath for a SUNEO costs around €150 including tax.
PLEASE READ THE INSTRUCTIONS CAREFULLY AND FOLLOW THE SAFETY INSTRUCTIONS
Dosage of active oxygen:
Active Oxygen is a hydrogen peroxide with which is associated an anti-limestone and an anti-algae.
Active Oxygen is a light residual which allows the water to remain clean for a certain time after passing through the UV station while maintaining exceptional bathing comfort (no odor, no eye or skin irritation ).
It is injected in liquid form in daily micro-dosage by metering pump.
The daily injection is adjusted according to the volume of the pool and the water temperature:
These dosages are announced for a water temperature of 25°.
For any higher degree, 10% of the initial dose should be added.
We can provide you with active oxygen or anti-algae on request.
We recommend Bayrol or CTX brand products which are more effective and more stable over time.
These products are available in supermarkets without the substantial shipping costs for these specific products.
Tips for using active oxygen:
- Active oxygen is volatile at high temperature and is not recommended for water temperatures exceeding 28°, and more particularly for covered pools.
- It is not recommended for cartridge and diatomaceous earth filtration, as the presence of anti-algae can quickly clog these filters.
- Prefer the PH of the water to 7.0 or even 7.2 maximum, otherwise provide a DUO dosing pump with integrated PH dosing pump.
- During start-up at the start of the season or during the season, in the event of storms or a large number of swimmers, shock treatments should be carried out. This involves pouring a certain quantity of liquid oxidant (Ovychoc for example: 1L / 10m3) directly into the pool, preferably in the evening (follow the instructions given in the instructions for the selected product).
- For any pool equipped with a shelter, a shutter, a solar cover, it is necessary to uncover its pool during the day so that the water is oxygenated and to avoid the temperature of the water increases above 28°C.
- 380 x 620 x 240 ,
- 440 x 620 x 290 ,
- 800 x 419 x 273 ,
- 830 x 550 x 350 ,
- 870 x 550 x 350
- Záruka 2 roky. Na elektroniku je poskytována záruka 1 rok.
