Description

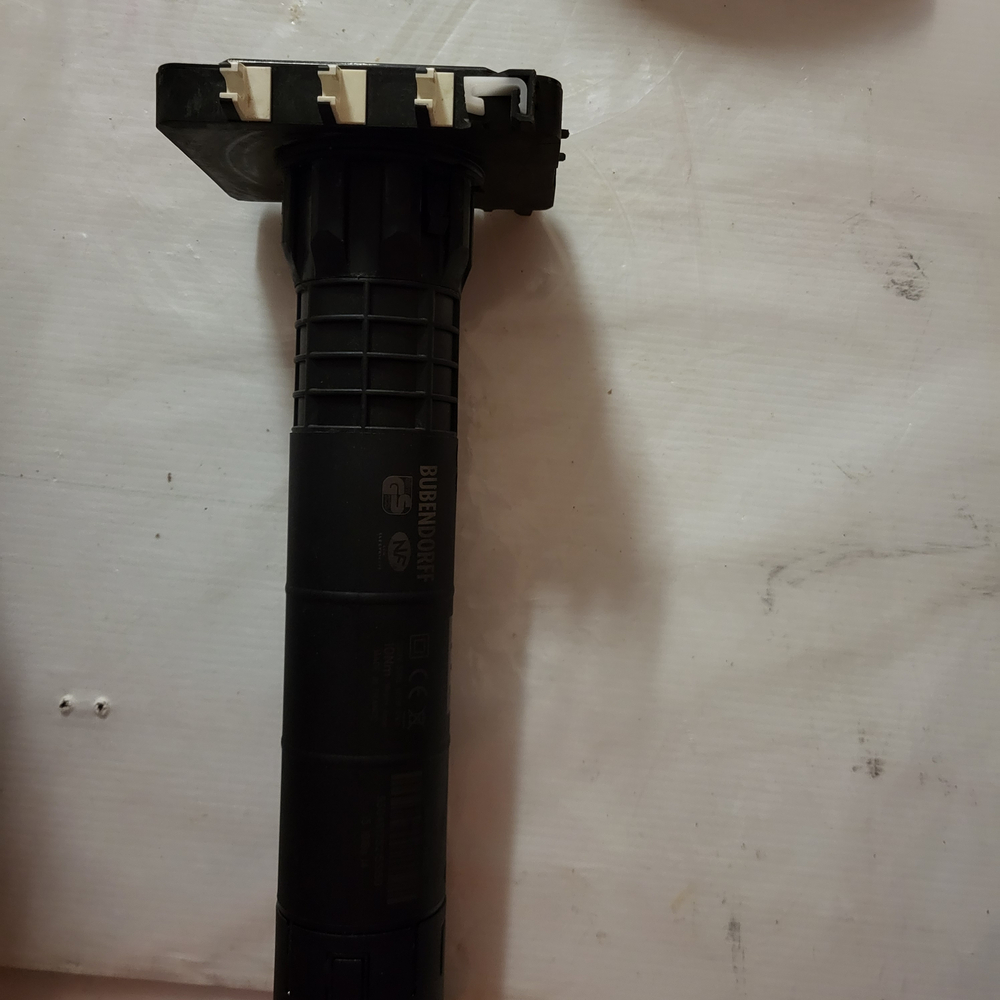

CI2 10 Nm motor: the ID2 roller shutter motor

Reference CI 2 consists of a radio R (tubular) motor on one side and an adapter bag with ID2 connector on the other, instead of a single-piece motor.

See attached instructions.

The product comes with the motor and adapter to be assembled : the ID2 adapter is to be placed in place of the wires. The operation is very simple : simply remove the blue part with a screwdriver, then position the adapter.

Details of the ID2 connector present with the CI2 engine

detail of the ID2 adapter for Bubendorff shutter motorfront face of the adapter for motor 221205

Product reference: 221205 - for TRADI ID2 roller shutter - MONO ID2

Replaces product references 221186 & 221000: CI2 radio motor - 10 Nm + 2-button rectangular remote control

BUBENDORFF ID radio motor

  • Individual CI2 type control (radio protocol)
  • Torque 10 Nm
  • 2 wires: Live and neutral
  • Automatic limit switches.
  • Supplied with card and wall radio transmitter (223026).
  • 5-year warranty
  • 12 revolutions per minute
  • Reference number inscribed on the engine: CCR 1012a I3
  • Rated power 125 W
  • Maximum operating current: 0.6 A
  • IPX4 protection standard
  • Level II protection against electric shock
  • The motor and transmitter are factory matched, meaning they are preset to work together.

The motor is available with left or right mounting (viewed from the inside).

This engine comes with:

  • His remote control
  • the ID adapter
  • 2 rivets
  • Connection manual

There is also the CI2 25Nm engine

Warning, this motor is not suitable for ID shutters from before 2011 if 96 97 98 99 00 01 02 03 04 05 06 07 08 09 then this is not the correct reference.

If this engine is suitable, the first two digits should be 11, 12, 13, 14, 15, 16, 17, 18, 19

Explanation of serial number for ID2 shutter motor

Example: 11 814242 001 001 44

Also, the 3rd digit of the SN number must be 8.

Example : 13 8 41420 001 002 14

If the first two digits of your request are 10 and we recommended this engine, it is not a mistake; in rare cases, this engine was marketed in 2010.

Note: The ID CI2 radio motor works exclusively with an ID radio transmitter labeled with the same S/N number.

100% Genuine Bubendorff Spare Part

Documentation

Notices et documentation — CI-2 radio motor - 10 Nm - Bubendorff

Is this motor suitable for a wooden shutter?

These drives are designed to operate roller shutters other than wooden and steel ones. They are made for barrels with a minimum diameter of 50 mm or 60 mm.

Télécharger la notice Specifications Bubendorff engines — CI-2 radio motor - 10 Nm - Bubendorff PDF, 1,150 Kb

How do I replace an ID2 motor with an RI?

Switch the power off, drill out the rivet and unclip the tabs to remove the motor. Fit the new RI motor into the barrel with the adapter and rivet it using the supplied 4x8 rivets.

Télécharger la notice Replacement of ID2 motor by R motor + ID2 adapter — CI-2 radio motor - 10 Nm - Bubendorff PDF, 867 Kb

Options Details

Features
Manufacturer
Bubendorff
Origin
France
Guarantee
  • 5 years warranty
Ancienne réference
bub-221186 et bub-221000
Energy
Electric
Motor connections
  • Connectique ID2 (connectique en bas)
Motor control
  • Grouped order
  • Individual control
Motor model
  • ID range (SN xx 8)
Motor Power
10 Nm
