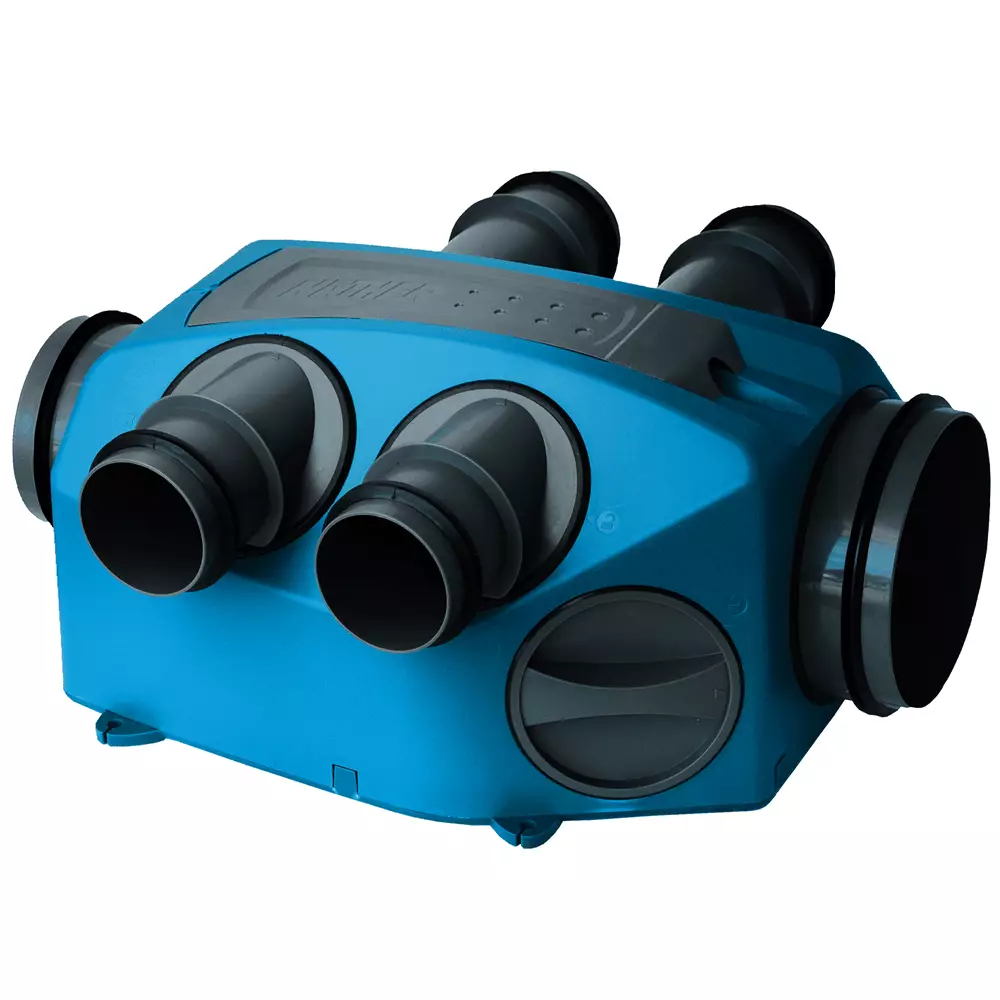

B INFINITY hygro single flow ventilation - Ultra low consumption - Nather

Description of INFINITY humidity-controlled single-flow ventilation

The hygro B or hygro A single-flow ventilation unit ensures permanent and optimal ventilation of the whole house and favors the comfort of the occupants and energy savings.

Humidity detection room by room makes it possible to adapt the air renewal to the needs of the occupants and to achieve significant savings on the heating bill.

The unit is equipped with an ultra-low power consumption micro-watt motor which reduces energy consumption related to ventilation to a minimum.

Intended for new builds and renovations alike, it allows the connection of 1 kitchen and up to 6 bathrooms and is therefore suitable for both small and large houses.

Advantages

• Configurable up to 6 bathrooms, from T1 to T6 and more
• Hygro A and B
• Very low consumption EC motor: from 7.3 WTh-C
• Very low sound level: 31.9 db(A)
• Safe 360° stitching: rotatable, multidirectional and waterproof
• Simplified electrical connection
• Multi-position installation: suspended or fixed to wall or ceiling
• Compact housing:

Compliance

• System under technical advice n° 14.5/17-2283-V3

Technical characteristics

Ventilation networks for VMC Hygro B INFINITY

The quality of the ventilation network is essential to guarantee effective air renewal, the least noise and the lowest possible electricity consumption.

This is why we offer a semi-rigid HDPE sheath network:

• It does not tear,
• It does not crush or sag,
• Quick and easy to install,
• Cleanable,
• Sustainable,
• Has very low pressure drops to facilitate air circulation.

What type of humidity sensitive air outlet and inlet should you install in your home?

The technical advice on "Infinity" Hygro-adjustable Ventilation indicates the vents and air inlets to be provided depending on the type of accommodation (T1, T2, T3, T4, T5, T6, T7 and +).

Notice to download in the "Attached files" tab
