Description of the PLATINUM EXTRA FLAT tank by GRAF
The Platine tank has many practical advantages that reduce installation costs:
Quick and inexpensive installation thanks to reduced burial depth:

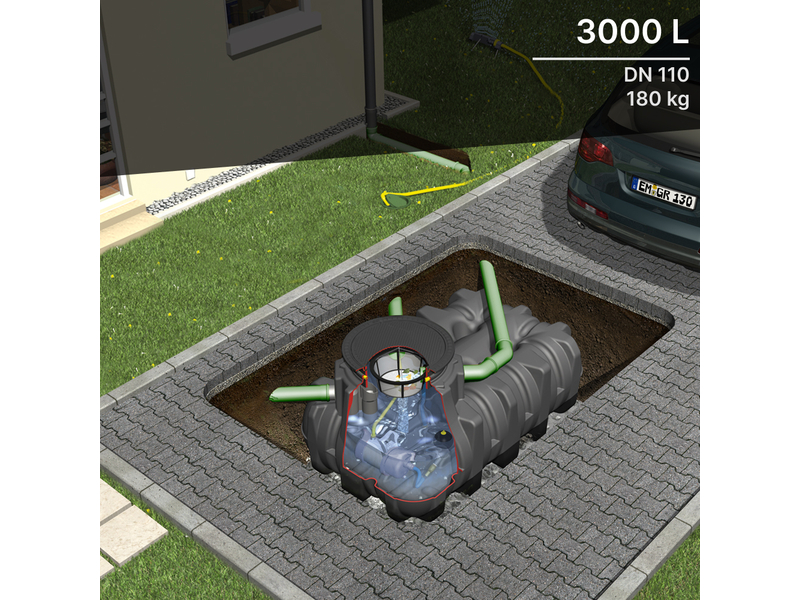

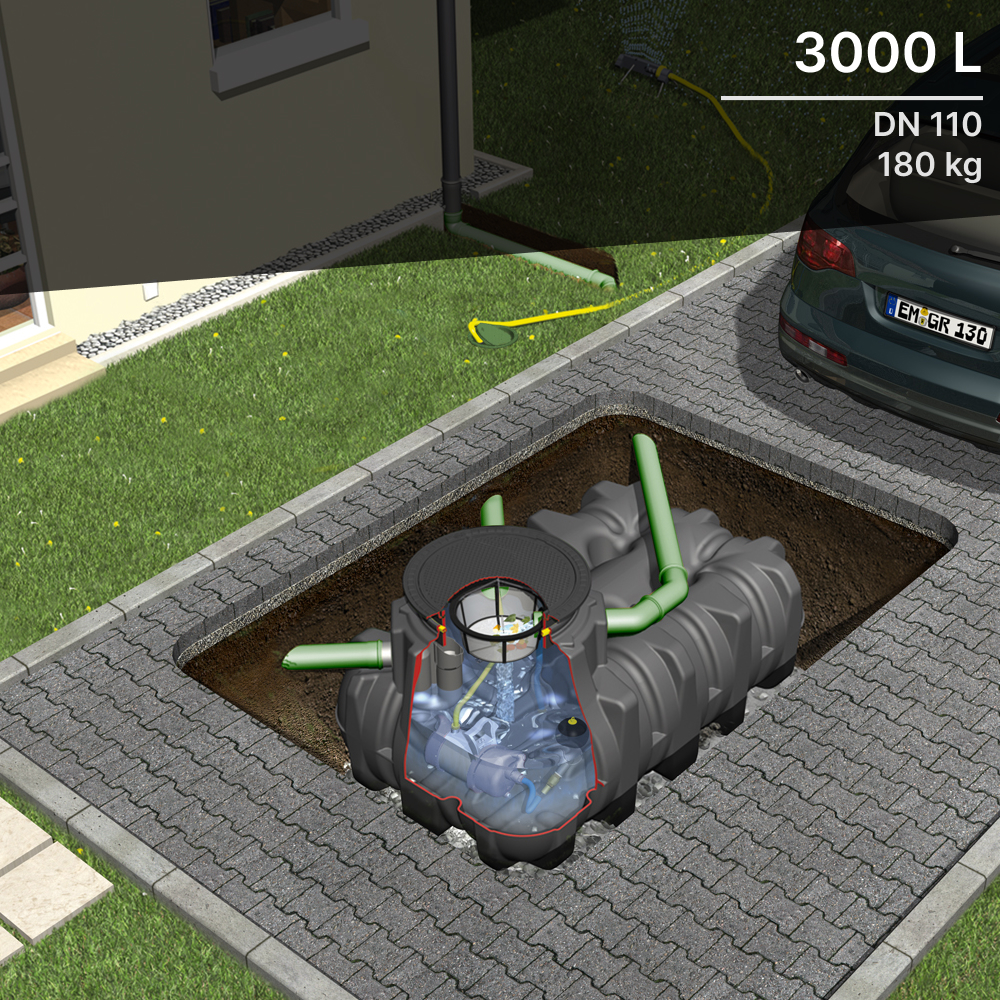

Installing the Platinum Extra Flat tank
- Integrated filtration,
- Passage of vehicles with the use of an extension with cast iron buffer (up to 2.2 T),
- Stability in the sheet to the base of the dome thanks to its design,
- Low weight: can be handled by two people without special tools
- Modular system: several Platinum tanks can be combined
- 30 year guarantee
“ The Platine® underground tank is easy and quick to install. Thanks to its low weight and reduced excavation, installation is a breeze.
The other advantages of the tank that I was enthusiastic about: its high stability, its large dome and its integrated professional filtration system.
In a word, I adopt it! ”
Thomas Blum, Landscaper

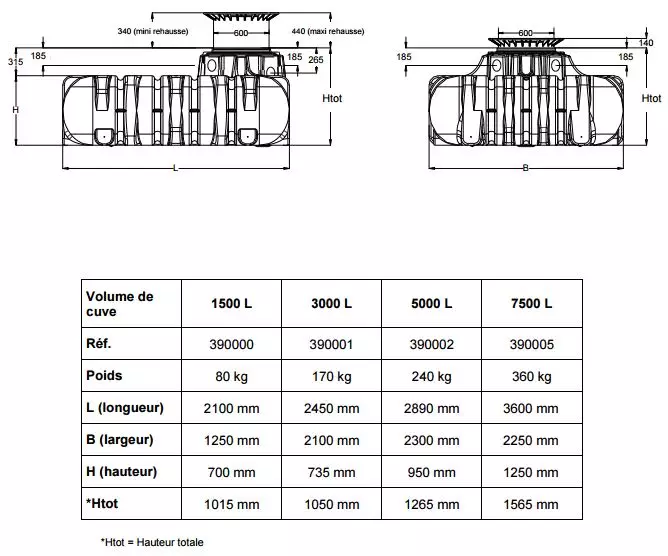

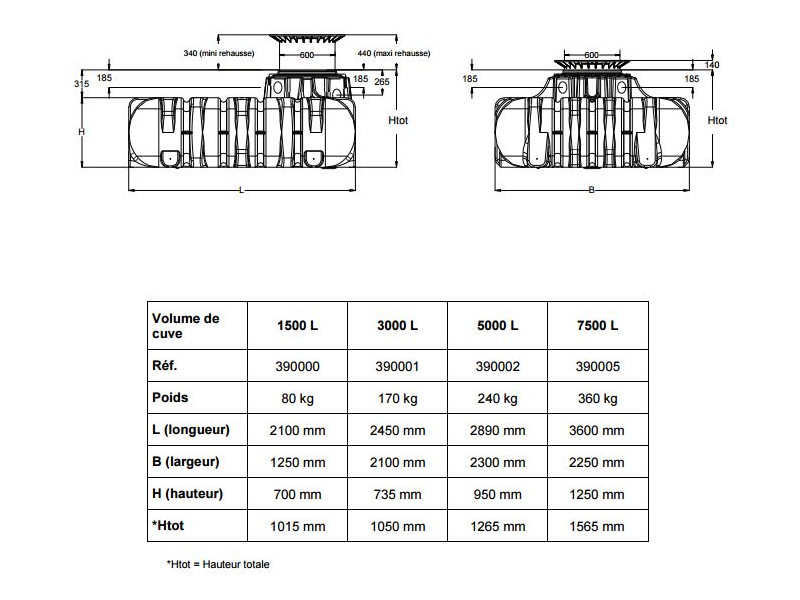

Technical data of the Platinum Extra Flat tank
PLATINE underground tank(s) volumes from 1500 to 15000L delivered with:
- Adjustable mini telescopic extension with pedestrian passage cover (total earth height on the tank with dome: 455-655 mm) or vehicle (total earth height on the tank with dome: 755-855 mm)
- Platinum accessories pack n°2 including:
- filter basket (with suspension system),
- overflow siphon,
- stop-rats (anti-pest grid)

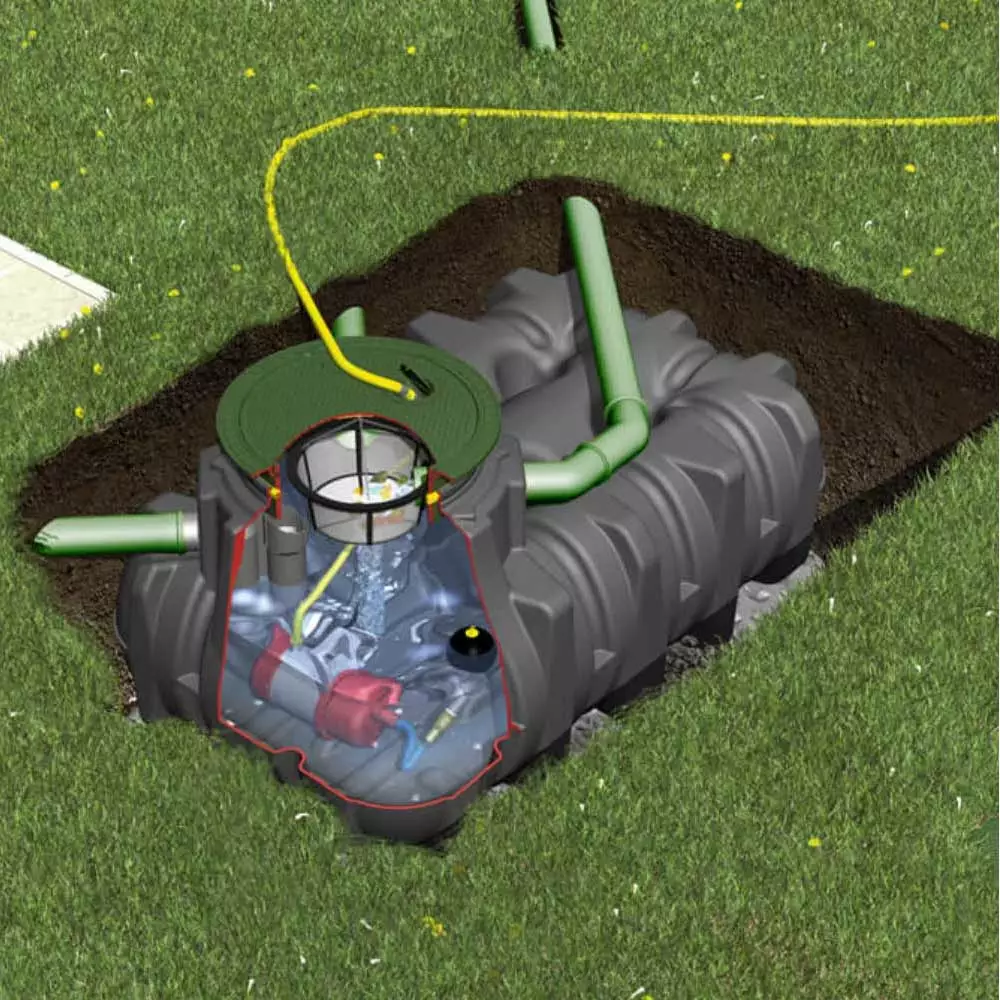

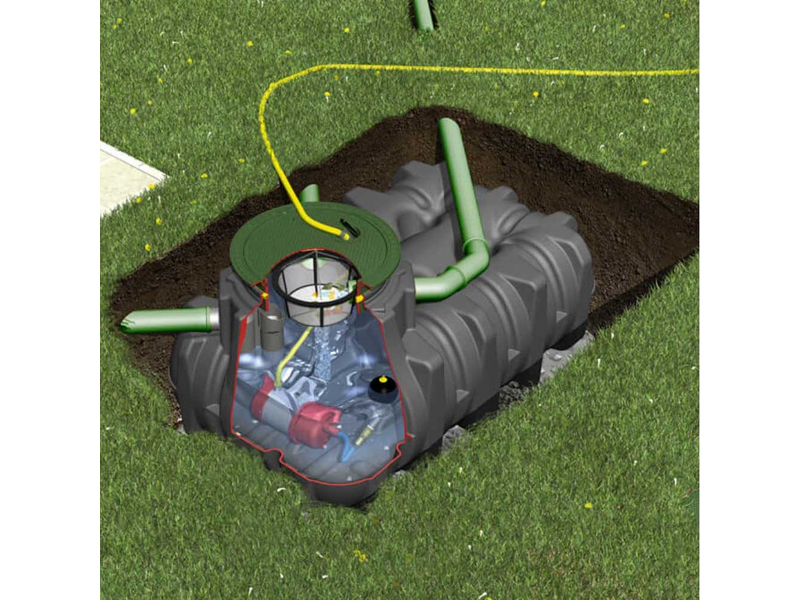

- Jardin Confort technical kit including:
- Integra INOX electric pump with integrated automation kit,
- internal connection manhole,
- external connection manhole,
- drawing set with strainer and float,
- pressure draw hose 10m (25 mm 1")
Internal manhole
The connection manhole serves as a relay: either between the pump and the suction pipe (surface pump), or between the pump and the garden pipe (submerged pump)
Options Details
75 à 85 cm de terre sur la cuve (Ref :371020)
Passage véhicules.
Couvercle Classe B avec sécurité enfants.
Accepte une correction de 5° pour permettre un ajustement au millimètre près avec la surface du terrain.
Couleur : noir
- Filter basket in a separate manhole
- 3000 L
- Outdoor pump (garden)
