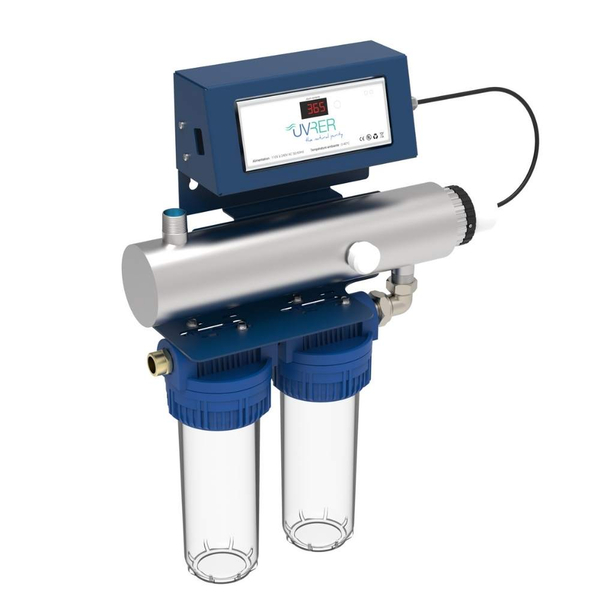

MODUL'EAU station 2 filters - 36W UVc sterilizer - Max flow 1.88 m3/h

MODUL'EAU drinking water station, 2 filters - 36W UVc sterilizer, domestic range

Treating the water with a UV lamp avoids the use of chemicals, and does not demineralise the water!

The set consists of:
 1 UV reactor with CE marking
 1 MCR type UV lamp and its connector.
 1 40x4.5 EPDM gasket and 1 protected quartz sheath.
 1 bag for fixing the electrical plate.
 1 illustrated installation instructions

APPLICATION of UV treatment:

• Potabilization of raw water (boreholes, catchments, wells, etc.)
• Securing rainwater (sanitary use only)
• Securing mains water

PRINCIPLE of UV lamp treatment:

Purely physical potabilization process, associated with filtration destroying micro-organisms likely to cause illness or affect a manufacturing process.
This treatment is carried out by the germicidal effect of UVc rays, eliminating, among other microbes, viruses, bacteria and fungi, while respecting the environment.

FILTERING:

The Modul'eau UVc station, fitted as standard with 2 pre-assembled filter holders, filters sediment and fine sludge before passing through the UVc reactor.

Available in 3 filters version.

Technical characteristics of the MODUL'EAU 2 Filter 36 watt UV stations:

Allowable flow (40 mJ/cm² at 98% transmission) 1.88 m³/h

Treatment chamber
UV-C chamber volume 1.6 liters
Total weight device packaged 4.2 Kg
Inlet / Outlet 3/4'' no gas
Material 316L stainless steel
Operating pressure 4 bar
Max pressure 6 bar
Min / max water temperature 0 - 40°C

Electrical turntable
Weight < 1 Kg
Electrical power consumed 38 Wh
Protection Fuse 1 A
Supply voltage 220-230V AC –50Hz
Ambient temperature 0 - 30°C

UV-C lamp
Number of lamp 1
Reference PLL lamp 36W
12W UV-C Germicidal Power
Lamp life 9000 hours

• 316 L stainless steel treatment chamber
• Max pressure 6 bar
• Water temperature 0 to 40°C
• Manhole for control cell
• Connection in opposite axis
• Domed bottom quartz sheath
• Fixing plate with integrated electrical box
• Single-ended lamp 9,000 h
• electronic ballast
• Electromechanical hour meter
• 220 V+E power cord
• Integrated filter holders (optional cartridges)

ADVANTAGES of this UV treatment system:

- Integrated filtration adaptable according to the quality of the water to be treated.
- Low maintenance cost limited to changing the lamp and filter cartridges
- Reliability and safety of use:

• Meets the strictest sizing and design standards for complete disinfection of water intended for human consumption (according to the Ministerial Circular for Health of January 19, 1987).
• Without side effects
• Mineral salt content retained
• No chemical residual product generated.

- Optimized packaging

CE, ACS certified, and equipped with a high quality PHILIPS UV lamp. French made

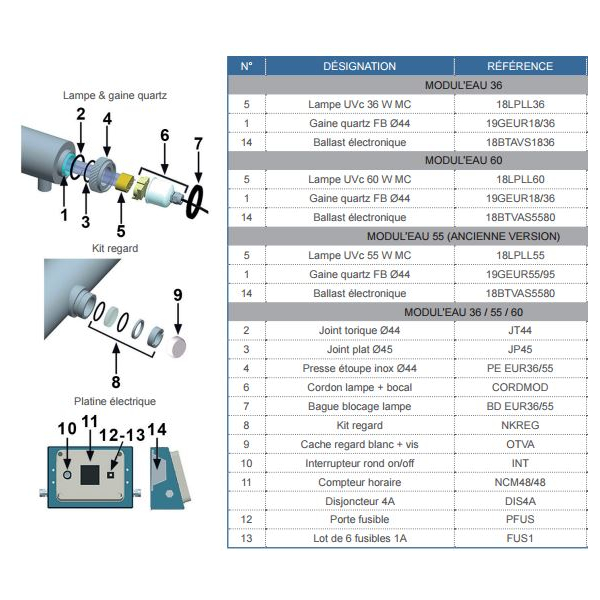

Consumables and spare parts for Station Modul'eau:

• UVc lamp: 9,000 hours
• Seal: 9,000 hours
• Sheath: 5 years

We work in close collaboration with the manufacturer to provide you with advice and validate your approach. We strongly invite you to get in touch with us, in order to check the feasibility of your project and the correct sizing of your installation.
