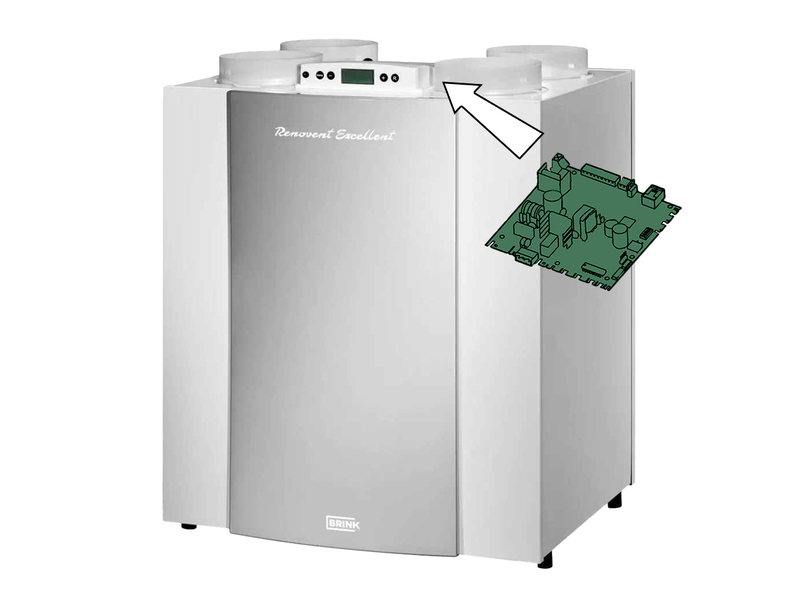

DOUBLE FLOW VENTILATION RENOVENT EXCELLENT 300 FROM BRINK CLIMATE SYSTEMS
The double flow CMV RENOVENT EXCELLENT 300 is the previous model to the new current FLAIR 325 model .
If the FLAIR 325 ventilation has improved technical characteristics on the criteria of motor consumption, efficiency, acoustics... the Renovent Excellent 300 remains a very efficient machine.
It is a model that remains highly appreciated by installers and our customers.
The RENOVENT EXCELLENT 300 is also still PHI certified (for passive houses) .
The VMC Renovent Excellent 300 has different nozzle locations from the VMC Flair 325.
Depending on the installation configurations, it will be much easier to install. A simpler installation is less expensive, less cumbersome because it requires less network and less bends. The overall performance of the installation is thus optimized.
The Renovent Excellent 300 ventilation box is recommended for individual housing or individual houses from 100 to 180 m². Beyond that or to overventilate at night, it will be necessary to focus on the Renovent Excellent 400 or 450 models.
This double flow CMV is equipped with a constant flow fan technology (System patented by Brink) which was a very important development in the early 2010s. Indeed, unlike the regulated flow machines that we find Still today, balancing has become much simpler to perform and the flow set point is maintained over time despite clogging of the filters. The fans are reaction (vanes inclined backwards).
The high-efficiency heat exchanger is counter-current and cross-flow made of plastic material. An enthalpy exchanger is also available as an option for the recovery of humidity in winter. The device is also equipped with an automatic bypass to switch directly to the supply of outside air when it is cooler than the indoor air in summer.
We attach great importance to managing the protection of the exchanger against freezing in winter.
In airtight, passive or high altitude houses it is preferable to choose an integrated or external electric pre-heater or a Canadian well. Anti-freeze protection by reducing the blowing rate unbalances the incoming and outgoing air flows, puts the house under depression, reduces the efficiency of the exchanger and, for less airtight houses, causes cold air to enter. The Rénovent Excellent 300 is fitted as standard with an electric pre-heater which, despite its electricity consumption, consumes less energy than a mmachine without pre-heater.
In the quality approach established by the manufacturer, we offer a HDPE network with seals and fixing accessories specially designed to achieve the flow rates required at the outlets and checked during commissioning and to guarantee high thermal and acoustic performance. .
In line with these high-quality products, our team systematically validates your installation, which we optimize for you. Send us your request by clicking on the link below. A technician will call you back to learn about your project, advise you and carry out your costing for free.
BRINK ventilation units are guaranteed for 5 years*
*Subject to commissioning by an authorized Brink technician
ADVANTAGES OF THE RENOVENT EXCELLENT 300:
We have been marketing the RENOVENT Excellent 300 double flow CMV since 2015 and the beginning of our partnership with BRINK for the following advantages that it represented at that time and still today:
- High technical performance both in terms of efficiency (84% according to PassivHaus Institute, 90% according to the current NF certification), very low motor consumption (0.26 Wh/m3 according to the PassivHaus Institute)
- Innovative technology of constant flow fan motors using Brink's patented technology making the installation of the double flow CMV much more accessible to self-builders.
- A machine with a very pleasant silent operation .
- The modularity of the connections (above/below) on the machine simplifying the installation of the machine and the rigid insulated network (fewer bends and less bulk for the least favorable situations).
TECHNICAL CHARACTERISTICS :
Nominal / max flow | 50 / 300 m3/h - For accommodation up to 450 m3 | |||||||||||||||||
Fan operation | Constant flow (More detail) | |||||||||||||||||
Certified exchanger efficiency | 84% (PHI certified) | |||||||||||||||||
Fan consumption | 0.26 Wh/m3 (PHI certified) | |||||||||||||||||
Subwoofer acoustics | 47 dB(A) (PHI certified) | |||||||||||||||||
Assembly | Vertical | |||||||||||||||||

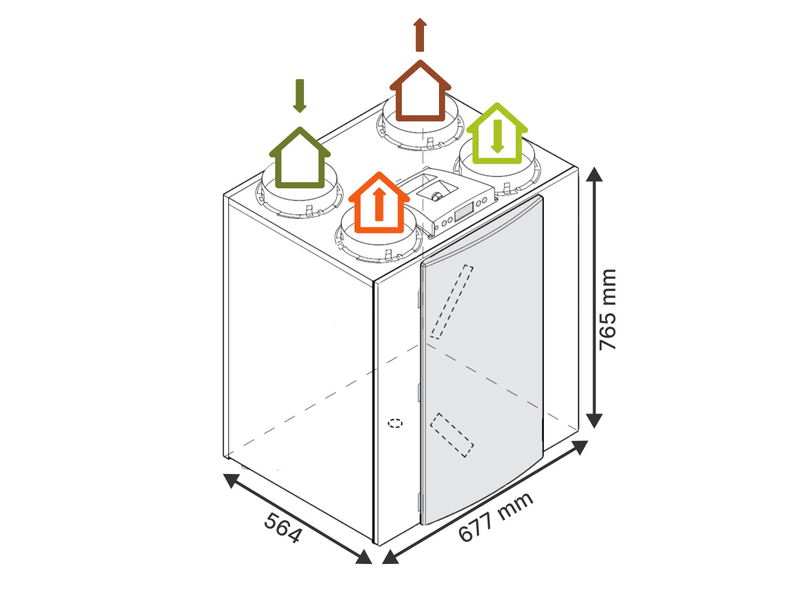

Dimensions (HXLXP) | 765 x 677 x 564mm | |||||||||||||||||
Connection | DN 160 (top / bottom) | |||||||||||||||||
Condensate evacuation | Exit at the bottom | |||||||||||||||||
Filtration | 1x G4 / 1x F7 | |||||||||||||||||
Frost protection | Electric pre-heater as standard | |||||||||||||||||
Regulation | 3 or 4 position selector wired or wireless or Control module with clock | |||||||||||||||||
Option(s) | Enthalpy exchanger / CO2 sensor and humidity sensor on duct / pre and/or post heating | |||||||||||||||||
bypass | Automatic, adjustable | |||||||||||||||||
Material | Thermo-lacquered galvanized steel for the outer casing. Polypropylene (PP) inside. | |||||||||||||||||
Weight | 38kg | |||||||||||||||||
Certificate | PHI | |||||||||||||||||
Guarantee | 2 years by default / 5 years under conditions |
Options Details
The 4 position selector is a wired manual control box connected by an RJ12 cable (included in the kit) with:
Air Control is an electronic regulation box with a weekly clock that can be programmed on demand. This control box allows access to all the machine settings in a remote way (installer and user menu available to read the states, to parameterise them or to solve the errors noticed). The airflow rates can be modulated manually or via the weekly programmable on-demand regulation.
.This radio control kit allows remote control between:
The DN32 wet siphon is a conventional siphon that is installed after the dry siphon and when primed maintains the airtight seal to the wastewater system and protects the electronics from condensate build-up inside the machine.
Dry siphon DN32mm. Brink's dry siphon is equipped with a ball that allows condensate to pass in one direction but does not allow air to pass in the other. This ensures a seal against the waste water system, protection of the machine and optimum machine efficiency without the risk of de-priming.
.The 60% IC filter (G4) protects the fan from the coarsest particles in the indoor air.
In winter, the enthalpy exchanger transfers part of the humidity present in the extracted air of the house to the fresh and dry air blown in. The enthalpy exchanger thus makes it possible to maintain a sufficiently comfortable relative humidity level in the dwelling while continuing to ventilate in an important way.
- Label passive house institute
- A+
- 47.0 dB(A) (PHI certified)
- 2 years - 5 years conditionally
Left version:
- Managing the air flow inside the home is done with the left fittings.
For model 2/2 the left fittings are at the bottom of the VMC.
- The air passage outside the home is managed with the right-hand fittings.
Right version:
- The air passage inside the house is managed with the right-hand fittings.
For model 2/2 the right fittings are at the bottom of the VMC.
- Managing the air flow outside the home is done with the left fittings.
- Between 300 and 450 m3
- Between 450 and 500 m3
- DN 160
