Description of EasyHOME® HYGRO Premium MW & HP hygro-adjustable single-flow ventilation

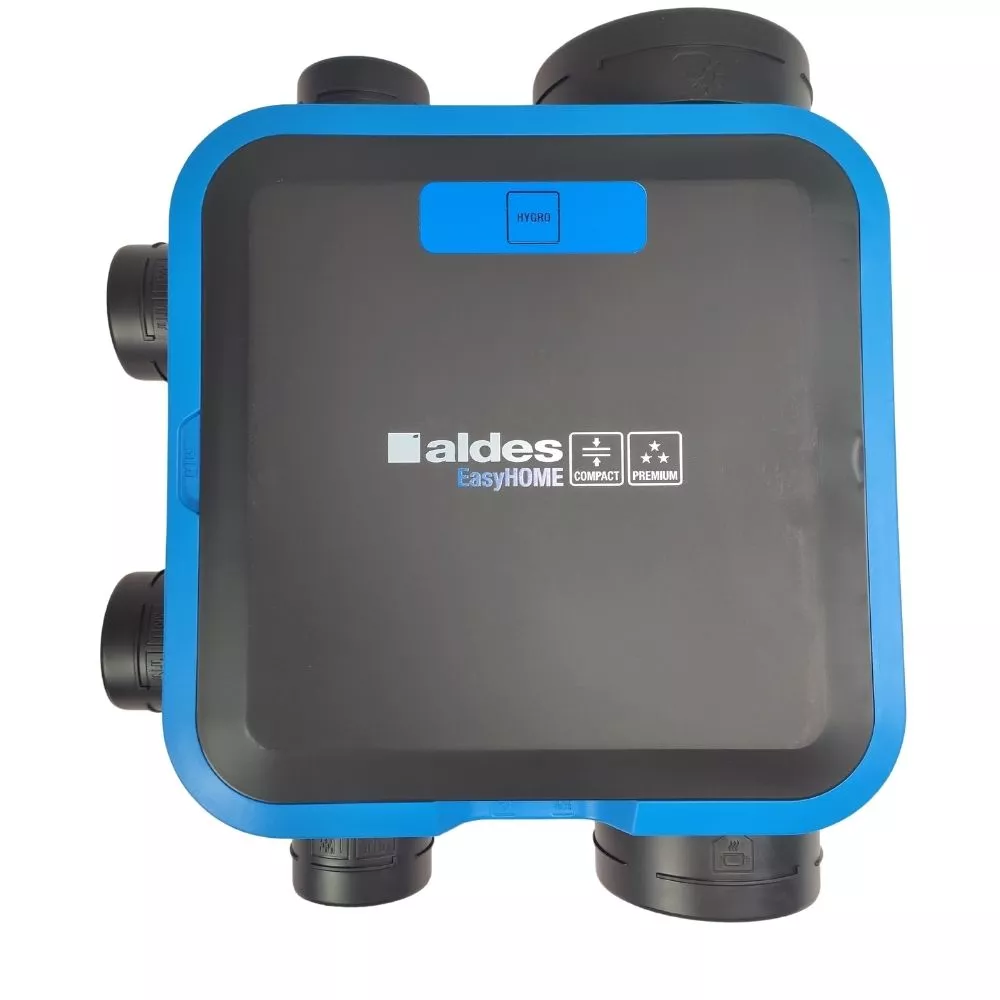

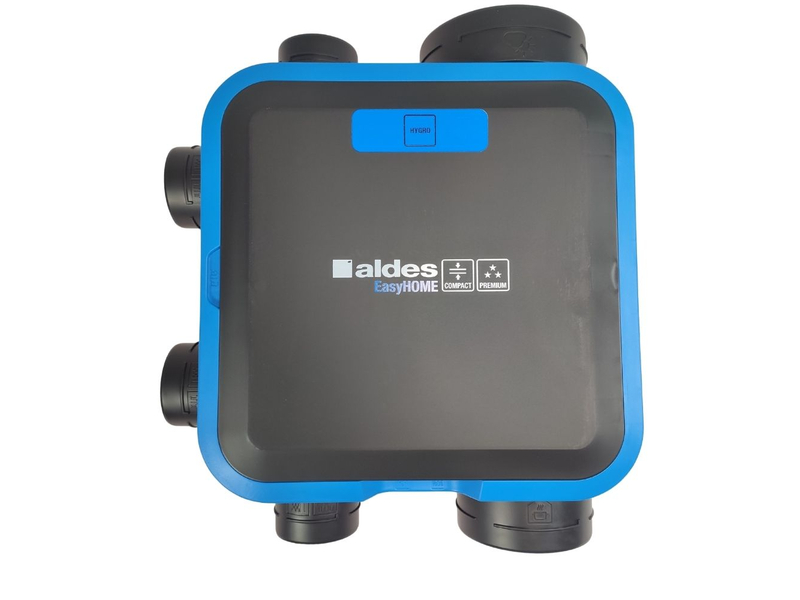

The EasyHOME Hygro COMPACT Premium Micro-Watt (MW) or High Pressure (HP) humidity-controlled single-flow CMV is the flat version of the EasyHOME Hygro Premium model .

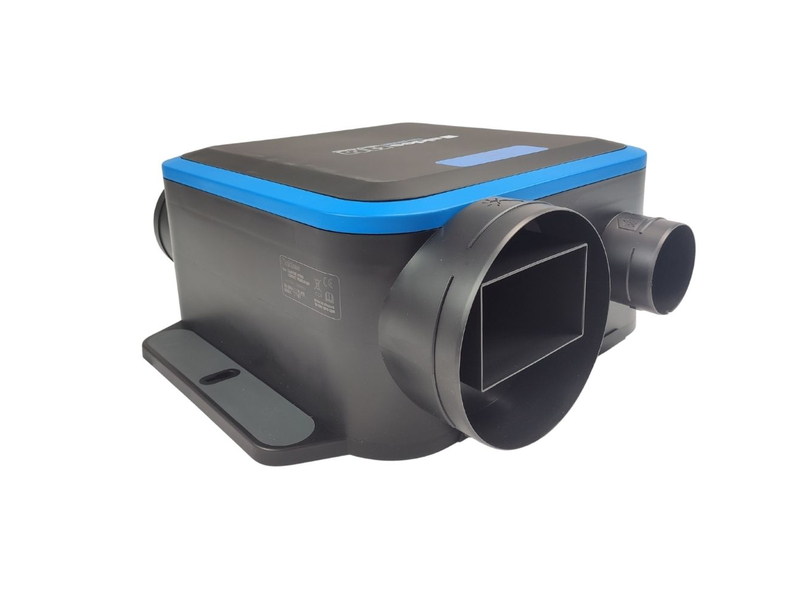

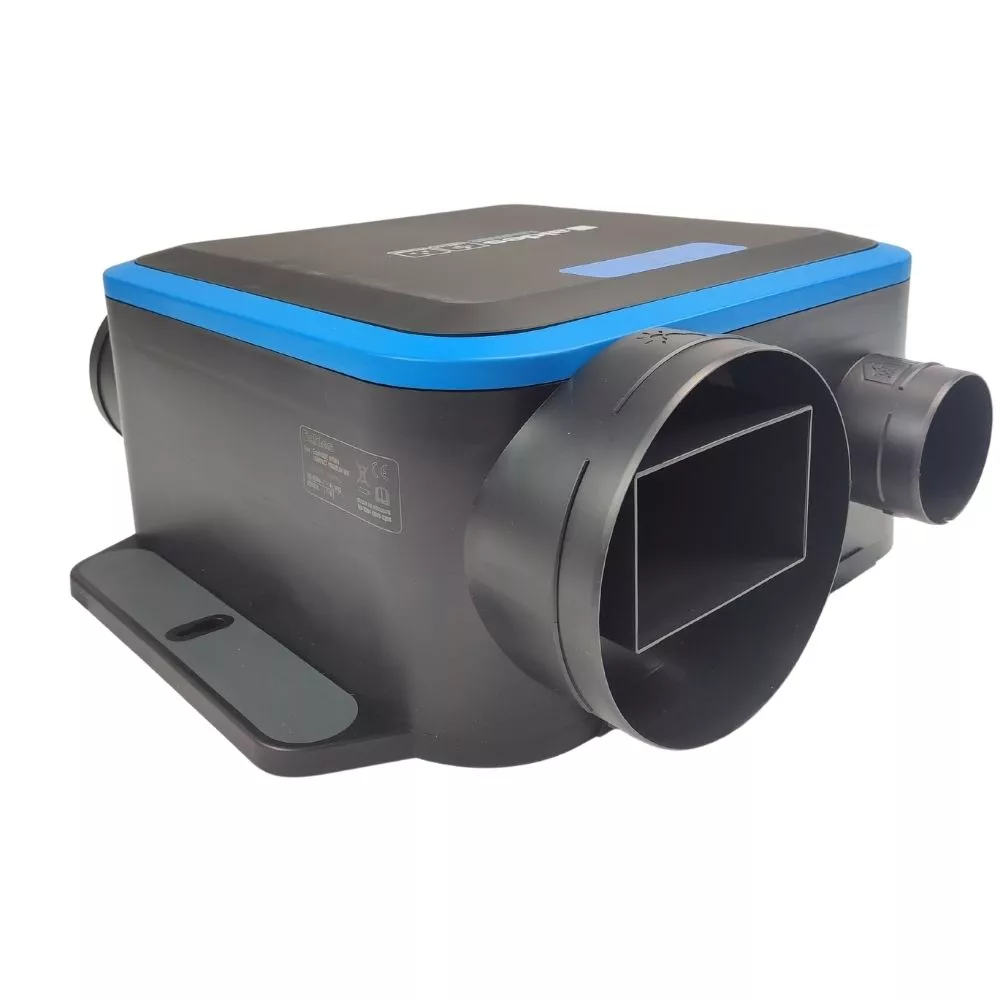

This model is specially designed to be installed in a technical room or cupboard or in a false ceiling thanks to its extra-flat format (thickness less than 19 cm). The box is equipped with anti-vibration pads and is simply installed using 2 fixing screws.

The choice between the 1-speed micro-watt box and the 2-speed High Pressure box is dictated by the length of the networks: the MW box can be used if all the networks are less than 6m otherwise the HP box must be chosen. The HP unit must be put into service using a pressure gauge to check the pressure level at the outlets.

Note that for networks installed in false ceilings or linings, we recommend installing a semi-rigid HDPE network or a flat rigid PVC network. It is mandatory to insulate the network in unheated volume to avoid condensation.

For an F4 type dwelling equipped with a bathroom and a toilet, the HP box will consume more electricity (11 W-Th-C) than the MW box (8.4 W-Th-C).

Advantages

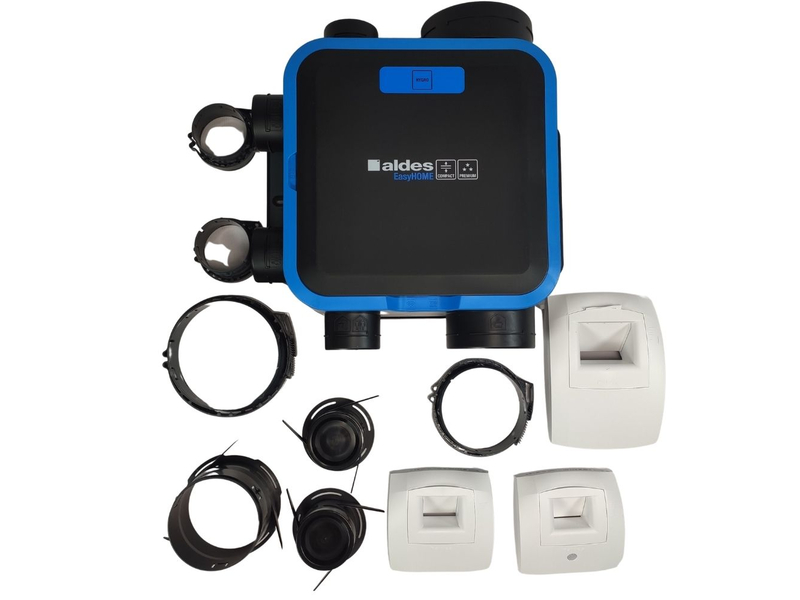

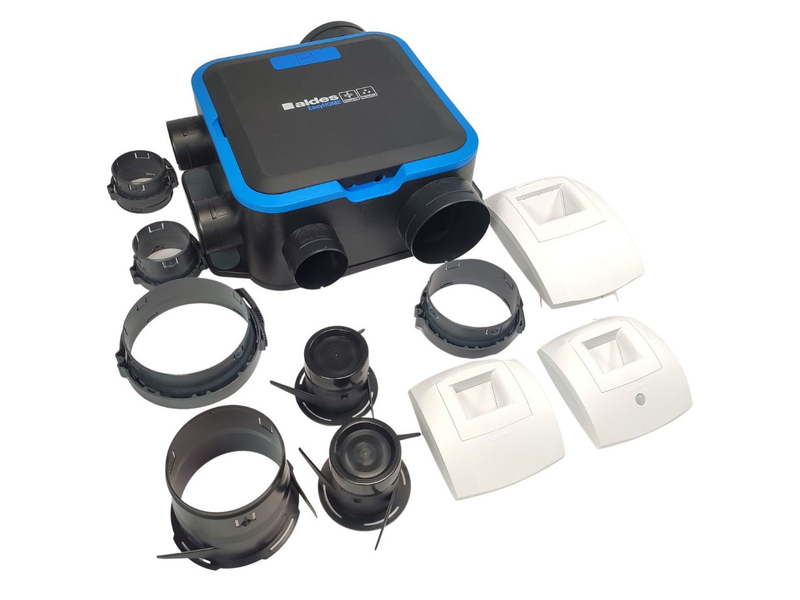

• Ideal for large houses: 1 kitchen and up to 4 connected toilets and possibility of connecting 2 toilets in line on the second connection Ø 125 mm.
• Minimum consumption: from 6.5 W-Th-C.
• Low acoustic level: From 31dB (A).
• Ø 160 mm discharge, compliant with the new hygro regulations.
• Easy installation and maintenance.

Compliance

• CSTB Technical Notice: No. 14.5/17-2266.
• WEEE electrical recyclability
• Eligible for CEEE (energy saving certificates)
• Complies with ErP regulations
• Designed and made in France

Technical characteristics

Overall dimensions and dimensions:

Weight: 3.6kg
