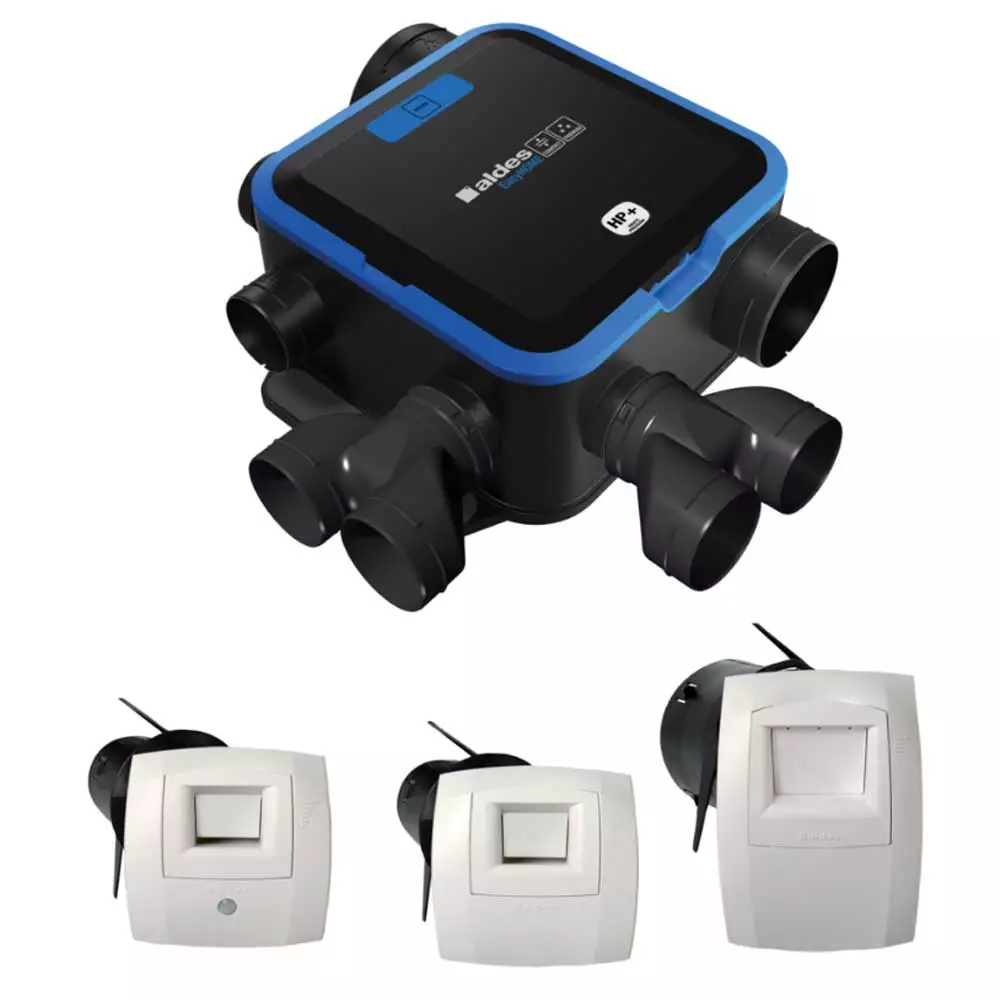

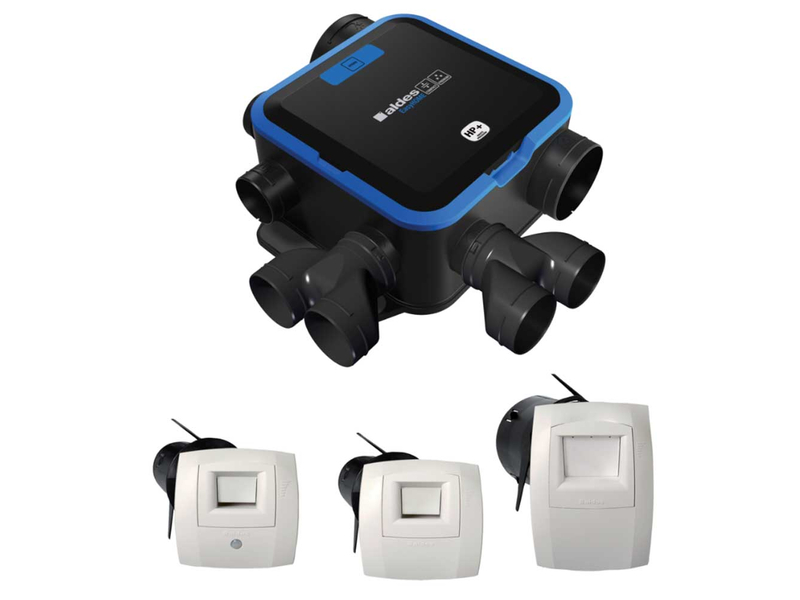

Description of EasyHOME® HYGRO Premium MW & HP hygro-adjustable single-flow ventilation

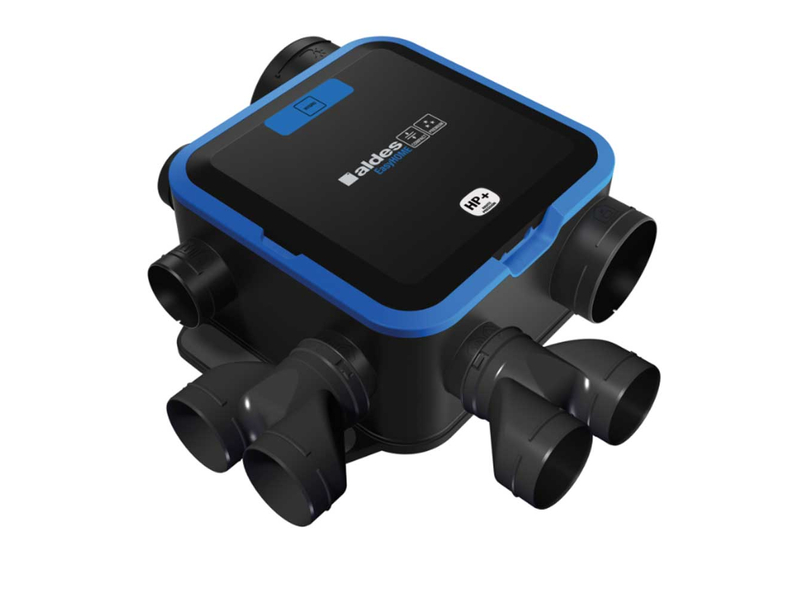

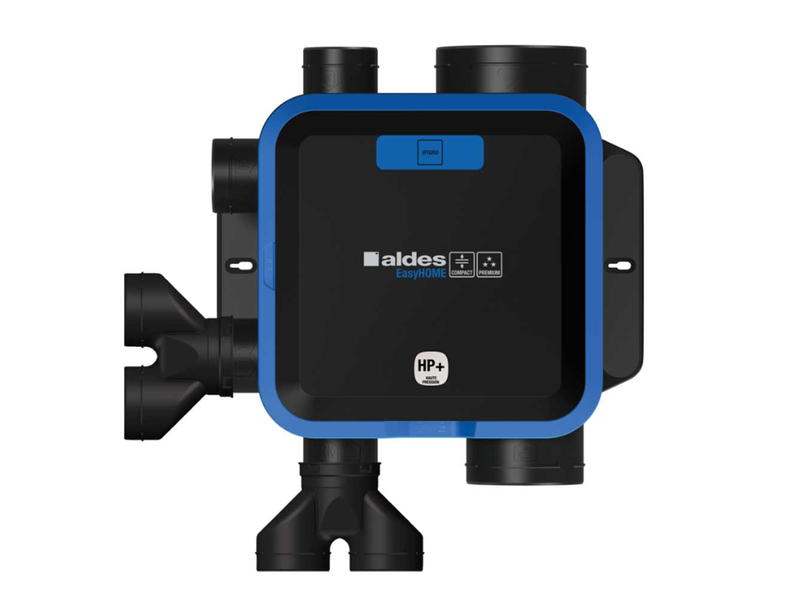

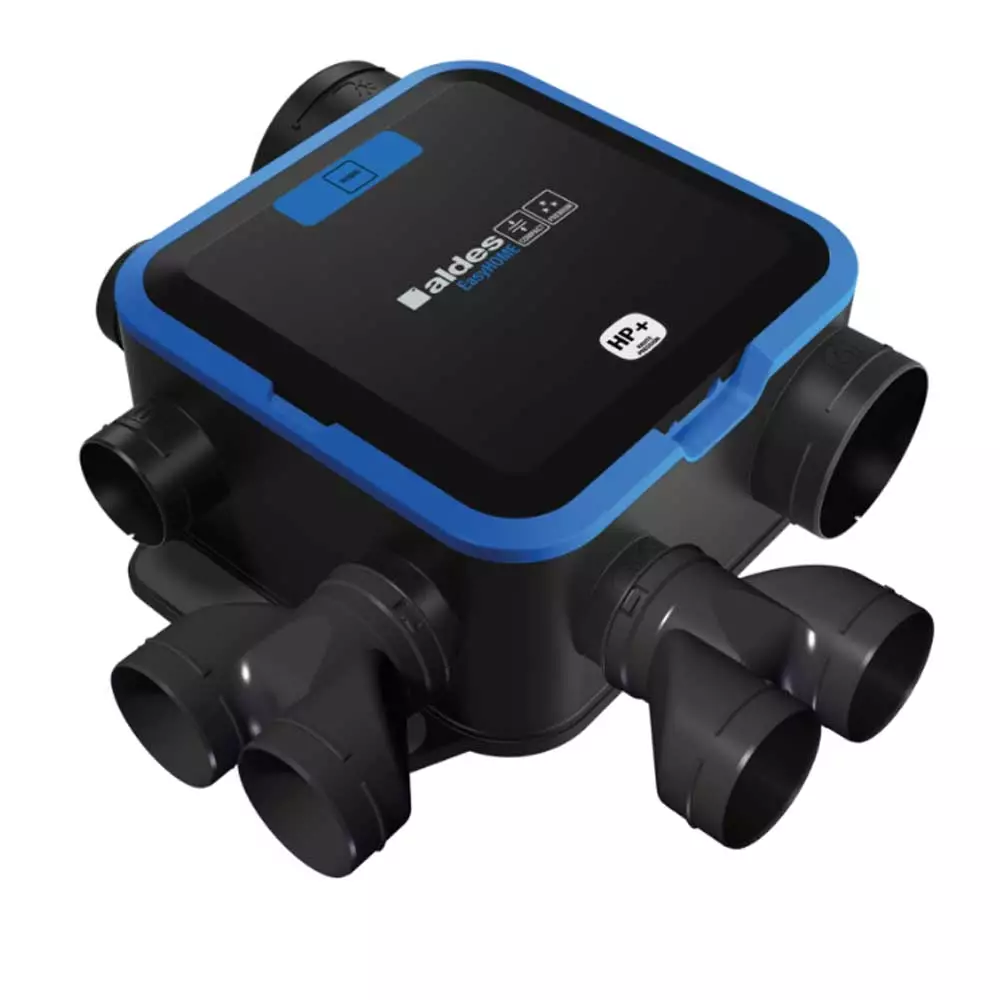

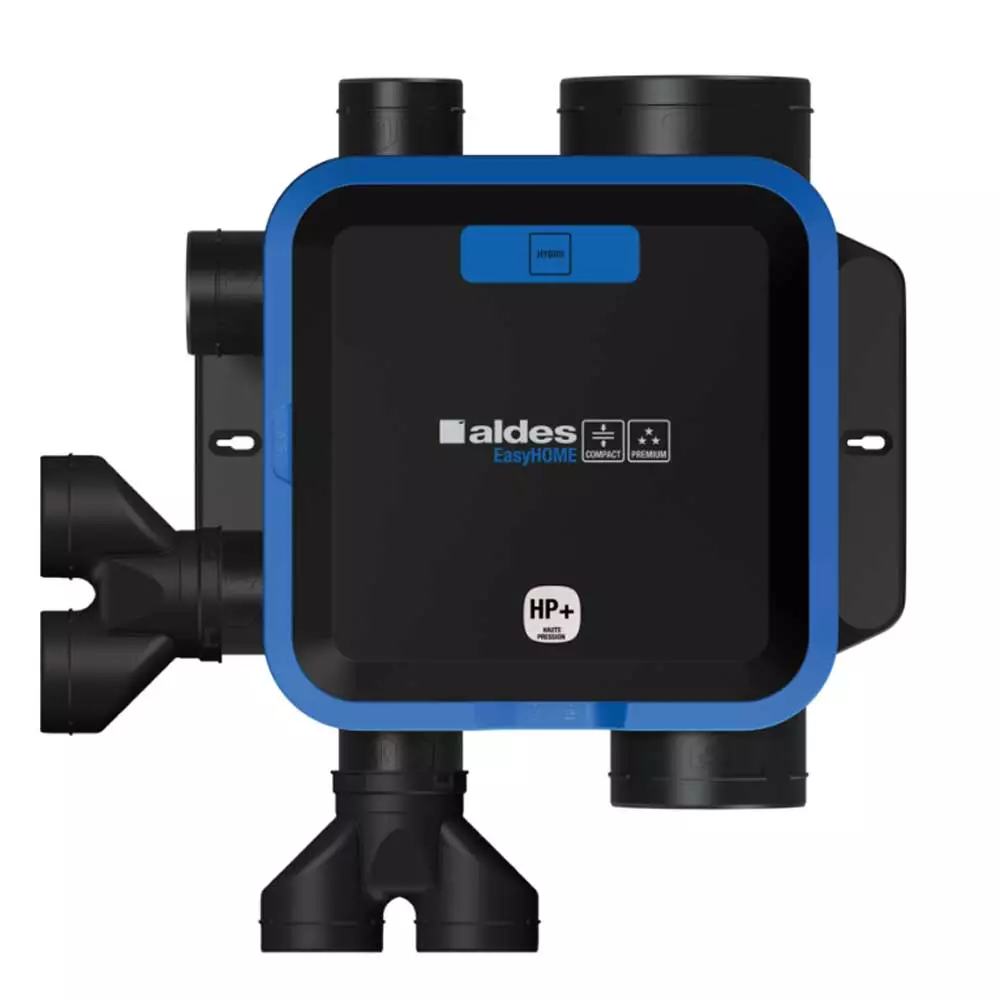

The EasyHOME Hygro COMPACT Premium Micro-Watt (MW) or High Pressure (HP) humidity-controlled single-flow CMV is the flat version of the EasyHOME Hygro Premium model .

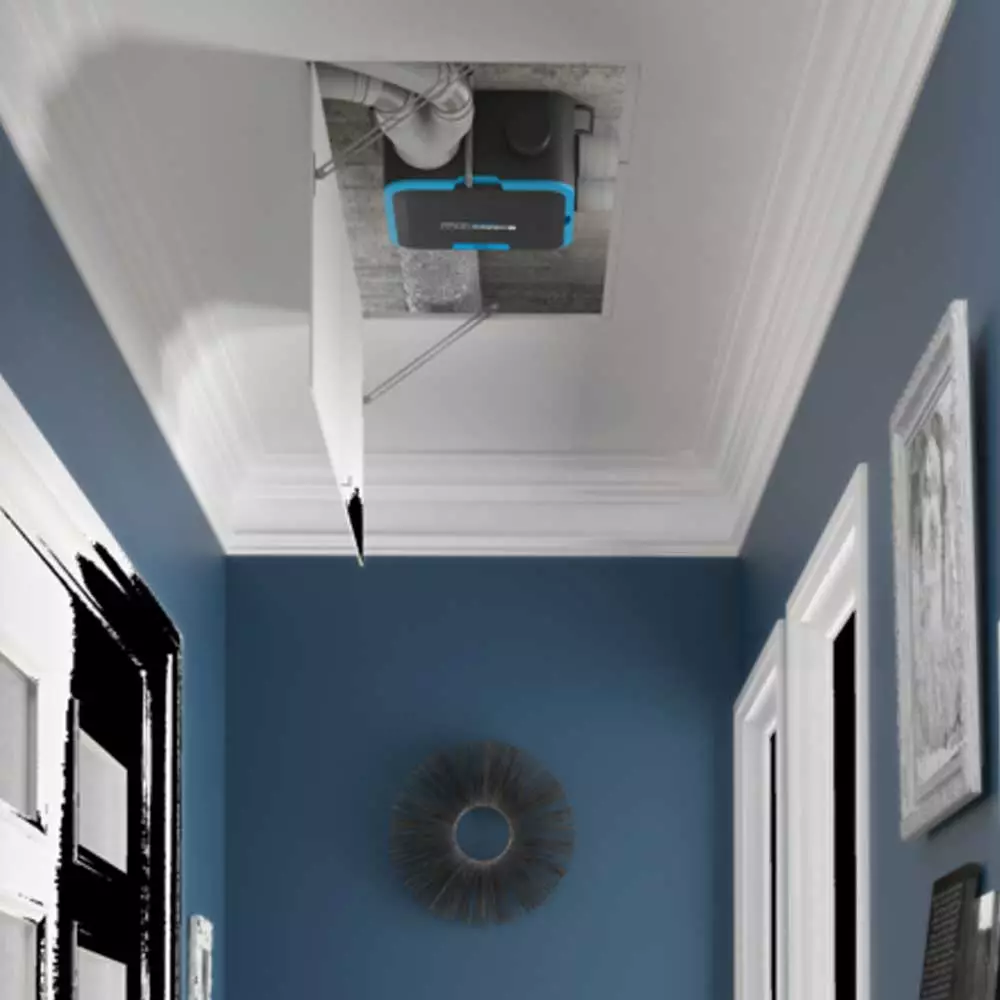

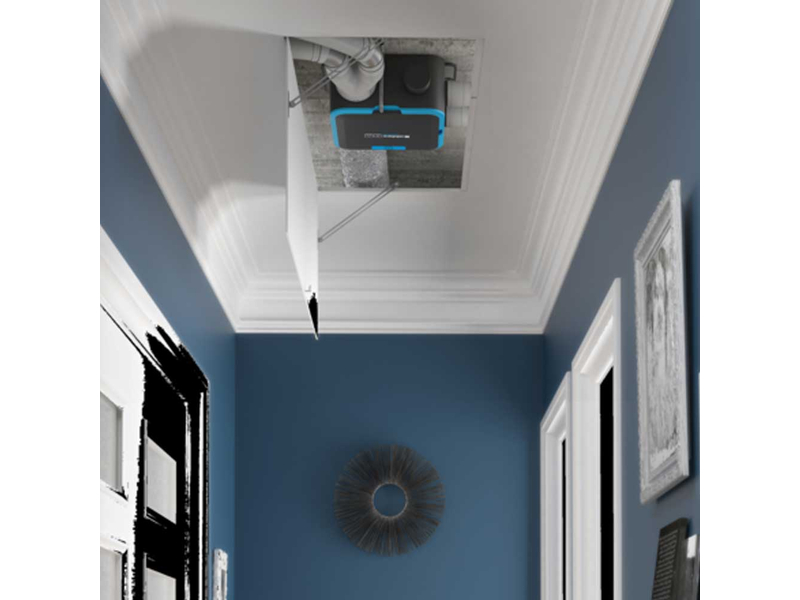

This model is specially designed to be installed in a technical room or cupboard or in a false ceiling thanks to its extra-flat format (thickness less than 19 cm). The box is equipped with anti-vibration pads and is simply installed using 2 fixing screws.
The choice between the 1-speed micro-watt box and the 2-speed High Pressure box is dictated by the length of the networks: the MW box can be used if all the networks are less than 6m otherwise the HP box must be chosen. The HP unit must be put into service using a pressure gauge to check the pressure level at the outlets.
Note that for networks installed in false ceilings or linings, we recommend installing a semi-rigid HDPE network or a flat rigid PVC network. It is mandatory to insulate the network in unheated volume to avoid condensation.
For an F4 type dwelling equipped with a bathroom and a toilet, the HP box will consume more electricity (11 W-Th-C) than the MW box (8.4 W-Th-C).
Advantages
- Ideal for large houses: 1 kitchen and up to 4 connected toilets and possibility of connecting 2 toilets in line on the second connection Ø 125 mm.
- Minimum consumption: from 6.5 W-Th-C.
- Low acoustic level: From 31dB (A).
- Ø 160 mm discharge, compliant with the new hygro regulations.
- Easy installation and maintenance.
Compliance
- CSTB Technical Notice: No. 14.5/17-2266.
- WEEE electrical recyclability
- Eligible for CEEE (energy saving certificates)
- Complies with ErP regulations
- Designed and made in France
Technical characteristics
Overall dimensions and dimensions:
Weight: 3.6kg
- B
- DN 160
