Save 20%
048-BSO-Z90-encastre-ST

Recessed Adjustable Sunshade

Write review
From:
320€88
401€10 Price (without VAT) = 267€40
lacentrale-eco-habitat-durable

5 weeks
Recessed Adjustable Sunshade, Pose de Bs: Encastré
Encastré
✓ Selected
Sous linteau avec une tôle
Select
En façade
Select
BSO Carre de biais
Monobloc sous linteau ou en façade
Select
BSO rond et carré vue de face
Monobloc avec moustiquaire sous linteau ou en façade
Select
Add to favourites Print product details (pdf)
  • Delivered without a closing plate
  • Easy and economical installation
  • To be embedded in a masonry box, a valance, or in external insulation.
Voir la description complète
ManufacturerLacentrale-eco OriginEurope Type of sheet metalAdjustable sunshade without cover plate Slat typeZ90 Largeur maximum (L)4500 Hauteur maximum (H)4500
Don't forget your consumables!
Accepted payment methods
  • — BANK CARD
  • — PayPal Complete Payments
  • — BANK TRANSFER
  • — CHECK
  • — Save as quote
Validation, monitoring and support
Free delivery in France from 2400€ttc
Payment in 4 installments with Paypal
Delivery method
  • Back to top
  • Description
  • Documentation
  • Options details
  • Features
  • Customer reviews
  • Video gallery
Description

The sunshade that integrates perfectly with your house or building facade

recessed adjustable sunshade

Adjustable sunshade designed to be embedded in a masonry box, a woodwork box, a valance or in external insulation.

This model is supplied without a closing plate.

This is the simplest model in the range, supplied with a bracket for wall mounting or direct installation in the lintel. It offers excellent value for money for an external venetian blind.

Very easy to install and very economical. Adjustable sunshade (BSO) with wired or Somfy RTS radio motorization compatible with home automation systems.

600 mm < Width < 4500 mm

500 mm < Height < 4500 mm

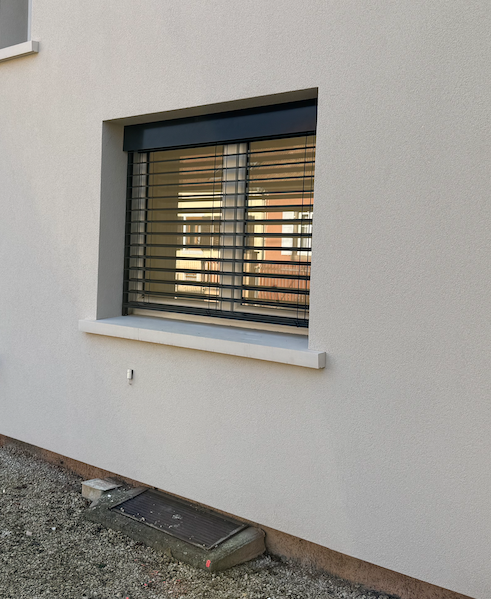

Sunshades integrated into the building's facade

Also called a Venetian blind, the sunshade orients its 90 mm slats to block the sun's rays in summer while maintaining adequate light.

With a built-in external venetian blind, you avoid overheating in the summer while keeping a natural and soft light in your interior.
The adjustable sunshade is the perfect exterior sun protection that combines design and aesthetics.

Save energy by avoiding the need for energy-intensive air conditioning. Your sunshade allows you to control the sun's rays!

The integrated, robust and stylish blind

  • The slats are made of profiled aluminum, 0.42 mm thick and 92.5 mm wide. Unlike blinds with traditionally shaped slats, these blinds can be closed almost completely. The slats are equipped with a sound-absorbing seal to reduce noise when fully closed.
  • Blades covered with a lacquered coating guaranteeing resistance to weathering.
  • The blades are held in place by a double-reinforced polyester fiber tape with aramid (used notably in the manufacture of bulletproof vests) for the textile tapes that support the blades. These materials are highly resistant to stretching and scratches, stabilized by a thermal process, and resistant to UV rays and other atmospheric conditions.
  • Textiles are more durable than cable systems, which corrode over time!

The 90mm blade protects you from the sun and its last weighted blade ensures the overall stability of the structure.

Z90 adjustable sunshade blade profile

The slats of the external venetian blind can be oriented as you wish, at any height.

The installation of sunshade blinds is a response to the Thermal Regulations 2012 and 2020 and especially to the need for free solar gain in winter while protecting against the vertical rays of the sun in summer.

Sun protection is strongly recommended if you do not have "sun visors" above your windows and doors.

Depending on the orientation of the blades, the sunshade can let through up to 90% of the outside light .

In its closed position, a blind does not provide complete darkness in a room. The proposed external venetian blind cannot be considered a secure closure system for insurance purposes, as the slats can be lifted manually.

This defect is a quality because the operation of the blind remains simple and durable, without risk of jamming.

Here is the height of the package and the closing plate that will be delivered, depending on the total height you have indicated in the "height" field:

height of folded blind BSO

The height you specify will be the manufacturing height, therefore the height total of the store.

cross-section of the integration of a recessed external venetian blind

Choice of motorizations for external venetian blinds

You can choose the GEIGER wired motor (a renowned German brand) which comes with the Somfy Uno Smoove switch. With the wired motor, the limit switches are already set (but can be readjusted).

You can also choose the SOMFY RTS or IO radio motor, which will be supplied with a Telis 1 MODULIS remote control. The central dial on the remote control is very convenient for adjusting the blade angle with your thumb.

We recommend the radio motor for larger sizes so you can connect your external venetian blind (BSO) to a wind sensor and automatically raise the blind when you're away. The product is robust, but for widths of 3 to 4 meters, caution is advised.

The color palette caters to all your desires.

Here is the available color palette, which now includes RAL 9005 (a trendy new black that is increasingly replacing RAL 7016 anthracite gray). For a specific RAL color, please contact us, but the additional cost is significant, so it's best to avoid this option.

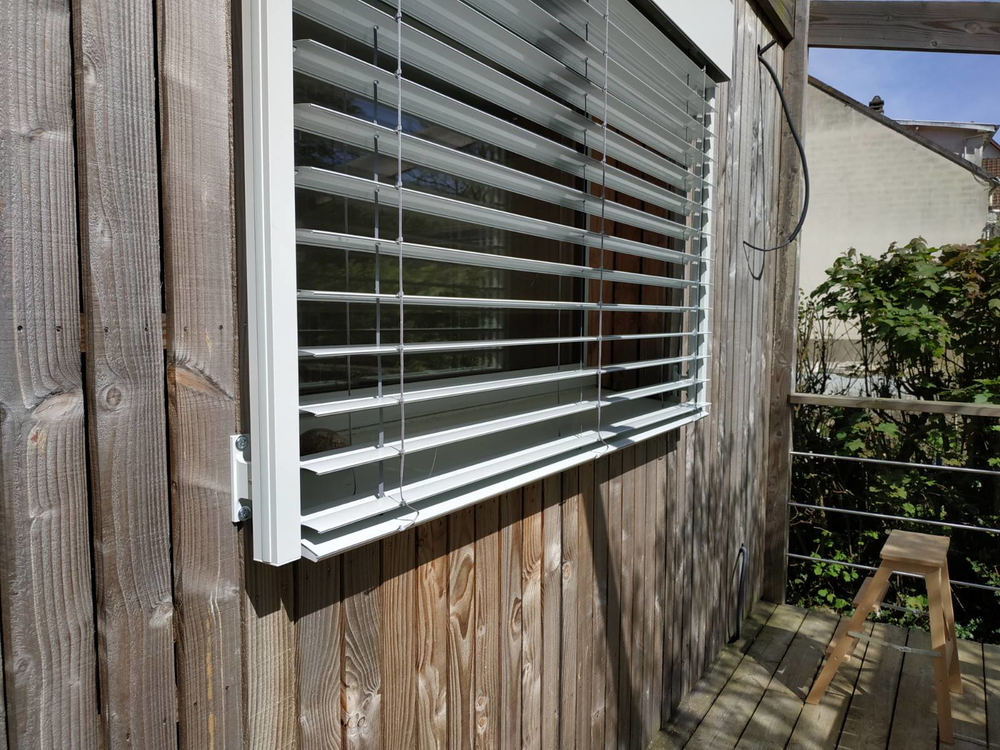

Here are the two ways to fix your tracks: directly into the wall or offset with fixing to the window frame

BSO track fixing

Mounting to the window frame using the connecting bracket should be used if you cannot drill into the wall. We are always available if you would like information on installing these Venetian blinds.

Simply secure the pack of blades with the fixing brackets for quick assembly:

Secure the sheet metal to this bracket with rivets before attaching the bracket and the spring support directly to the lintel. Then, attach the rail containing the motor to the spring support.

Click here to watch the video on how to attach the blade pack to the bracket.

Equerre de support du moteur du brise soleil orientiable BSO Z90

How to install a sunshade in an exterior thermal insulation system

For this type of installation, you should choose a sunshade without a closing panel , as your external venetian blind (BSO) will normally be hidden within the insulation if it's at least 160 mm thick. Be aware that this will inevitably create a thermal bridge. Alternatively, you can place 20 mm of insulation between the bracket and the wall, and choose a BSO with a closing panel .

For installation on a facade in external thermal insulation, the bracket that holds the pack of blades will be fixed to the facade above your window frame.

  • The total height of your custom-ordered adjustable sunshade will be equal to the height of your finished frame/painting/window opening plus the "Height of the box" (see image above).
    Because the total height of the BSO to be ordered is indeed equal to the visible part + the part hidden in the EWI.
    In this configuration, you will need a minimum insulation thickness of 160 mm. (140 mm angle + at least 20 mm of insulation in front on which you will apply the plaster).

  • With the "Wall Mounting Guide": The width of your adjustable sunshade will be equal to the width of your finished picture less 5 mm.
    The "Wall Mounting Guide" must be used, but be careful to choose the correct wall plug to receive the screw.
    You will need to install your external venetian blind after you have redone your plaster.

How to install a motorized adjustable sunshade for a 6m wide sliding door?

For this type of installation, you must choose the sunshade without a closing sheet , because normally your BSO will be recessed into a box with a square bottom.

Generally, such a sliding door is made of aluminum and consists of 3 or 4 equal panels. The goal is to avoid having a central track. Let's first look at how to arrange external venetian blinds (BSO) on such a sliding door:

  • For a 6m wide sliding door (3 tracks) with 3 panels, you will have 3 openings of 2m each. You can then:

    • in 2 BSO by juxtaposing one of 4 m and one of 2 m
    • in 3 BSO by juxtaposing three BSOs of 2 m

  • For a sliding door (2 rails) 6 m wide with 4 leaves of 1.5 m, you will open it from the middle.
    Therefore, we advise you to install a 1.5m external venetian blind on each side and a large 3m central blind.
    This will provide three sunshades for your sliding door.

With a Somfy radio motor, you'll have one remote control per sunshade. We recommend also getting a 4-channel remote to control three or four blinds simultaneously. The blinds will be joined using a double guide, held on a steel tube or flat bar, fixed to the floor and inside the housing. This tube or flat bar can be supplied by Lacentrale-eco.

Expect to pay around one hundred euros per tube, including paint and treatment. This way, you get a quality installation, just like the ones we provide when we sell our external venetian blinds with installation in the Rhône-Alpes region.

Documentation

Notice Installation Z90 (download)

Options Details

C80 blades
Blade shape
C80 blades

C80 blade

S90 blades
Blade shape
S90 blades

S90 blades

Z90 Blades
Blade shape
Z90 Blades

Z90 Blades

Z70 blades
Blade shape
Z70 blades

Z70 blades

C80 BSO blade DUO option
Blade shape
DUO C80 Blades

DUO blade BSO application plan

Choose the C80 DUO blade!

Perfect for offices and meeting rooms, it divides your pack of blades into 1/3 for optimal management of natural light.
The blades are homogenized in the closed position and 1/3 open in the inclined position, letting in a subdued light without dazzling. Complete opening is impossible, preserving partial darkness.

By default, the upper part remains closed (or in an inclined position), but you can choose the lower part on command.

SECURITY
Blade shape
SECURIT / Lmax 2800

The 91 mm steel blades provide increased resistance to impacts and break-ins.

The shape of the blade ensures complete closure of the BSO without any play.

A chain is integrated inside the slides to prevent the slats from being raised manually.

This model is often preferred by professionals.

Recessed Adjustable Sunshade, : Cable with ground tensioner
Slide support
Cable with ground tensioner

Modular fixing cable
Slide support
Modular fixing cable

Please choose from these three options when ordering:

Modular fixing cable (50-90 mm)

Modular fixing cable (50-90 mm)

Modular fixing cable (87-127 mm)

Modular fixing cable (87-127 mm)

Modular fixing cable (125-165 mm)

Modular fixing cable (125-165 mm)

Cable fixing with angle bracket
Slide support
Cable fixing with angle bracket

Please choose from these six options when ordering:

Cable fixing with angle (10-36 mm)

Cable fixing with angle (15-36 mm)

Cable fixing with angle (29-50 mm)

Cable fixing with angle (29-50 mm)

Cable fixing with angle (55-76 mm)

Cable fixing with angle (55-76 mm)

Cable fixing with angle (83-104 mm)

Cable fixing with angle (83-104 mm)

Cable fixing with angle (111-132 mm)

Cable fixing with angle (111-132 mm)

Cable fixing with angle (139-160 mm)

Cable fixing with angle (139-160 mm)

Recessed Adjustable Sunshade, : 20x20 mm slides fixed to the wall
Slide support
20x20 mm slides fixed to the wall

(X If L=3.3m, and if 4.6 THEN = 0)

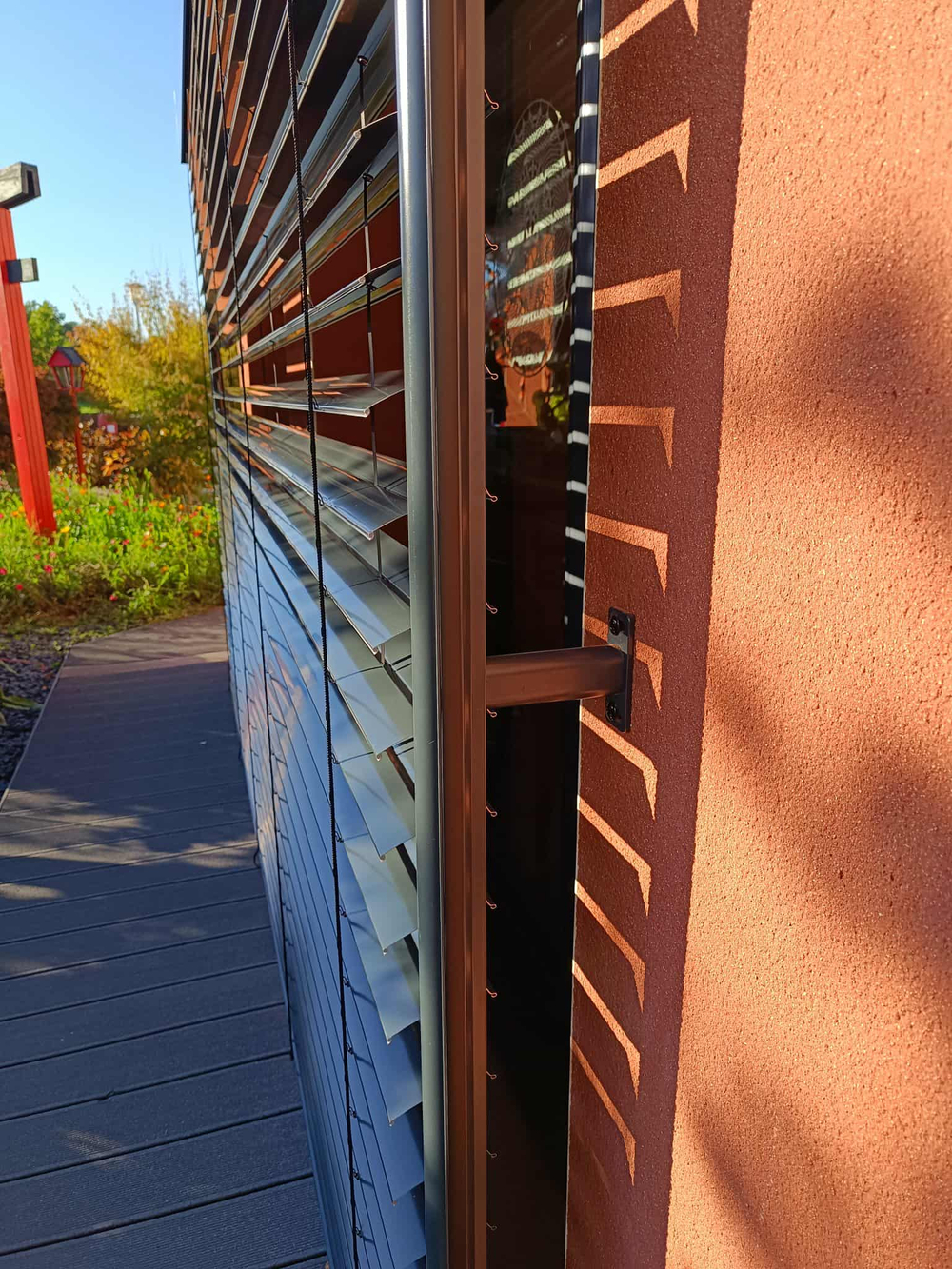

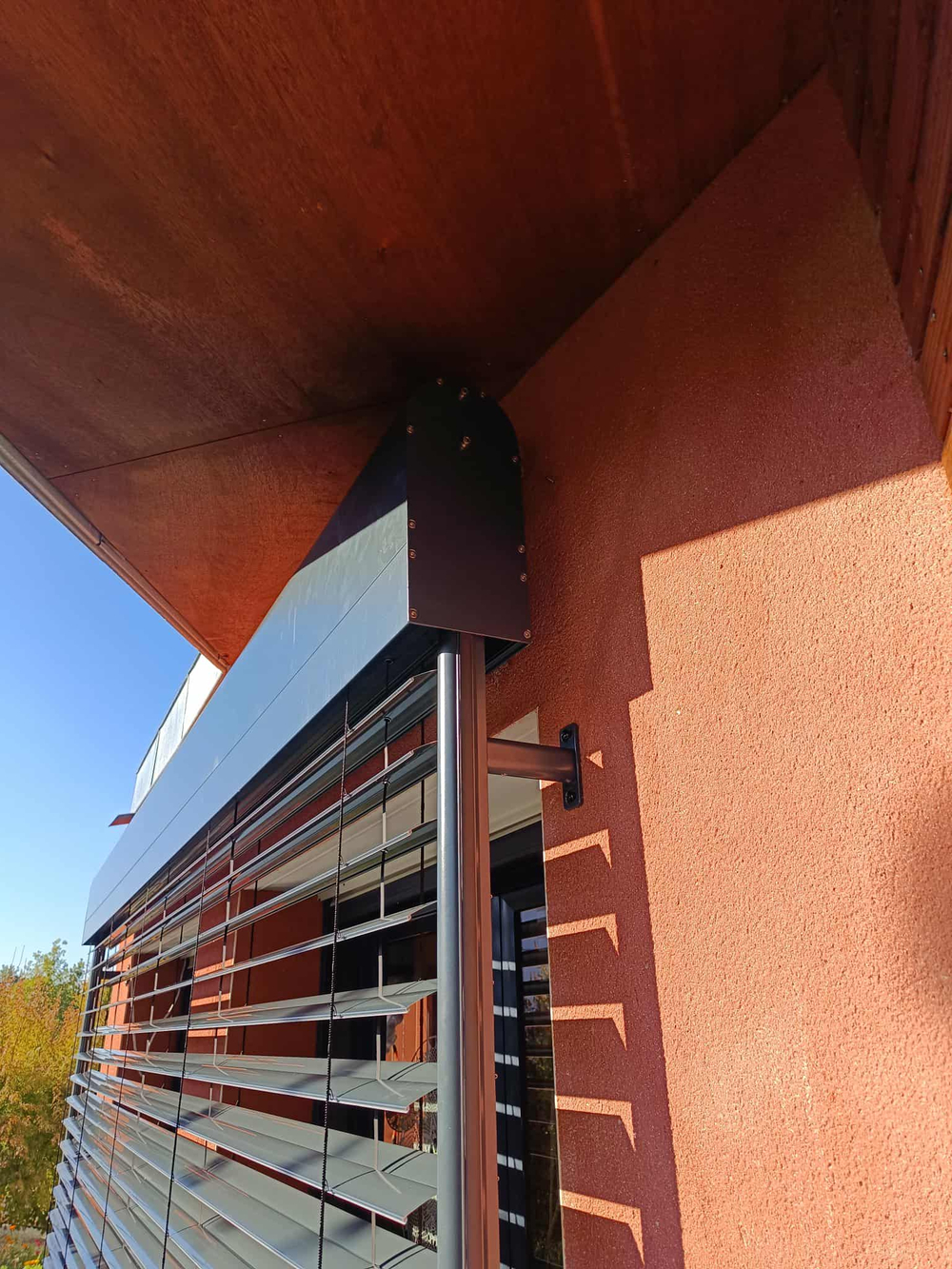

Recessed Adjustable Sunshade, : 20x20 mm fixed slides offset by (50-70 mm)
Slide support
20x20 mm fixed slides offset by (50-70 mm)

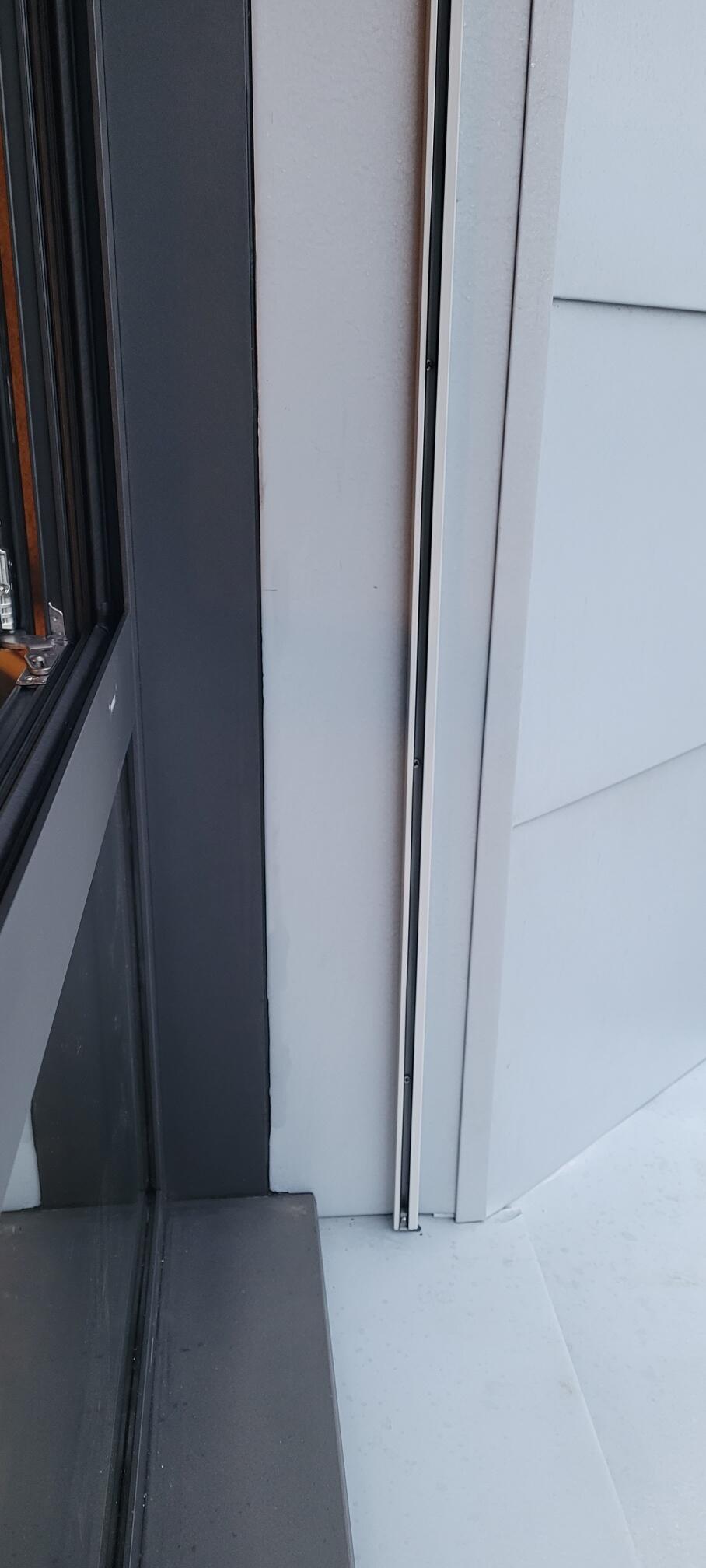

BSO slide in the plaster
Slide support
20x20 mm slides in plaster

The manufacturing width does not take into account the slides which will be embedded in your coating or insulation.

If you have 1000 between coated (finished picture) then the slides will be in addition to this dimension.

The female angle bracket to be recessed into the wall is 27mm deep, so you should make a groove in the masonry panel, place this angle bracket, then clip the real slide into it.

The coating will stop flush with the first corner.

SELF-SUPPORTED BSO with slides (39.1x20 mm)
Slide support
SELF-SUPPORTED BSO with slides (39.1x20 mm)

With this type of slide, the manufacturing height given to the manufacturer will be 22 mm smaller than the height under lintel indicated , because the size of the system must be taken into account in the total manufacturing height.

Max L 2.5, but possibility of making 3m with stirrup to fix to the lintel in the middle to support the BSO.

self-supporting slide cut

self-supporting slide

Recessed Adjustable Sunshade, : BSO SECURIT non-retractable with chain in the slides
Slide support
BSO SECURIT non-retractable with chain in the slides

Maximum surface area 8m² (please calculate your surface area)
Somfy RTS motor only in motorization. (Please select the Somfy RTS motor. During manufacturing, the SOMFY WT Protect motor will be delivered assembled)

Blade Colors: (Please select only these colors)

RAL 9006 Silver
RAL 7016 Anthracite
RAL 9007 Aluminum Silver
DB703 Dark Pearl Grey
7048 Pearl Gray
RAL 9010 White
Others on consultation

What height would you like to indicate?
Height under the polystyrene box

Polystyrene tunnel box for external venetian blinds

Order an additional polystyrene tunnel box for recessed blinds.

Crank
Motorisation
Without motor with rod (max 9m²)

Here is the rod system that will need to be fixed to the back of your BSO on the bracket or valance.

You can also pass the winch square through your window or wall. Dimensions to be indicated after ordering.

BSO with detachable crank

Manual BSO with external rod

Manual BSO with interior rod top view

GEIGER engine
Motorisation
GEIGER GJ56 wired + Smoove Uno WT 5P switch

Product reference: 229025 -

The Geiger motor is a high-quality wired motor for mechanical limit switches.

It comes with the Smoove Uno WT 5P switch which allows the BSO to be raised and lowered.

By pressing the bottom button, the BSO lowers the closed slats vertically to the bottom. By pressing the top button, the BSO raises the slats horizontally to the top.

By pressing the buttons you can adjust the blades as you wish, to any height you want.

The Geiger motor is a high-quality wired motor for mechanical limit switches.

Notice Geiger (download)

Notice Smoove Uno WT (download)

Geiger counter wind kit
Motorisation
Wired GEIGER GJ56 + Smoove Uno IB switch + Eolis WT wind sensor anemometer

Smoove IB+ switch sold with the Somfy Soliris wired wind/sun sensor

Notice moteur Geiger (download)

Notice Smoove Uno IB+ (download)

BSO with slim IO receiver
Motorisation
IO radio with IO SLIM receiver on GEIGER GJ56 engine + Situo VAR Pure II remote control

The BSO Variation Io 1811131 receiver will be connected between the motor and the electrical supply.

The Hirschmann socket is also supplied for placement on the back of the BSO.

This receiver is used to control your bso with the Somfy IO remote control which is supplied and included in the price of the BSO, and adjusts the opening of the slats as you wish.

This receiver is compatible with the Tahoma switch.

Notice récepteur Io Slim BSO (download)

Situo 1 Variation IO pure II remote control
Motorisation
IO radio + Situo VAR Pure II remote control

SOMFY IO radio motor with Situo variation 1 IO Pure II remote control, to vary the orientation of the slats intuitively.

Démarrage rapide - Notice moteur Somfy IO J4 (download)

Notice moteur Somfy IO J4 (download)

Notice Situo var Pure II (download)

Recessed Adjustable Sunshade, : Radio ELERO SOLAIRE
Motorisation
Radio ELERO SOLAIRE

This set is composed of:

  • JA04 Soft DC motor 4Nm at 8m²
  • Combio-868 JA DC 10Nm receiver
  • DC Solar Energy Unit
  • Quickconnect, IP65
  • SoloTel2 remote control (1 channel)

Récepteur Radio COMBIO-868 Elero (download)

Télécommande SoloTel2 (EN) (download)

Recessed Adjustable Sunshade, Remote: Situo 1 IO var Pure
Remote
Situo 1 IO var Pure

ref. 1811634

Notice Situo var Pure II (download)

Recessed Adjustable Sunshade, Remote: Situo 1 IO var Iron
Remote
Situo 1 IO var Iron

ref. 1811635

Notice Situo var Pure II (download)

Recessed Adjustable Sunshade, Remote: Situo 5 IO var A/M Pure
Remote
Situo 5 IO var A/M Pure

ref. 1811636

Notice Situo var Pure II (download)

Recessed Adjustable Sunshade, Remote: Situo 5 IO var A/M Iron
Remote
Situo 5 IO var A/M Iron

ref. 1811637

Notice Situo var Pure II (download)

Extended color chart
Blade color
Extended color chart

Specify the shade from the expanded color chart in the 'where to install' option or in the notes section once the order has been validated.

Extended color chart
Frame color
Extended color chart

Specify the shade from the expanded color chart in the 'where to install' option or in the notes section once the order has been validated.

Eolis WireFree Somfy
Additional sensors and remote controls
Eolis WireFree IO- Two-way wind sensor for facade (battery powered)

The Eolis WireFree Io anemometer is a sensor that measures wind speed continuously. This data is transmitted to your home automation system, which analyzes it according to the parameters you have configured.

For example, if the wind speed exceeds a certain threshold, the system can be programmed to automatically close your sunshades to preserve them.

Using a home automation center, an anemometer is sufficient for all your BSOs.

Features
Manufacturer
Lacentrale-eco
Origin
Europe
Guarantee
  • 2 years warranty
Fixing
  • Fixed
Pose de Bs
Encastré
Type of sheet metal
Adjustable sunshade without cover plate
Slat type
  • Z90
Largeur maximum (L)
4500
Hauteur maximum (H)
4500
Résistance au vent
  • Classe 1 - 30 km / h ,
  • Classe 2 - 40 km / h ,
  • Classe 3 - 45 km / h ,
  • Classe 4 - 60 km / h
Type of control (shutter)
  • Moteur filaire GIEGER ,
  • SOMFY IO radio
Find similar

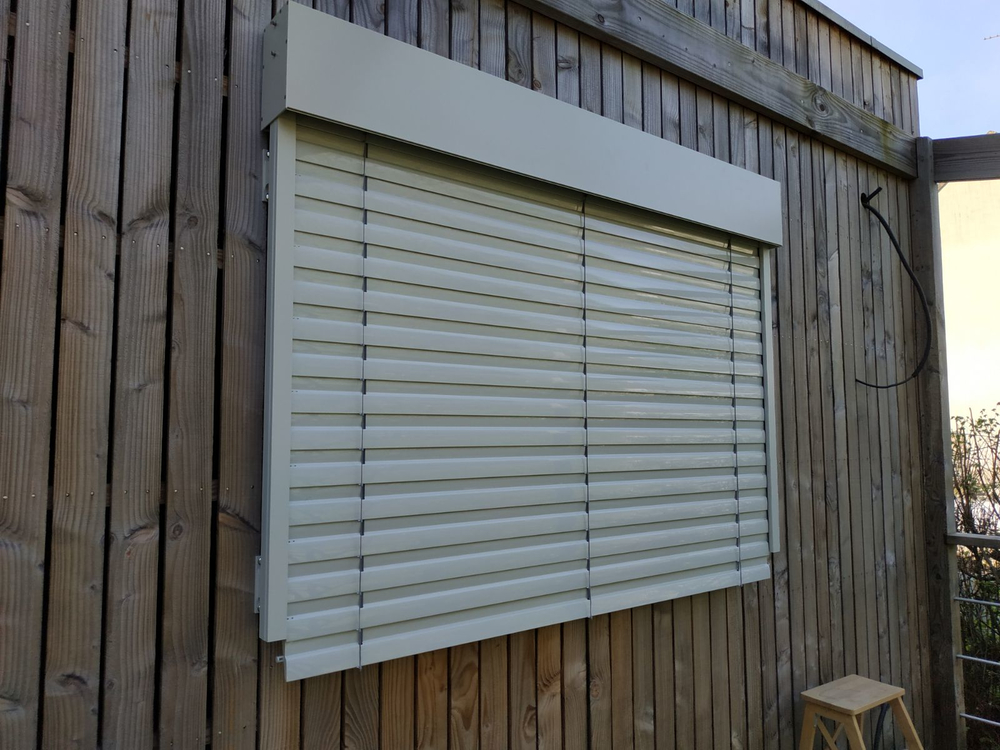

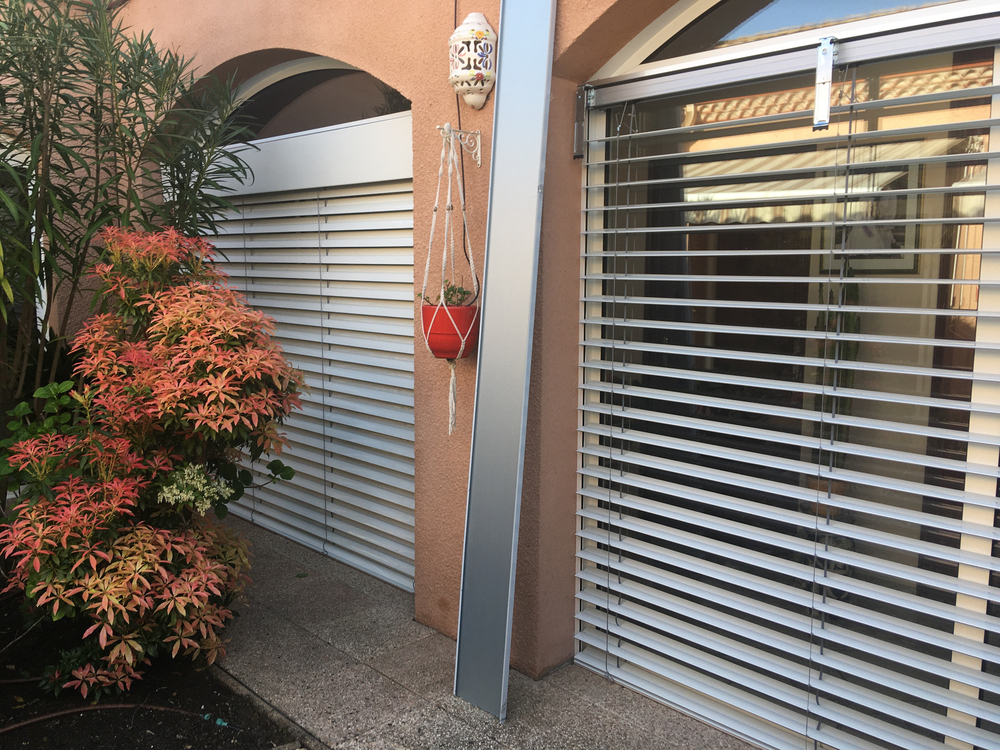

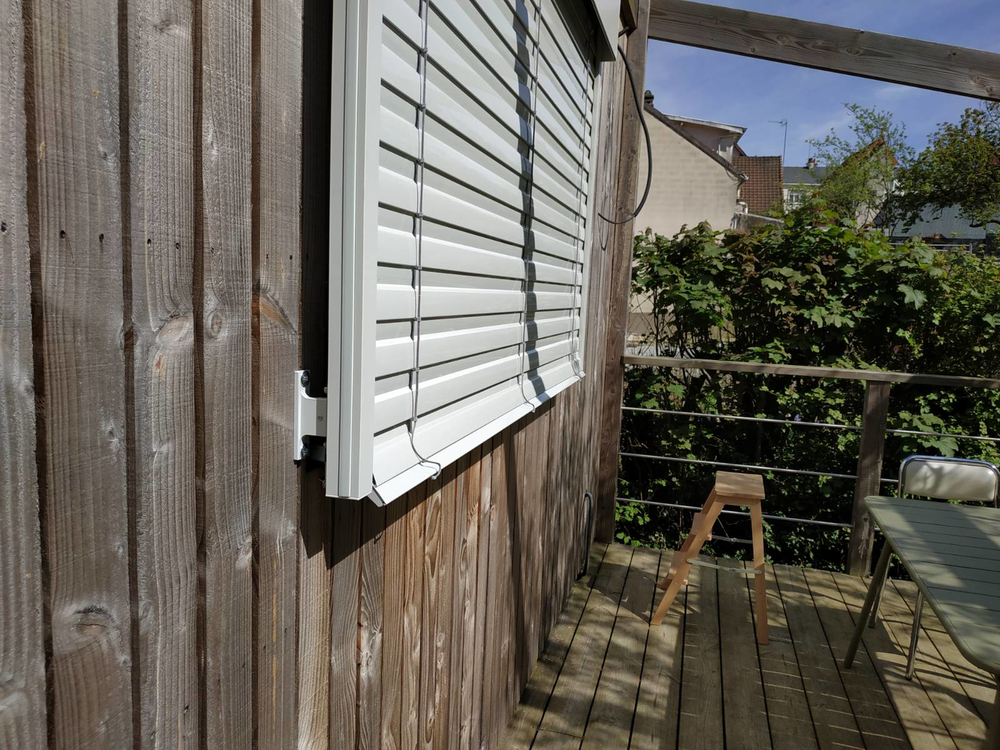

Reviews
4.6
4.6 out of 5
Reviews
Stars
67%
Stars
26%
Stars
5%
Stars
2%
Stars
0%
Anonymous
5
Advantages
facile à poser si on est un bon bricoleur.
bien prendre le temps de lire les différentes notices d'installation afin de bien comprendre l'ordre des actions à faire.
Comment
livraison dans les délais indiqués lors de la commande.
produit fidèle aux descriptifs.
tout est bien emballé et protégé.
4 heures de travail en tout pour poser mon BSO de 3,7 m de long :
1 heure pour les prises de côte et le perçage des trous pour les fixations
1 heure pour la fixation des montants et coffre
1 heure pour fixer le bloc lames/moteur (A deux personnes)
1 heure pour le raccordement électrique.
Anonymous
5
Comment
Très bon produit.
Conforme à la description.
Livraison dans les délais.
Facile à poser pour un bon bricoleur.
Dans mon cas, il fallait être deux (BSO de 3,7m de long)
Une heure pour le perçage des fixations, une heure pour fixer les montants et le coffre, une heure pour fixer le bloc lamelles/moteur et une heure pour le raccordement électrique.
je recommande le produit et l'accompagnement.
Je repasserai une commande dans le futur.????
Anonymous
5
Comment
je suis satisfait de mon Bso. Produits tout à fait conforme à ce que j’attendais, j’étais bien accompagné pour le suivi de la commande.

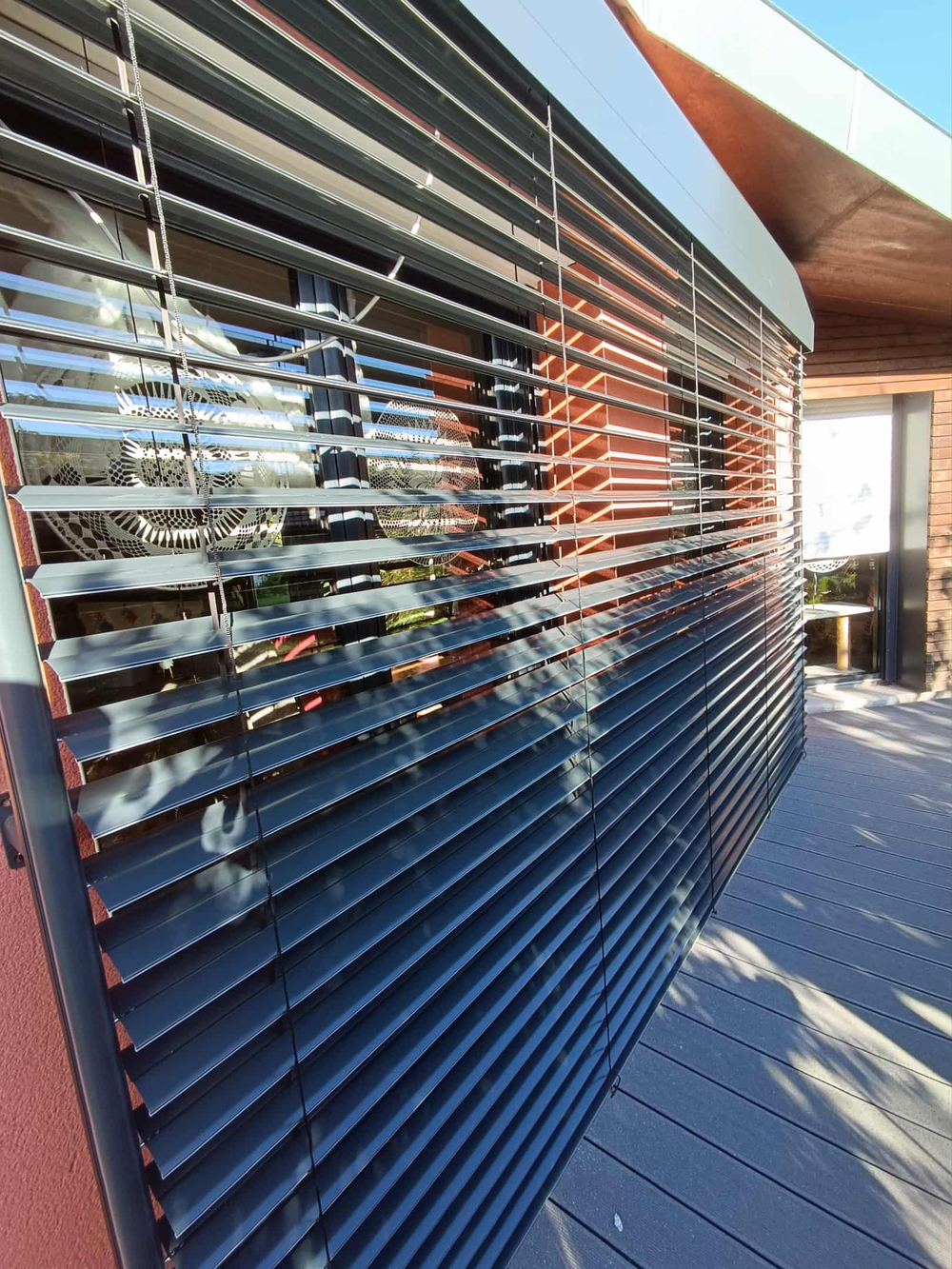

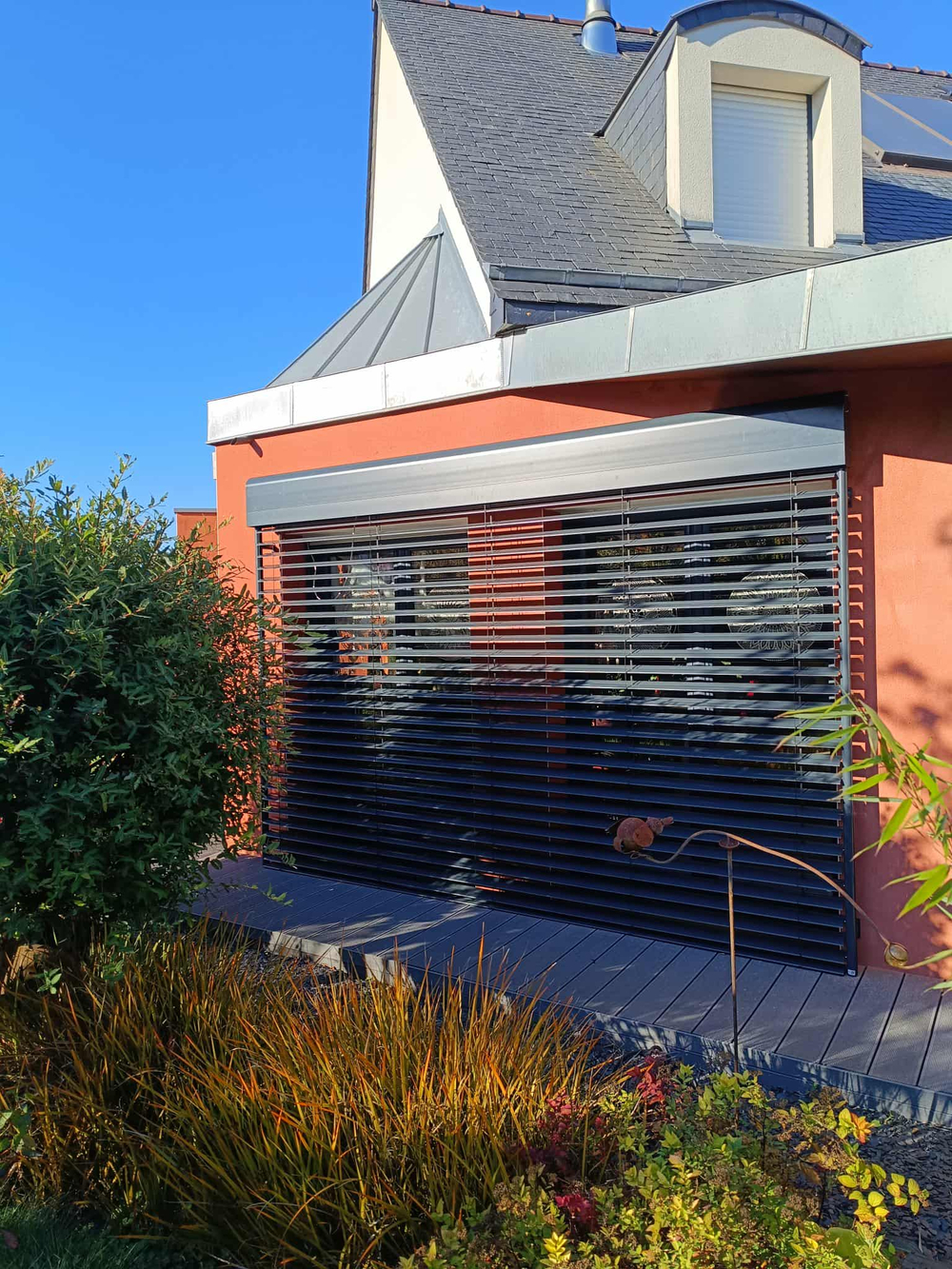

T. A.
Verified purchase
5
Advantages
Très facile à poser grâce aux coulisses autoportées qui m'ont été conseillées.
Comment
À recommander.
Délai parfaitement tenu par rapport à ce qui est annoncé.
Bons conseils avant la commande.
Le BSO se pose très facilement grâce aux explications reçues en amont de la commande (heureusement, car la notice n'est pas top).
Avec les coulisses autoportées il suffit de fixer les coulisses au bloc moteur puis de visser les coulisses de chaque côté sous le linteau de la fenêtre.
Utilisé dans le cadre d'une rénovation, je vais en commander trois autres pour les autres fenêtres. La tôle reste très discrète et moderne.
Moteur Somfy IO un peu cher mais qui permet de tout centraliser. Je ne regrette pas.
RICHARD DIEU
4
Comment
C'est la troisieme commande Rien à dire, comme d'habitude gens competents et serviables.
Romain
5
Advantages
La finition est top, les coulisses sont posées directement sur le tableau en zinc pour pouvoir les démonter.
Comment
Bonjour Guillaume,
Un grand merci pour l'envoie du Brise soleil gris clair, il est désormais monté et fonctionne très bien !! Il s'intègre parfaitement avec la teinte du zinc clair !
Vincent T
5
Comment
La dernière n'était finalement pas trop longue. Commande conforme et support technique par SMS en direct.
Anonymous
5
Advantages
livraison de BSO sur mesures pour des dimensions particulières , grand choix de couleurs possible.
Comment
livraison et emballage parfaitement réalisé, le produits est conforme à la demande , même si le montage des BSO n'a pas posé de problème , mériterais un petit tutos
alain
4
Advantages
produit costaud correspondant a la commande
Disadvantages
mise en pose pas simple, notice pas trés lisible et pas trés élaborée, il faut etre deux personnes pour la pose du moteur et rideau
Comment
une amélioration au niveau des notices serait la bienvenue
Jean COMMEIGNES
3
Advantages
- avant-vente
- livraison
- qualité du produit
- esthétique du résultat
Disadvantages
- Une seule notice et une seule vidéo pour de multiples configurations
=> La mienne est évidement plus complexe et les difficultés les principales ne font pas l'objet d'étapes explicatives dans la notice.
- la conception du coffre, plié, en ne permettant pas d'accéder en démontant la face avant, rend l'accrochage du paquet de lames, et le verrouillage des brides extrêmement difficile, exige de mobiliser un échafaudage pour soutenir le paquet de lames: des professionnels expérimentés ont rencontré des difficultés significatives pour comprendre puis finaliser l'installation
- une erreur secondaire à mentionner dans la notice: les taquets bas sont indiqués "taquets hauts", ce qui n'a pas de sens
- deux clamps seulement sont fournis pour guider le câble d'alimentation le long de l'axe: il en faudrait au moins 4
Comment
Le résultat est magnifique, mais je ne vois pas comment un particulier sanscompétences particulières et outilage adapté pourrait s'en sortir pour comprendre l'installation et en veni à bout: absolument faire appel à un professionnel expérimenté
Question

You have a question ?





Video gallery
Vidéo installation BSO

Vidéo installation BSO

comment installer / monter un BSO (brise soleil orientable) lame Z de 90 mm à encastrer ?

présentation du BSO lame Z

Fast and high quality delivery

Our company makes delivery all over the country

Quality assurance and service

We offer only those goods, in which quality we are sure

Returns within 30 days

You have 30 days to test your purchase
