Description

Self-supporting adjustable sun shade for facade installation

With a BSO, you avoid overheating in summer while keeping natural and soft light in your interior. The adjustable sunshade is the perfect outdoor sun protection that combines design and aesthetics.

The box is self -supporting on the slides, which guide the adjustable slats. These are fixed to the wall with spacer brackets.

This self-supporting structure facilitates installation: protect yourself from the heat with simple arrangements around your windows. Furthermore, unlike a roller shutter, the adjustable slats allow you to control the brightness.



Choosing the right BSO

To be accompanied free of charge in the choice of your installation, our team is at your side.

Make your request in a few clicks and within 24 hours maximum, we will contact you.

I want to be contacted

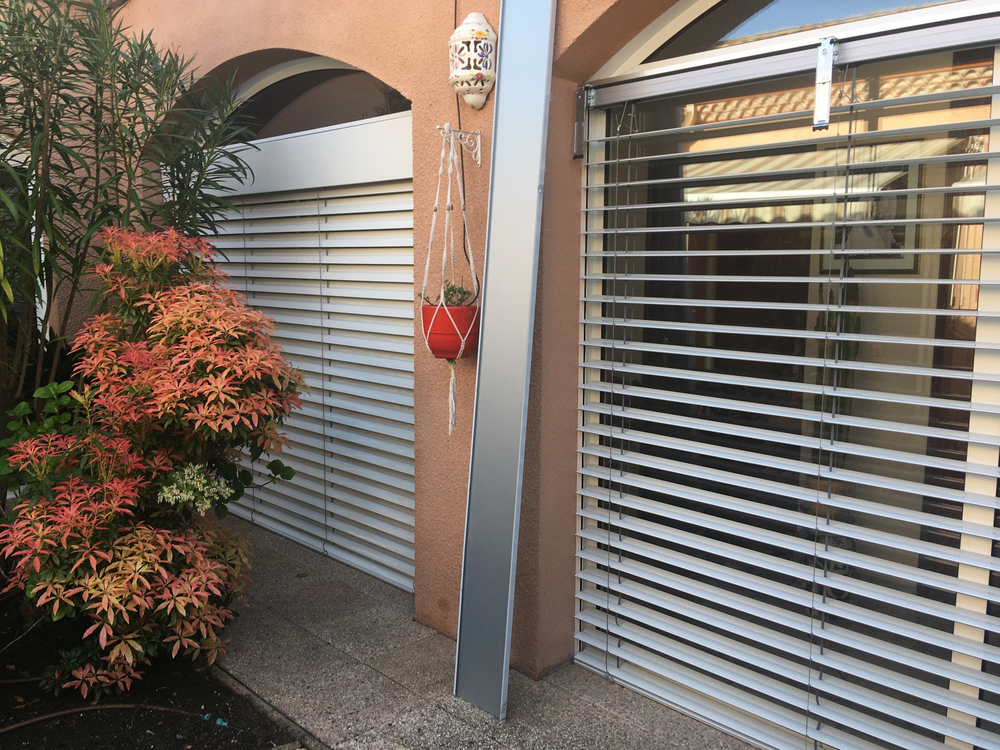

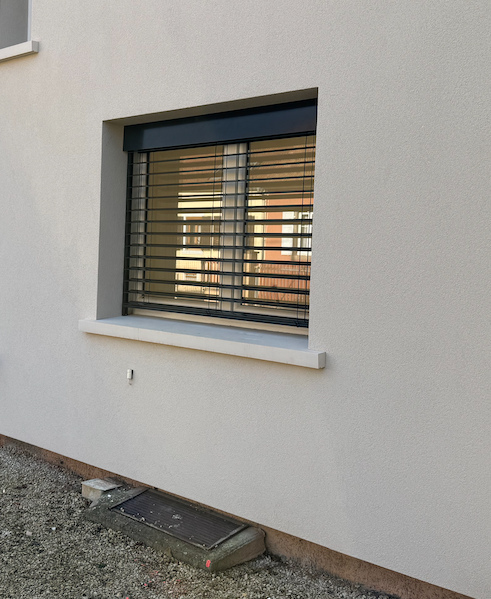

self-supporting sunscreen

The bso is fixed directly to the wall

The installation of shading blinds is a response to the 2012 Thermal Regulations and especially to the need for free solar gain in winter while protecting against the vertical rays of the sun in summer.

Sun protection is strongly recommended if you do not have "sun caps" above your joinery.

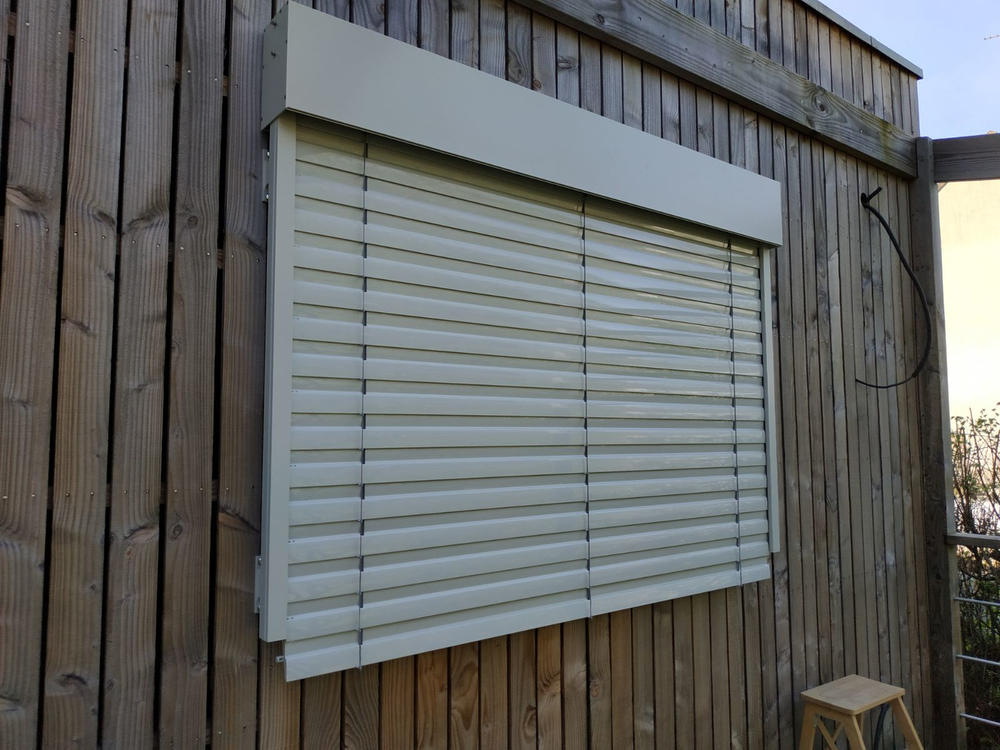

bso self-supporting aluminum box

The same self-supporting sunscreen, reassembled in the box.

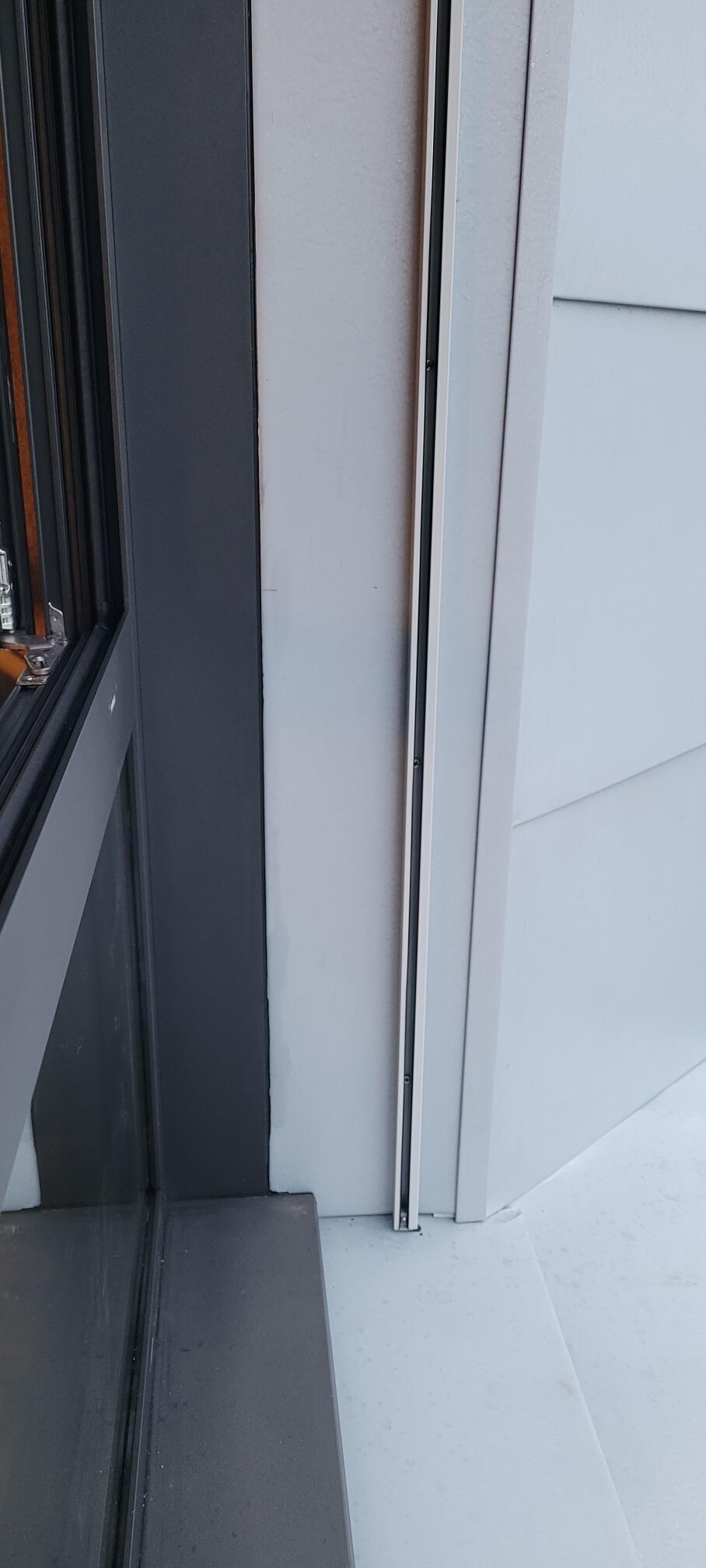

You can clearly see the spacer legs in the wall

Depending on the orientation of the slats, the brise soleil can let in up to 90% of the outside light. In the closed position, an external venetian blind is not a totally blackout system.

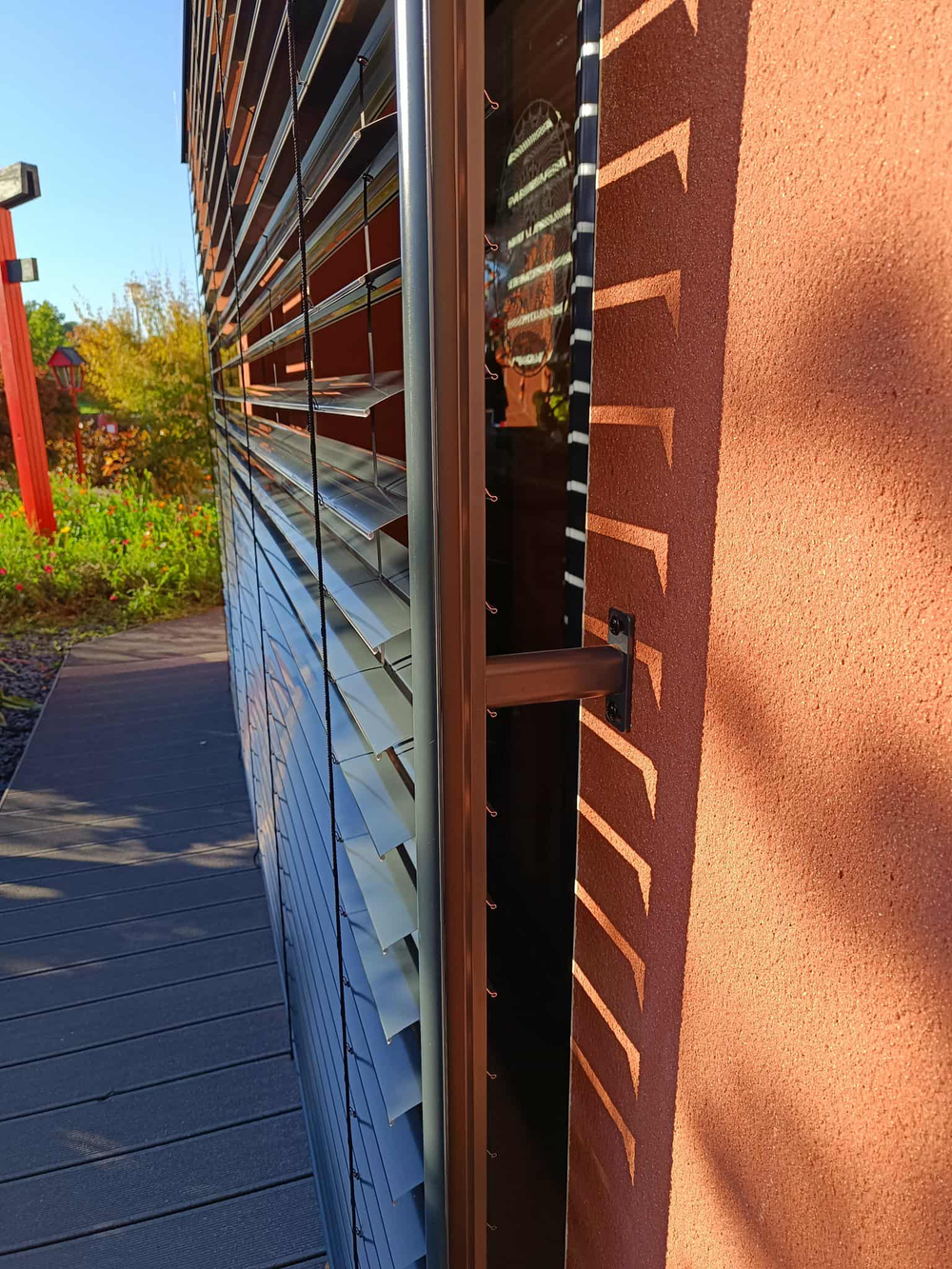

sunshade fixing in the wall

Detail of the supports to be fixed on your facade

BSO CUBE

Guarantee

The structure and the motor are guaranteed for 2 years. More than 150 customers per year have chosen this exterior shutter and tell us about their satisfaction.



Color of your sunshade

We offer a wide range of colors as standard. For a specific RAL, please contact us.

The Z90 blade

  • The slats are made of profiled aluminum with a thickness of 0.42 mm and a width of 92.5 mm.
    Possibility of almost completely closing the blindsUnlike blinds with traditionally shaped slats.
  • The adjustable slats are equipped with a sound-absorbing seal to reduce noise when fully closed.
  • The slats are covered with a lacquer coating guaranteeing resistance to bad weather.
  • Slats are maintained by the Hagofix ® System - polyester fibers double reinforced with aramid (used in particular in the manufacture of bulletproof vests) used for the textile tapes which support the slats.
  • These materials are highly resistant to stretching and scratching, stabilized by a thermal process and are resistant to UV rays and other atmospheric conditions.
    Textile is more resistant than cable systems that corrode over time!



The load bar which is the last slat is solid for better static support of the assembly.

BSOZ90 slat with soundproofing seal

Z90 slat profile of the brise soleil

The orientation of the blades is done whatever the height.
When the blind goes down, the slats go vertical, and when it goes up the slats are horizontal.



Maximum dimension

You can go up to 4500 mm, both for width and length.



Radio or wired electric motor

> SOMFY RTS 1 radio engine:

Supplied with a Telis 1 MODULIS remote control compatible with the entire Somfy RTS range. Click on the motorization drop-down menu to see the Somfy remote control.



> Wired GEIGER motor:

Supplied with SMOOVE UNO switch from Somfy. Adjustment of limit switches mechanically (manual adjustment very easy to do). Made in Germany, the Geiger engines are of very good quality.

The Cube box

fig. top right :
single or double self-supporting square slide

fig. at the bottom left :
guide cap CUBE

fig. at the bottom right :
elastic support fixed in the box

The order width must be equal to the width of your opening + 100 mm .

If your opening is 1000 mm, we recommend an order width of 1100 mm. Thus, the BSO will protrude on each side of your opening by 50 mm.

The fixing point will be 30mm from the edge of your opening, so if the plaster is 15mm thick you are sure to fix into the wall.

Section of the CUBE box with the fixing of the guide
when it is placed inside the box.

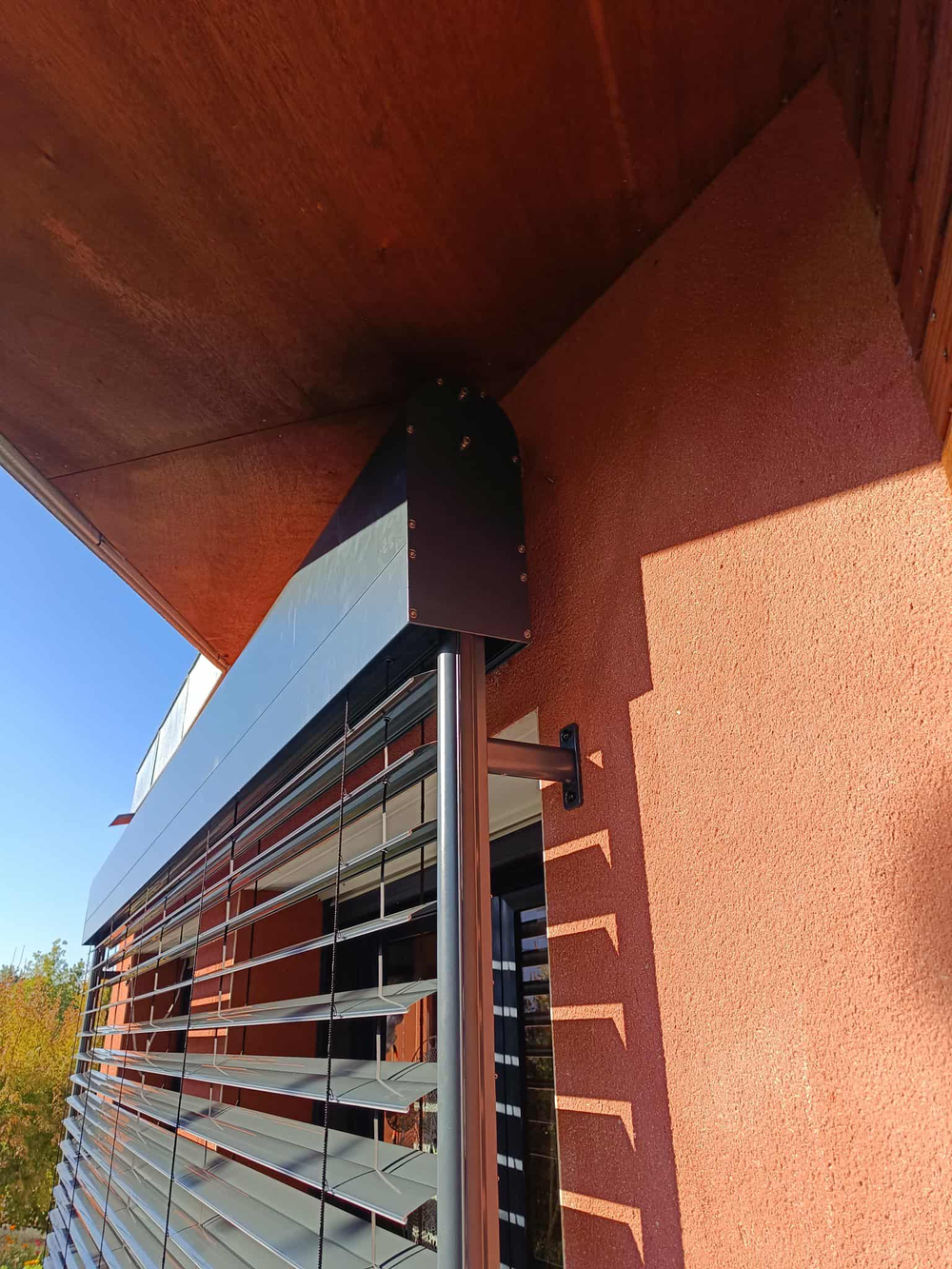

BSO fixing self-supporting slides

Maximum dimensions:

width 4500mm

height 4000mm

L - total width of the sunshade

H - hightotal eur of the brise-soleil

Behind the scenes of the BSOs

The Oval Box

(the dimensions and characteristics are identical to those of the Cube)

fig. 1: assembly of the support to the guide
fig. 2: fitting the support to the oval cassette
fig. 3: cassette
fig. 4: play the tape

Here are the guide supports that we offer.

We recommend the self-supporting support for easier installation , if you want to glue your box to the facade, and if the width of the BSO < 3 m .

The round guide support allows the box to be moved away from the facade.



BSO Z90 guide bracket

Prices shown include all mounting brackets. A telephone confirmation will be made when ordering to validate your assembly.

The height that you will indicate in the field of the product sheet corresponds
at the total height of the BSO = opening height + cassette height .

Below an opening of 1760mm, 240mm will be added to your opening height

For an opening between 1760 and 3070, 330 mm will be added to your opening height

Beyond and up to 3610 opening, 390 mm will be added

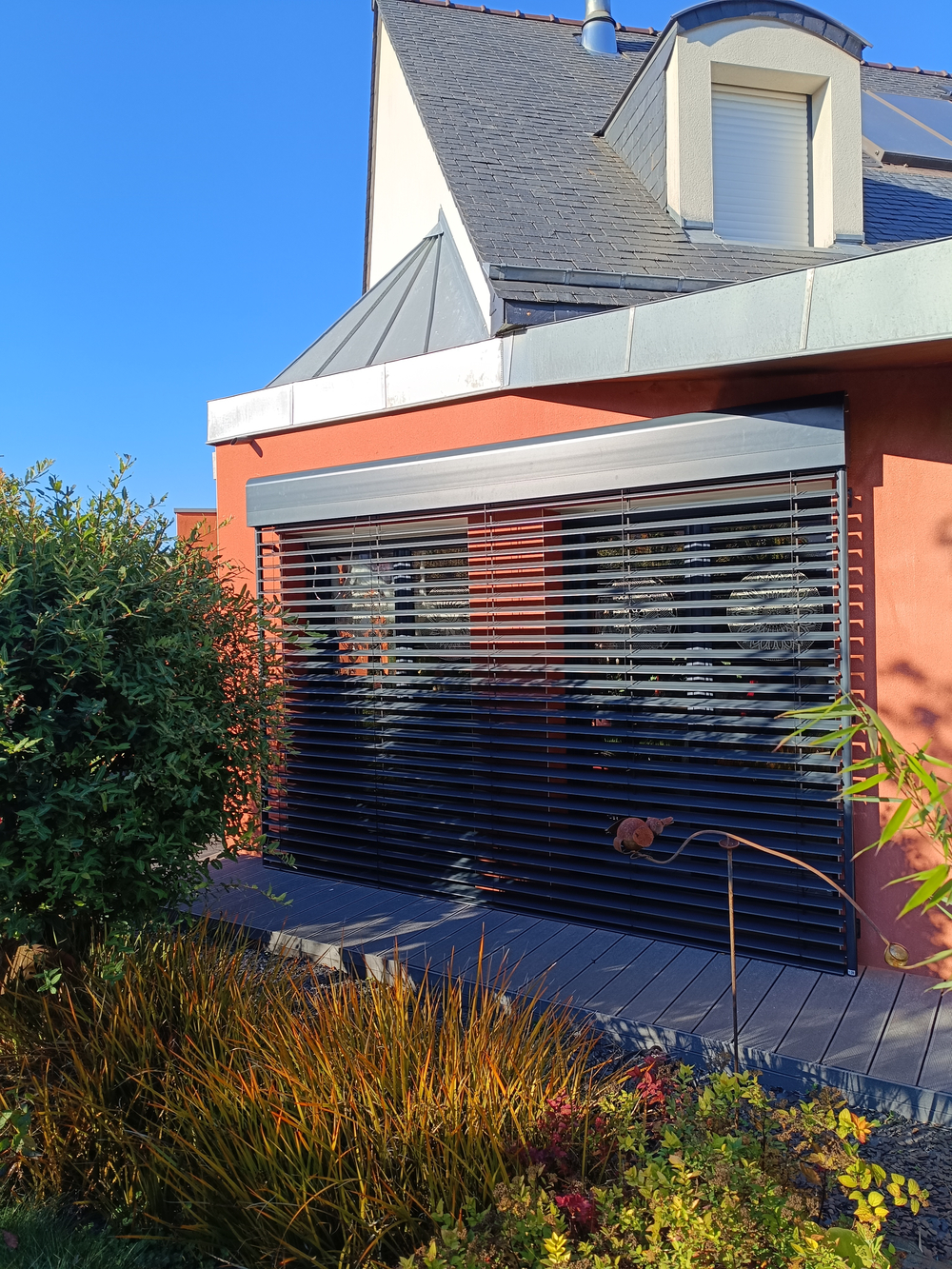

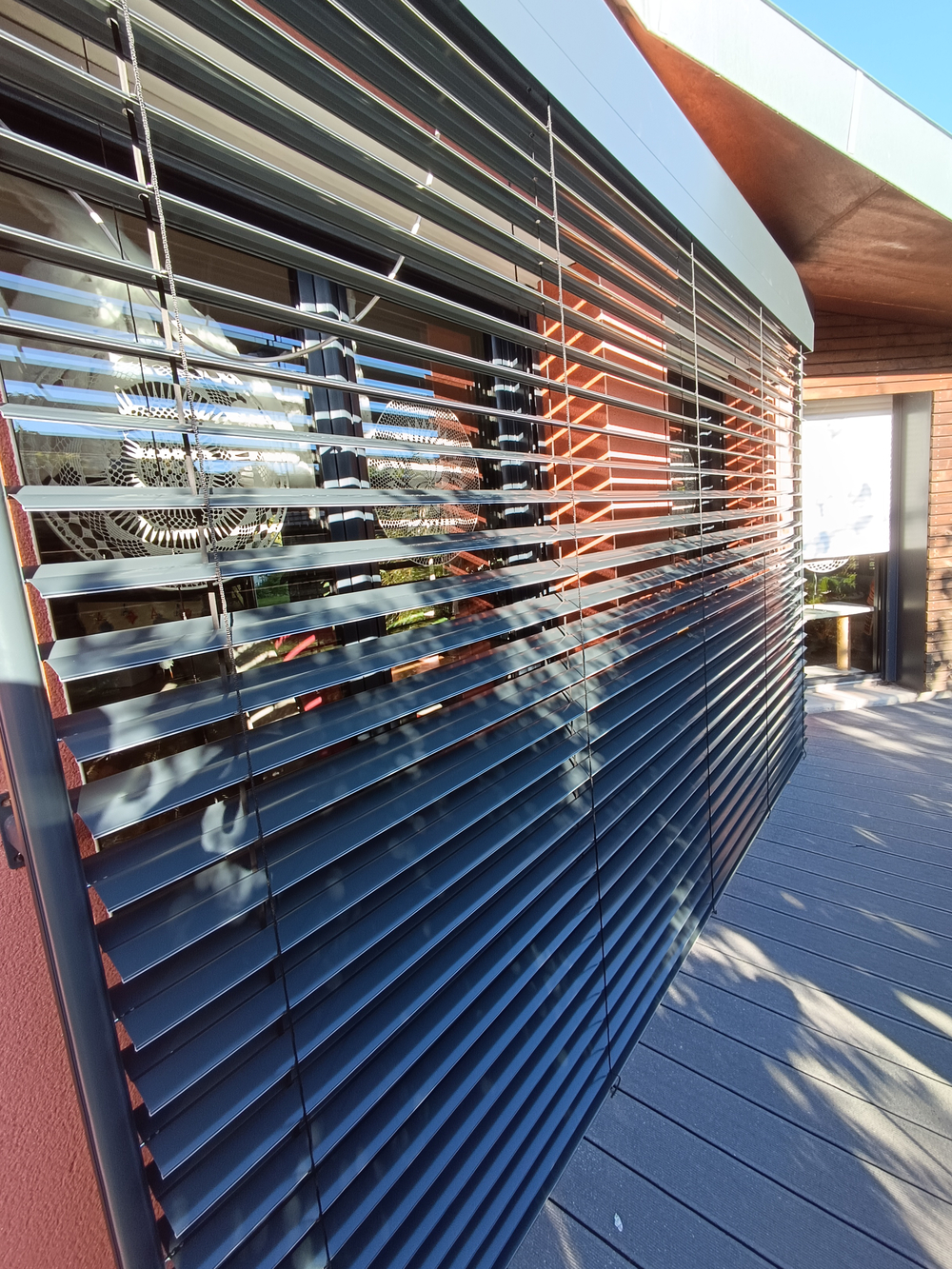

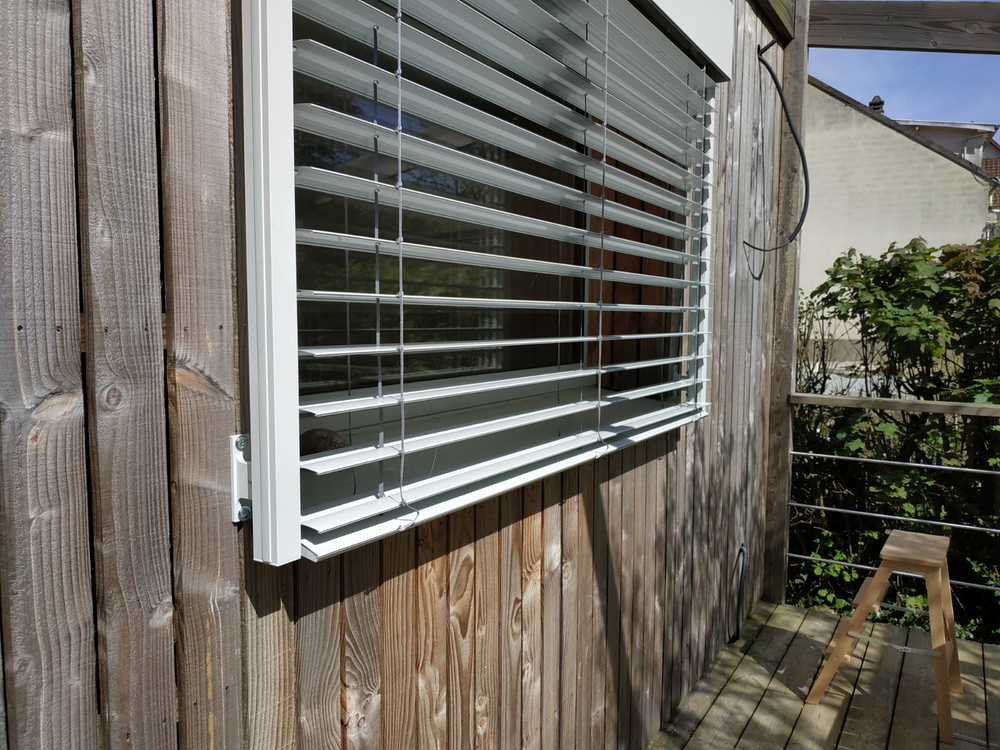

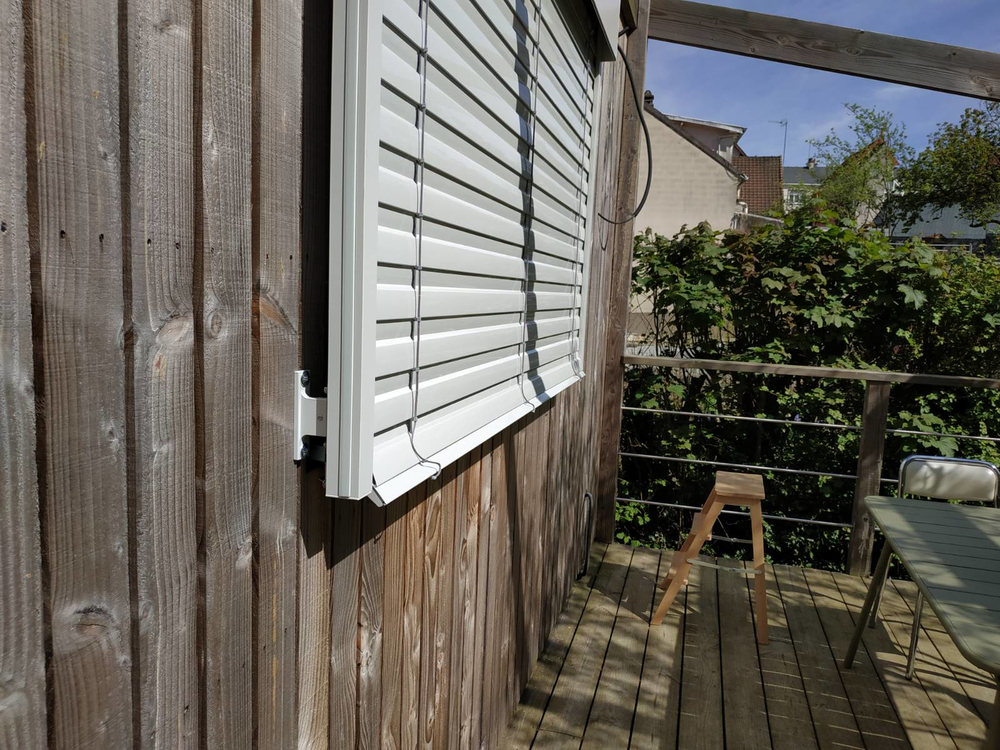

Here are the installation photos of your future Brise soleil orientable with an extruded aluminum box for installation on the facade.
The photos show the round guide support, but we recommend the freestanding one (free option to be selected).
The assembly of the slides on the photos is the assembly of the slides on the outside, but you also have the possibility of putting the slides inside the box as in the first photos of this description. (free option to select).

BSO Z90 Cube mounting with aluminum box

BSO Z90 Cube mounting with aluminum box

BSO Z90 Cube mounting with aluminum box

THE ASSEMBLY STEPS FOR THE FREESTANDING SUNRISE

  1. Return the aluminum box to the ground and screw the stirrups in the bottom into the small plates that slide
  2. Dismantle the sides and remove the front face of the box if the box is more than 240 mm high
  3. Unscrew the stirrups as much as possible and spread the jaws
  4. Drill the back of the safe and pass your cable if possible
  5. Turn over the blade package with the motor and slide it into the trunk, until the clamp closes on the motor rail
  6. Take a cloth and protect the blades, before screwing the caliper toin the bottom of the trunk, with a large screwdriver
  7. Do this for each stirrup
  8. Replace the front face and cheeks
  9. Secure the guide rail retaining bracket on each side in the trunk
  10. Still with the trunk upside down, place the slides on each side in the trunk. (cut out the black seal on the back of the slide on the height of the box)
  11. Stand your awning upright and mark the locations of the mounting brackets on the wall.
  12. Drill the wall, attach the legs to the wall, then to the slide. The BSO is therefore standing, fixed to the wall
  13. Finalize the electrical connection
  14. If you have a somfy radio motor, carry out the complete motor reset procedure (last procedure) to then pair the remote control.

Choosing the right BSO

To be accompanied free of charge in the choice of your installation,
our team is at your side.

Complete your request in a few clicks and within 24 hours maximum,
we come back to you.



Documentation

Options Details

Brise Soleil Adjustable self-supporting wall-mounted, : Geiger wired engine with Somfy Smoove UNO switch
Motorization
Geiger wired engine with Somfy Smoove UNO switch

Product reference :229025 -

The Geiger motor is a high quality wire motor for mechanical motion.

It comes with the switch.



By pressing the bottom key, the BSO descends the blades closed vertically to the bottom.
By pressing the top button, the BSO goes up the blades horizontally to the top.
By making small supports on the pimples you orient the blades as you want, at any height you want.

Notice Geiger (download)

Brise Soleil Adjustable self-supporting wall-mounted, Additional sensors and remotes: Eolis WireFree IO- two-way wind sensor for facade (battery operated)
Additional sensors and remotes
Eolis WireFree IO- two-way wind sensor for facade (battery operated)

The Eolis WireFree Io is an anemometer (simply wind sensor). Thanks to it, secure your sunshades by automatically raising them when the wind speed exceeds a certain speed.

Brise Soleil Adjustable self-supporting wall-mounted, Type of box and guide: Cube with square runners
Type of box and guide
Cube with square runners

Brise Soleil Adjustable self-supporting wall-mounted, Type of box and guide: Oval with square runners
Type of box and guide
Oval with square runners

Brise Soleil Adjustable self-supporting wall-mounted, Type of box and guide: Oval with round runners
Type of box and guide
Oval with round runners

Brise Soleil Adjustable self-supporting wall-mounted, Location of slides: Inside the box
Location of slides
Inside the box

The slide is fixed in the box (main photo from the beginning of the description)
The width of the aluminum box will be equal to the control width.

Brise Soleil Adjustable self-supporting wall-mounted, Location of slides: Outside the box
Location of slides
Outside the box

The slide is fixed to the exterior, on the cheek of the box (see photos of the assemblies at the very bottom of the description)
The width of the aluminum box will be equal to the control width minus 2x40mm so minus 80mm.

Brise Soleil Adjustable self-supporting wall-mounted, Slide support: Self-supporting fence support (if less than 3 m)
Slide support
Self-supporting fence support (if less than 3 m)

Brise Soleil Adjustable self-supporting wall-mounted, Slide support: Round guide support (if more than 3 m)
Slide support
Round guide support (if more than 3 m)

Support de guide rectangulaire 100 - 150 mm
Slide support
Support de guide rectangulaire 70 - 100 mm

Le support doit être monté à 10 cm sous le bord inférieur de l'ouverture / du coffre dans lequel le système est installé.

Un support réglable en trois intervales :
- 70 à 100 mm



Un nombre de paires en fonction de la hauteur :
- entre 0 et 1600 mm = 2 paires soit 4 supports
- entre 1601 et 2200 mm = 3 paires soit 6 supports
- entre 2201 et 3000 mm = 4 paires soit 8 supports

Brise Soleil Adjustable self-supporting wall-mounted, Slide support: Support de guide rectangulaire 100 - 150 mm
Slide support
Support de guide rectangulaire 100 - 150 mm

Le support doit être monté à 10 cm sous le bord inférieur de l'ouverture / du coffre dans lequel le système est installé.

Un support réglable en trois intervales :
- 100 à 150 mm (attention ne pas dépasser les 150 mm de la longueur lors du blocage du support !)



Un nombre de paires en fonction de la hauteur :
- entre 0 et 1600 mm = 2 paires soit 4 supports
- entre 1601 et 2200 mm = 3 paires soit 6 supports
- entre 2201 et 3000 mm = 4 paires soit 8 supports

Features
Manufacturer
Lacentrale-eco
Origin
Europe
Résistance au vent
  • Classe 1 - 30 km / h ,
  • Classe 2 - 40 km / h ,
  • Classe 3 - 45 km / h ,
  • Classe 4 - 60 km / h
Guarantee
  • 2 years warranty
Largeur maximum (L)
4500
Hauteur maximum (H)
5000
Type of control (shutter)
  • Moteur filaire GIEGER ,
  • SOMFY IO radio
Awnings and adjustable sunshades
Fixing
  • Fixed
Installation
  • Facade-mounted
Type of sheet metal
Adjustable sunshade in aluminium box for front installation
Slat type
  • Z90
Find similar
Reviews
4.4 out of 5
Reviews
Stars
43%
Stars
57%
Stars
0%
Stars
0%
Stars
0%
alain
Advantages
produit costaud correspondant a la commande
Disadvantages
mise en pose pas simple, notice pas trés lisible et pas trés élaborée, il faut etre deux personnes pour la pose du moteur et rideau
Comment
une amélioration au niveau des notices serait la bienvenue
Anonymous
Advantages
Prix attractif, livraison à domicile.
Disadvantages
Être sur des cotes, autonomie.
Vous devriez mettre les instructions de montage sur une page à part sur le site internet pour simplifier les choses.
Comment
Contents dans l ensemble
Vendor's response
Merci pour votre avis complet. nous allons voir comment simplifier la page en tenant compte de votre remarque
Jf Huzen
Comment
Bon produit. Delais de livraison un peu long. Un contact téléphonique est nécessaire pour une première installation. Une fois installé, il marche.

---> Merci pour votre retour. Effectivement avec une usine qui ferme 3 semaines à Noel, ça rallonge fortement le délai. Au plaisir.
Dauviau
Comment
Bonjour,
Pouvez-vous me renseigner sur l'emplacement du branchement électrique vers le moteur afin de prévoir la sortie du câble lors des travaux? Merci

------ > Vous pouvez sortir les câbles ou vous voulez. L'idéal est de les mettre à droite ou à gauche pour ensuite sélectionner la motorisation désirée avec la sortie de câble à droite ou à gauche, vu de l'intérieur.
thibXXXXXX@outlook.fr
Comment
Bonjour,
J'ai l'intention d'équiper ma véranda de brise-soleil , cela me serait utile de connaître l'épaisseur et la hauteur du caisson pour une hauteur de 2 m.
Cordialement

----> Pour une ouverture de fenêtre de 2000, la hauteur du caisson Cube du brise soleil sera de 330mm. Donc votre dimension de commande sera de 2330.
----> La largeur de commande si votre ouverture fait 1000 de large sera de 1100mm (coulisses à l'extérieur comme l'intérieur du caisson). Car le support de fixation fait 40mm de large, donc il faudrait normalement ajouter 80mm à la cote de votre ouverture mais nous vous conseillons de fixer cette patte en laissant 10mm entre le bord de votre ouverture et la patte pour éviter de visser entre le crépis.

j'espère avoir répondu à votre question.

A votre service
remexxxxx@free.fr
Comment
nous aimerions un BSO anti soulèvement et occultant d'une largeur de 3250 mm et d'une hauteur de 1170 mm . avez-vous ce genre de produit et peut-on vous tél. pour de plus amples renseignements ?
merci pour votre réponse.


--- Notre réponse :
Nous ne faisons pas de BSO anti soulèvement sur notre site, car un vitrage securit coûte moins cher... Désolé.
Pour nous joindre utilisez le numéro du serveur vocal et laissez nous votre message. Nous reprendrons contact avec vous.

A bientôt
zampro******@gmail.com
Comment
Bonjour est-il possible avoir des lames de 3800 de longueur?

----> Bonjour, oui tout à fait la largeur max fera 4m.
Question
