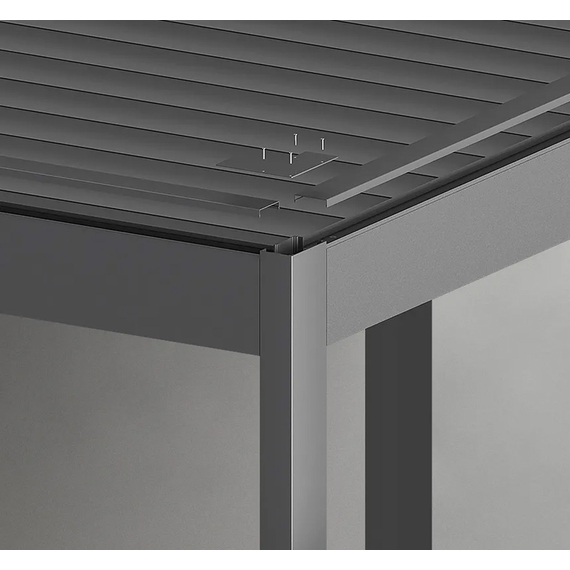

The lean-to bioclimatic pergola is the ideal solution to protect your terrace by limiting the footprint: with only two posts, it gives you maximum possibilities to enjoy your outdoors.
It rests directly on your facade, which limits work. This helps reduce the price of your pergola.

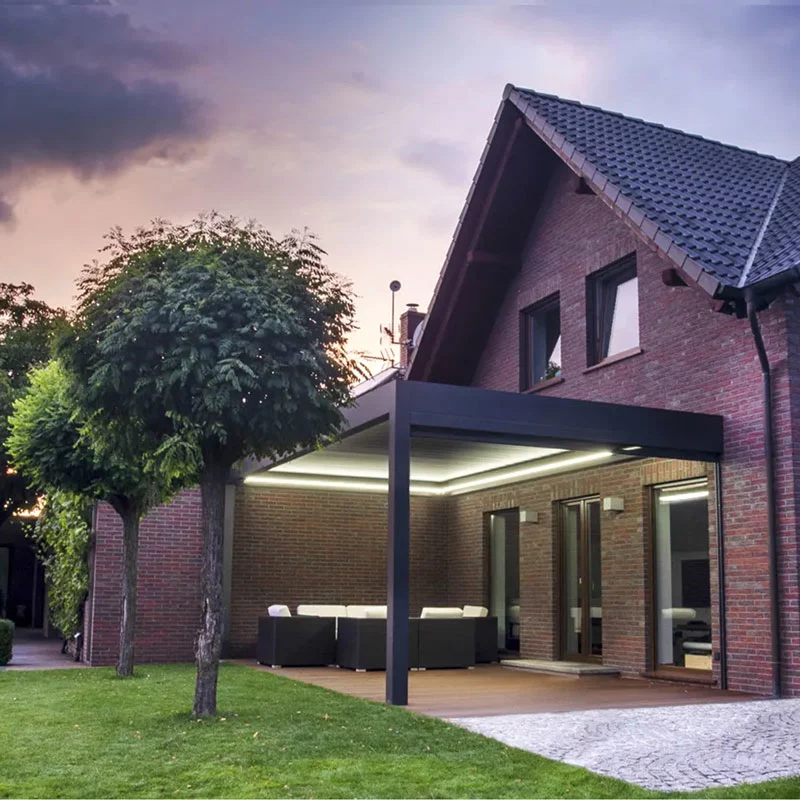

This pergola will beautify your exterior and highlight your terrace as well as your home, to give it a more contemporary look.
Find all of our pergolas for other types of assembly (self-supporting pergola, adjustable blade kit , etc.)
Lean-to aluminum pergola: create your tailor-made pergola
Characteristics of the attached bioclimatic pergola
- Extruded aluminum construction and stainless steel components

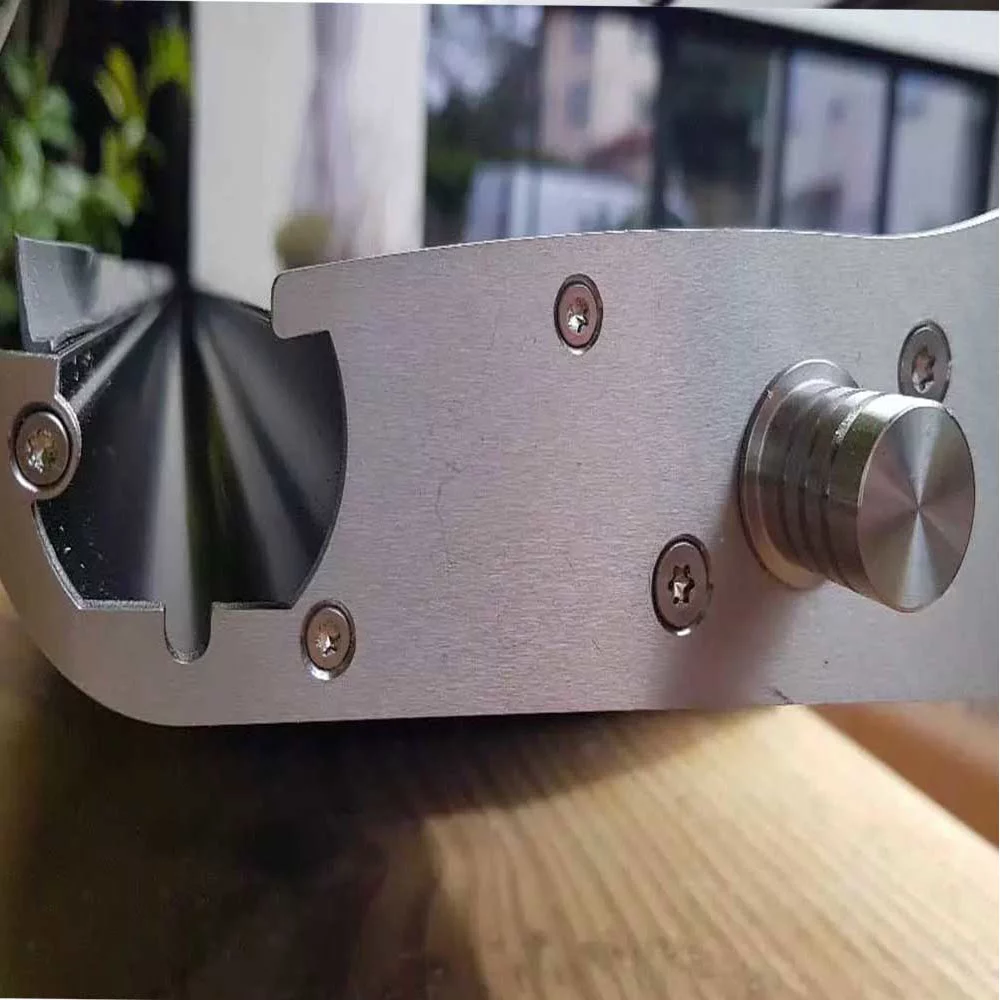

- Adjustable and motorized blades

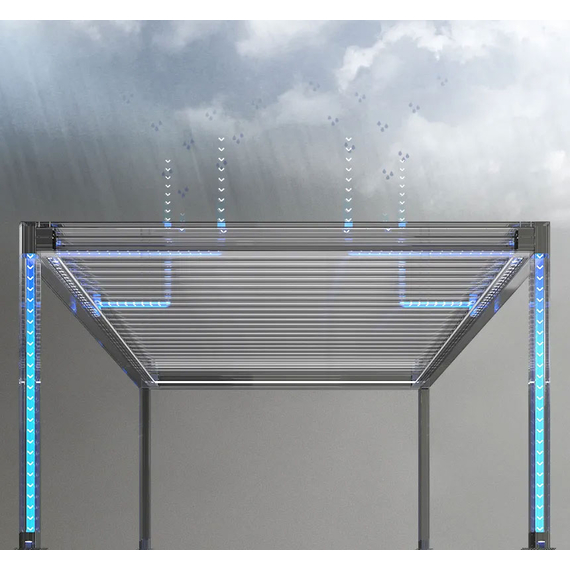

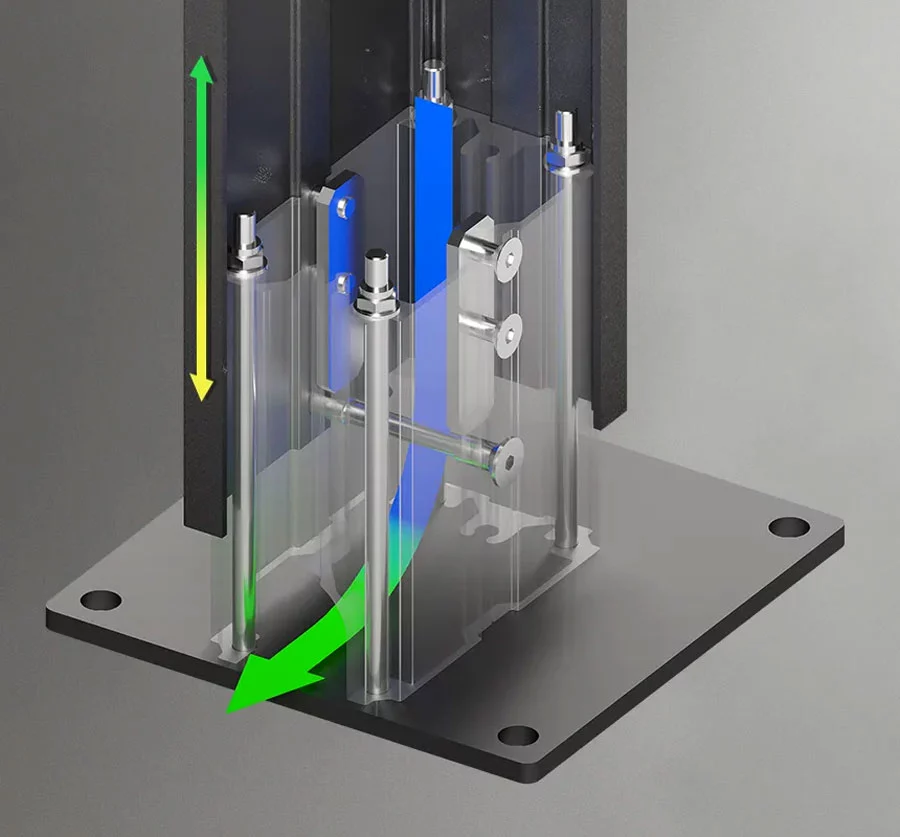

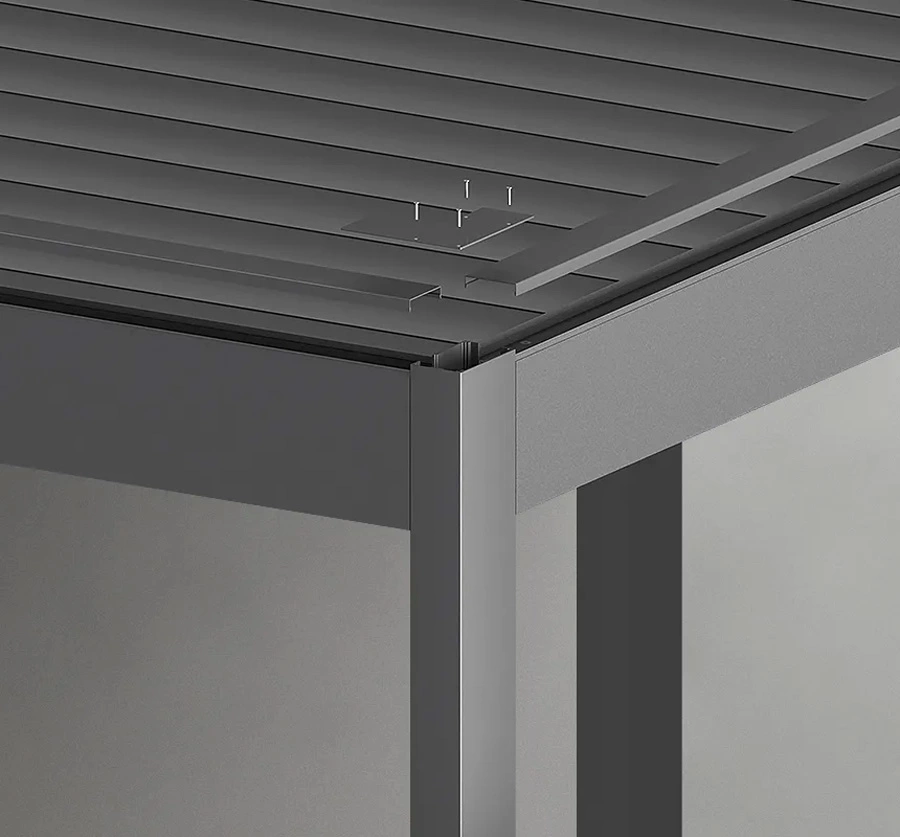

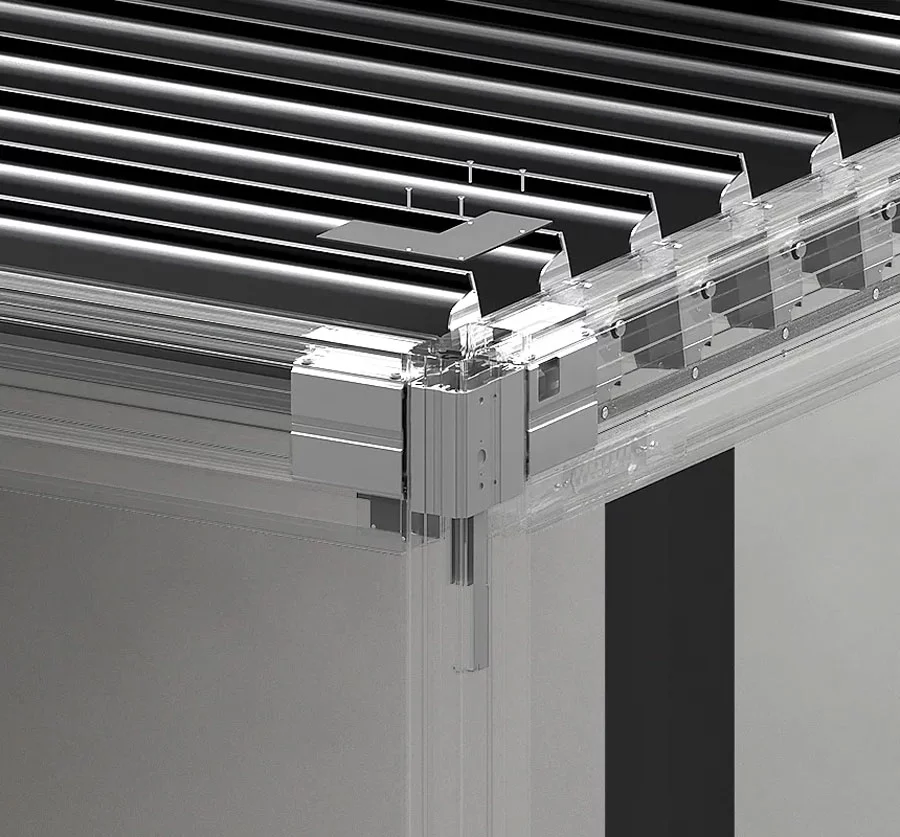

- Water drainage system

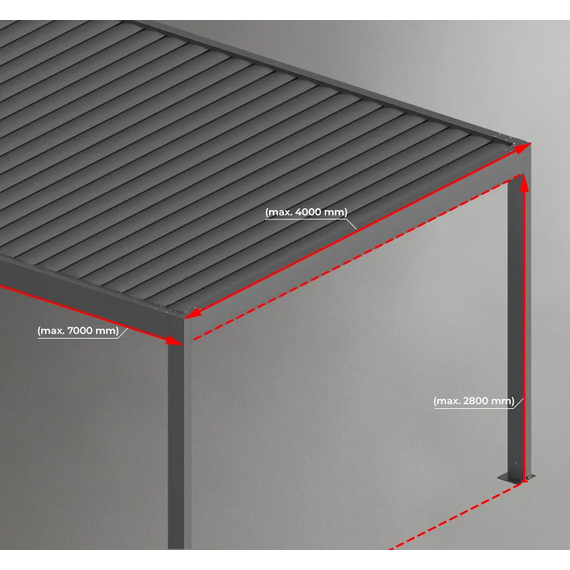

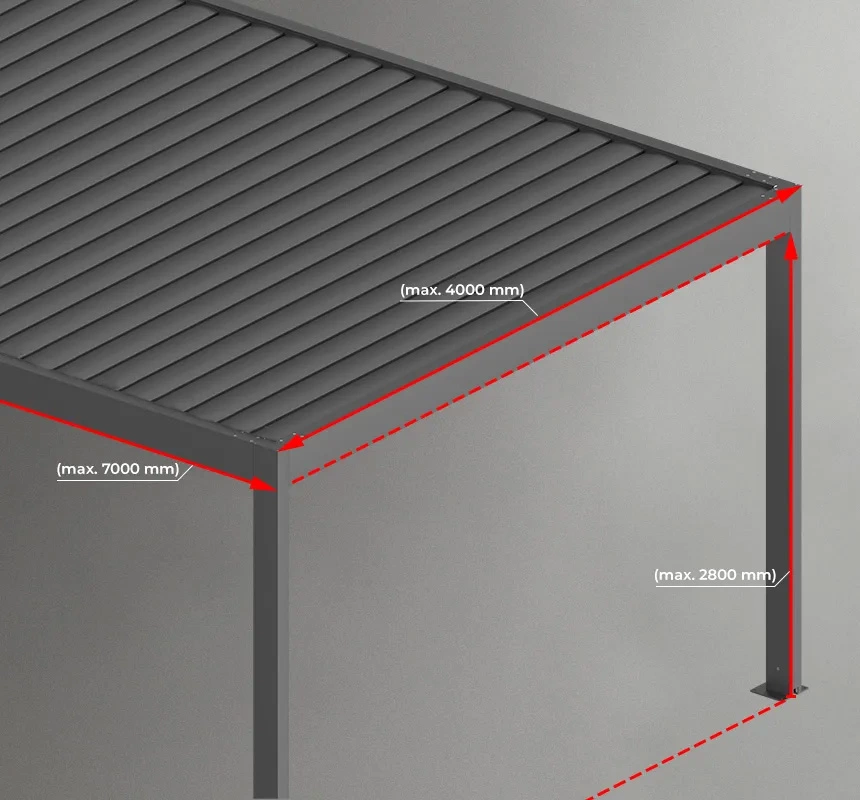

- Maximum dimensions of a module: width 4 m, projection 7 m
- Minimum dimensions of a module: width 1.2 m, projection 1.2 m
Sun protection to enjoy your outdoors
- Sunshade and rainshade system
- Use of weather sensor possible
- Standard construction color in White (RAL 9016MAT) in structured glitter anthracite (FSM 71319)
- Lacquering of the construction as well as the roof possible with all RAL colors (optional)

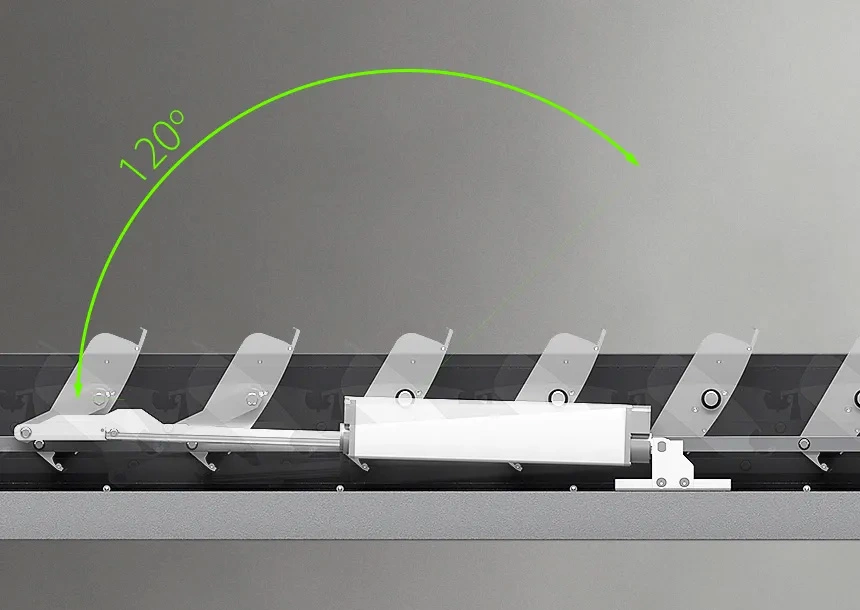

- Roof made of slats with the possibility of varying the angle of inclination, from 0 to 90°
- Wall mounting and adjustable number of posts
Easily control your blades, effortlessly
- Elero electric motorization
- Easy orientation with your wireless remote control
- Movement from 0 to 90°
- Motor invisible in profile thanks to the addition of a 150mm beam section on the side
- Degree of protection of the envelope IP 65: totally protected against dust + Protected against jets of water from all directions at the lance (6.3 mm nozzle, distance 2.5 to 3 m, flow rate 12.5 l /min ±5%)
What is the ELERO engine?
The motor delivered is an ELERO wired motor on which we put an RTS slim adapter to transform it into a radio motor. ELERO is a German engine manufacturer. The company was established in 1964.
The Picolo XL-P is a slim and elegant linear electric motor that takes into account not only the technical and functional angle but also the aesthetic aspects.
It is particularly weather resistant thanks to its stainless steel housing.
The Picolo XL also has a 230V AC drive which allows constant speed with fluctuating loads.
It is therefore possible to realize advantages in the construction of facades. Easily adjustable limit switches allow individual adaptation to the specifics of your home.
Cutting the gutter to collect rainwater from the pergola
The gutter must be placed on each side at the end of the slats. You can otherwise tilt your system to fit only one gutter.
A slope of 1%, or 1cm every meter, would normally be required for the water to flow.
However, if your pergola is 6m long, there would be a 6cm gap between one side and the other, which would not be very pretty.
We therefore advise you to offset 1 or 2cm between the front and the rear so that this slope is not perceptible to the eye when seen from below.
Given the large quantity of water that will be recovered, it will flow anyway even with this slight slope.
What is the wind resistance of this pergola?
This pergola is in wind resistance class 6 (400 Pa ~ 41 kg/m2).
Possibility of delivery in Switzerland and Belgium
We can deliver your bioclimatic pergola to you in Belgium or Switzerland.
Just remember to indicate the correct country of delivery when placing the order. For Belgium, transport is always free. Only VAT will change for Belgium (rising to 21%).
1. Overview of a self-supporting pergola:

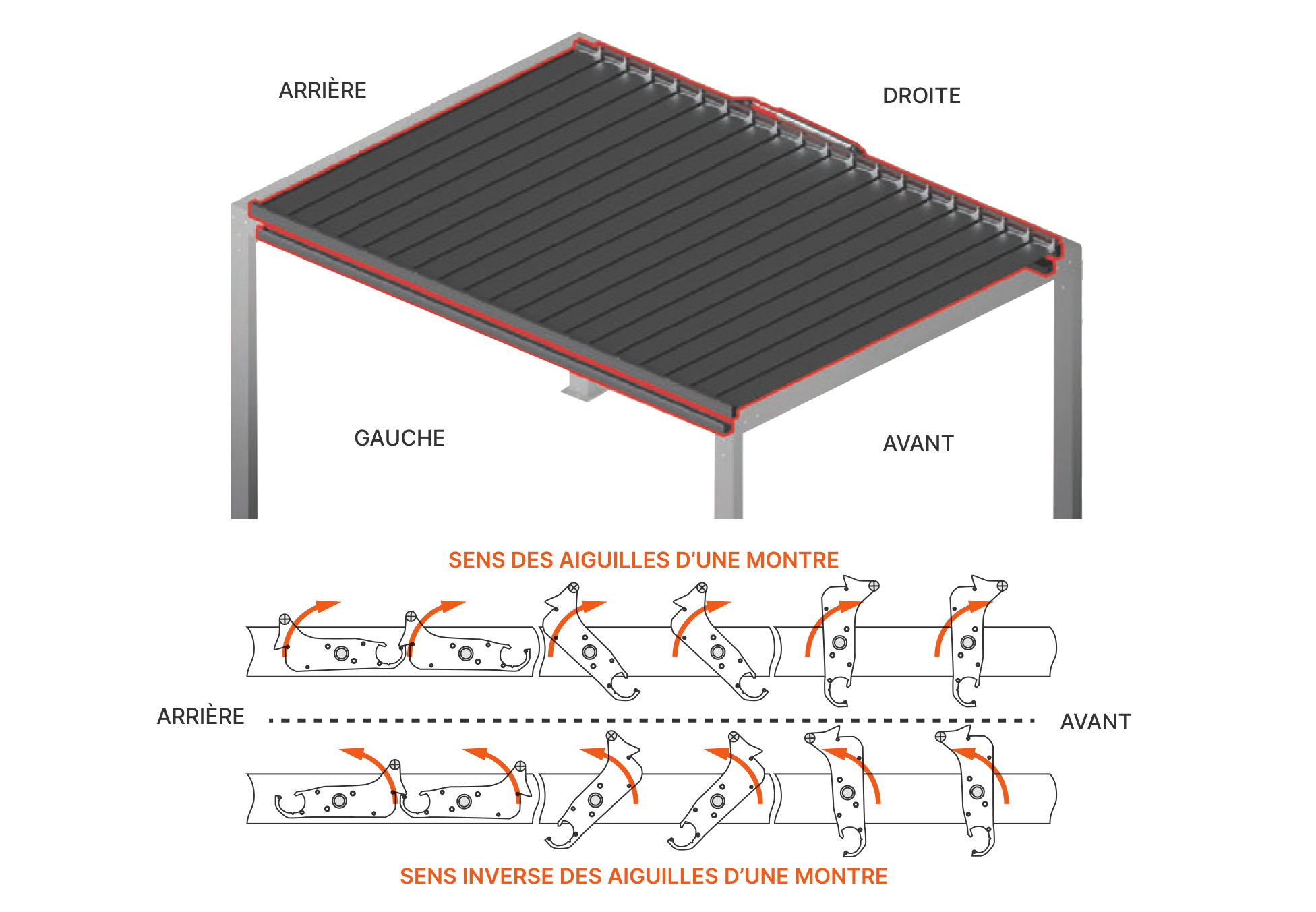

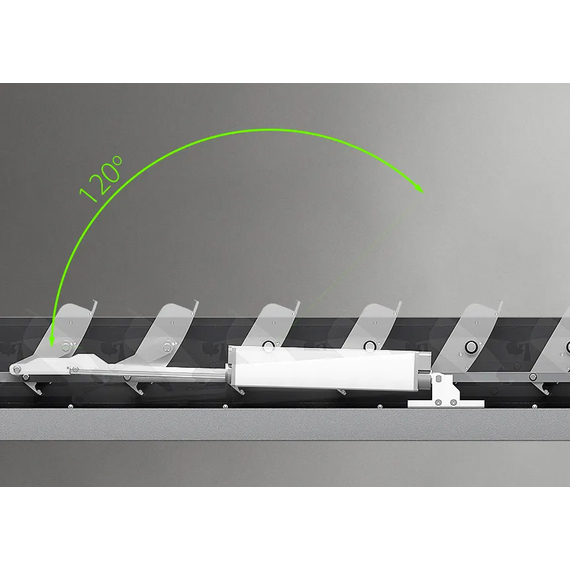

2. How does blade rotation work?
has. Closed blades
Training side
Bearing side
b. Blades with maximum motor drive height
Training side
Bearing side
vs. Open blades
Training side
Bearing side
d. Blade rotation mechanism
Training side
3. How to assemble a lean-to pergola?
Type of attachment
Longitudinal wall fixing
Cross wall mounting
Old model wall mount
Long Type
Short type
Universal wall mount
Mounting type
1. With distance
Universal mounting possible
Unable to fit universally
2. Without distance
Universal mounting possible
Unable to fit universally

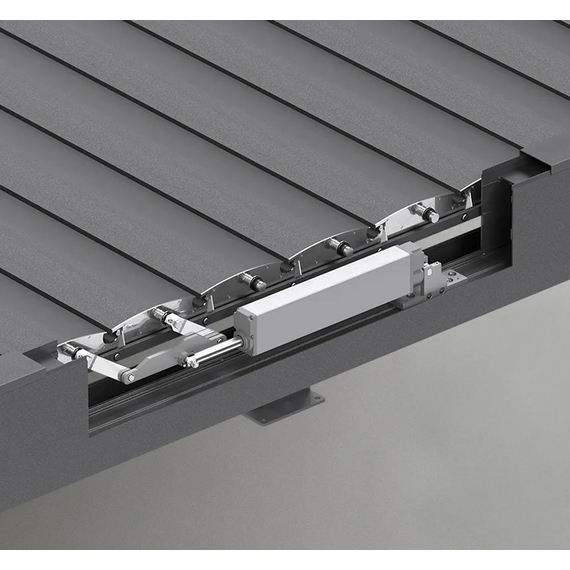

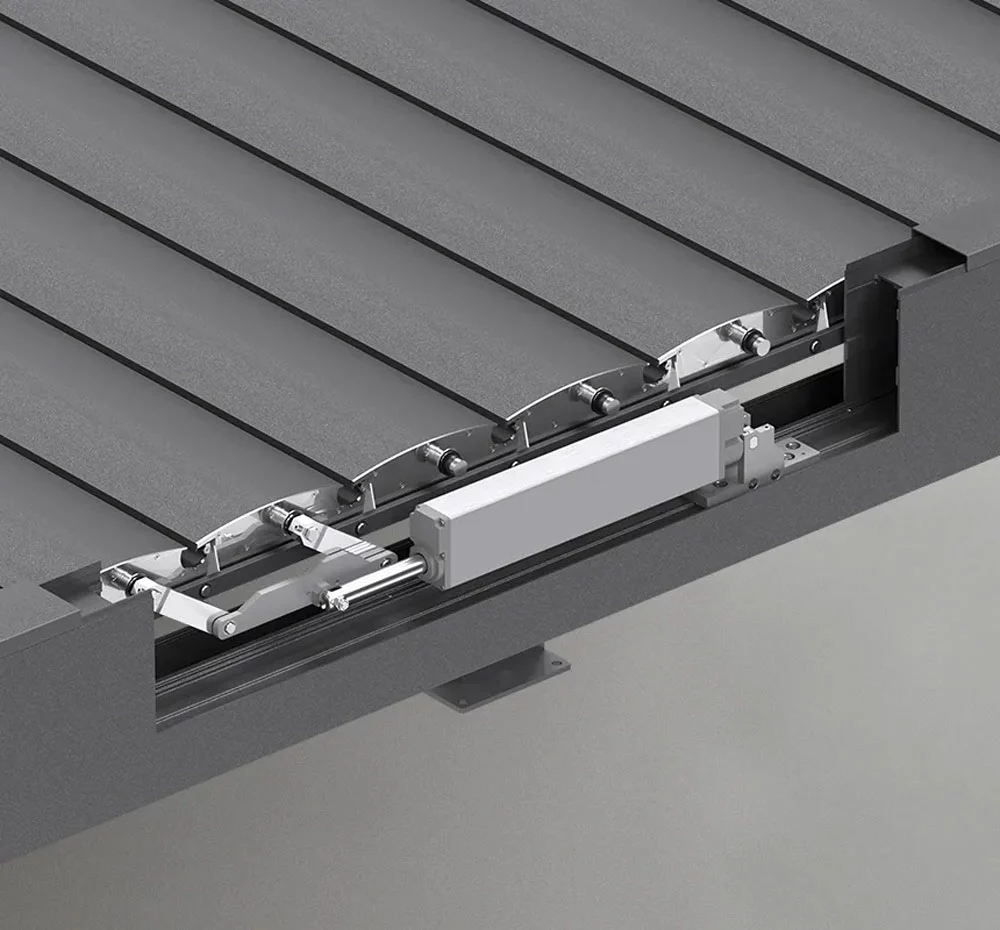

4. How to fix the motor?
Drive unit, blade rotation range
Meaning :
1 - Elero linear motor power 1200N
2 - engine support
3 - guide support
4 - rod
5 - strand 8 x 20 mm
6 - blade tip (propulsive)
Blade drive unit
Meaning :
1 - Elero linear motor power 1200N
2 - engine support
3 - guide support
4 - rod
5 - strand 8 x 20 mm
6 - blade tip (propulsive)
7- hide bar
|
adius:5px; width:100%;" /> |
|
|
Motor support for single pergola |
Motor support for pergola with motor cover |
|
|
|
|
Motor attachment for single pergola |
Motor attachment for pergola with motor cover |

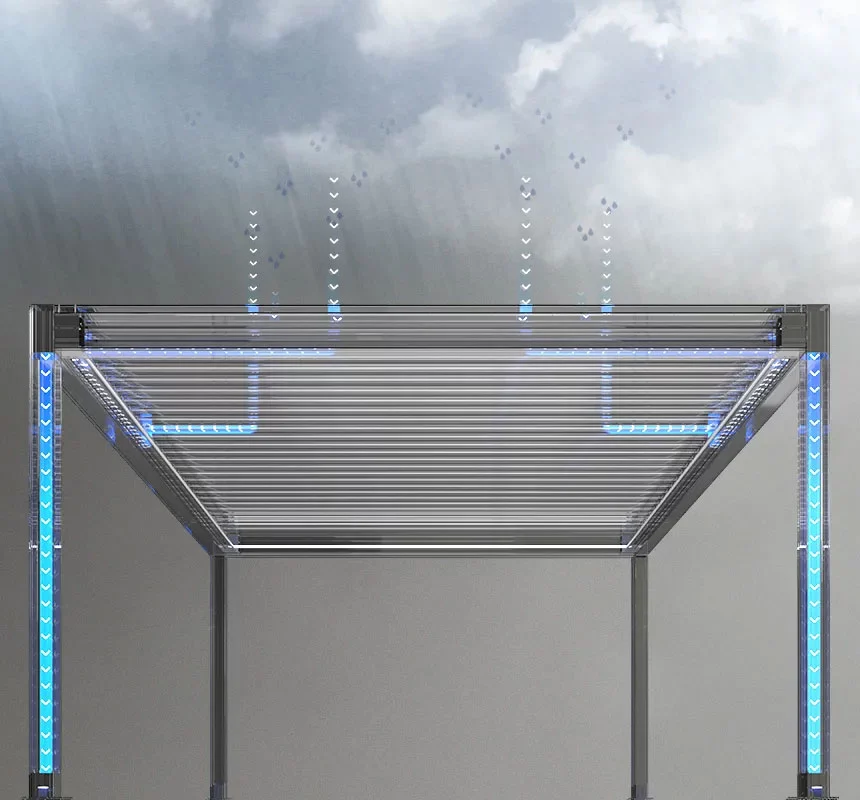

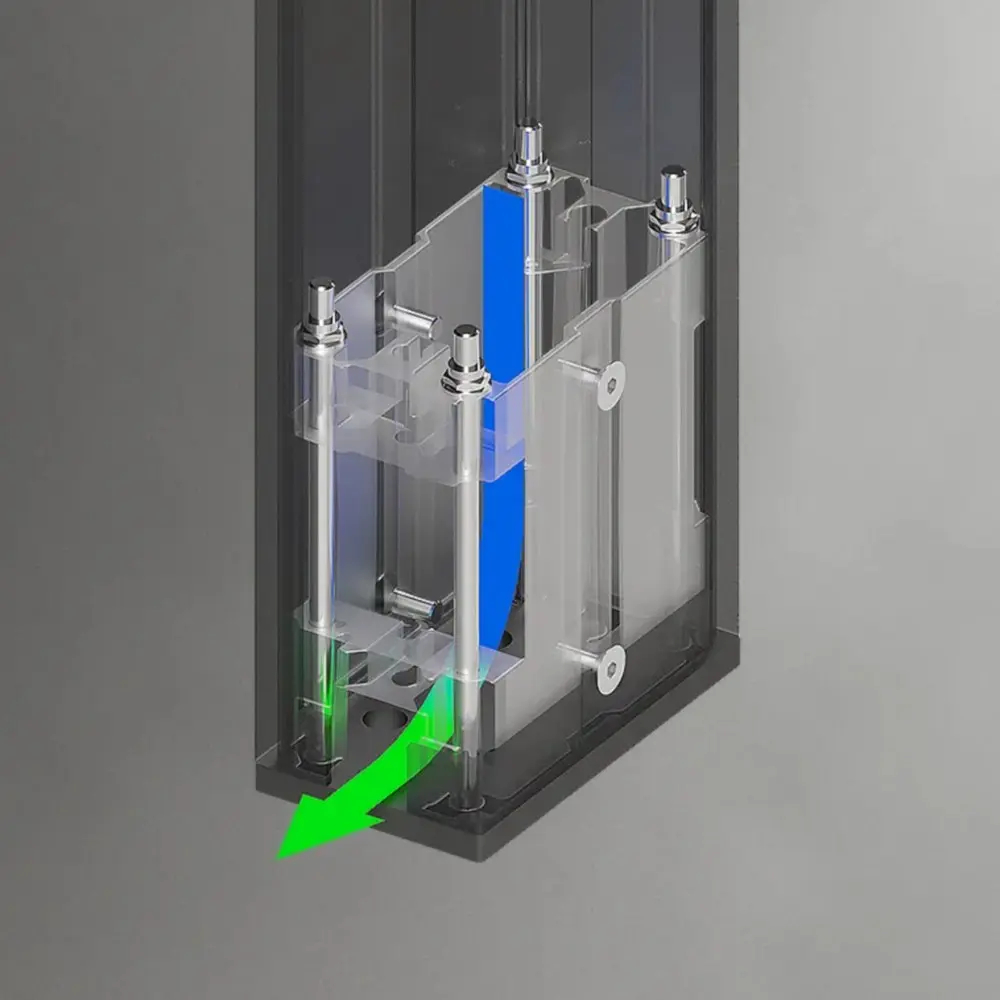

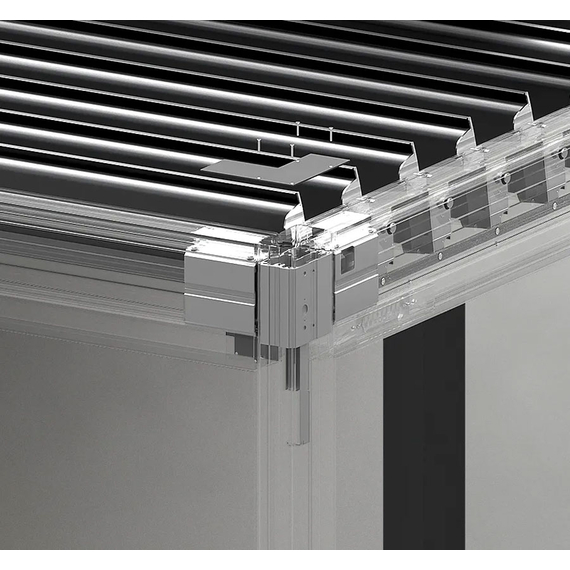

5. How does the gutter work?
Designation of water drainage details:
1. Flow through the blade gutter
2. Flow from the blades to the common gutter
3A. Rear peening blade
3B. Front matting blade
4. Additional side gutters (in case of water diversion next to it or in the wall version)
5. Overflows between gutters (longitudinal and transverse)

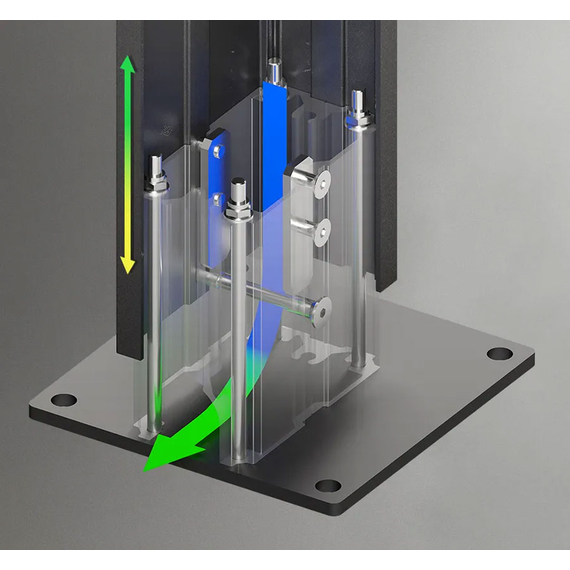

6. Derivation of the gutter common to the bars and post profile
7. Pole bypass
Two posts with water diversion are required.
Detail 1
Drain with blade gutter
(stable longitudinal slope of 20 mm)
Gutter diameter 36 mm
Detail 2
Drainage with common gutter
(transverse slope, without longitudinal slope)
Internal cut 87 x 48 mm
Detail 3a
Flow from rear blade to rear caulking blade (bent gutter).
The gutter without slope. The flow ends from the gutter to the common gutter.
NOTE: The gutter linked from two segments with the stud in the middle.
Detail 3b
Flow from the front blade to the front matting blade (bent gutter) the gutter without slope.
The flow ends from the gutter to the common gutter.
In the case of side diversion, the common gutter is below (transverse).
NOTE: The gutter linked from two segments with the stud in the middle
Detail 4
Transverse gutter (at a transverse slope, no unpleasant slope).
Internal cut 87 x 47 mm.
The gutter is connected to the longitudinal bar with the overflows
lateral ovals with angular derivation - internal cut mm.
Detail 5
Bean-shaped overflow hole 144 x 483
Straight branch profile (in bar) 34 x 44 mm
6. Cutting of parts:

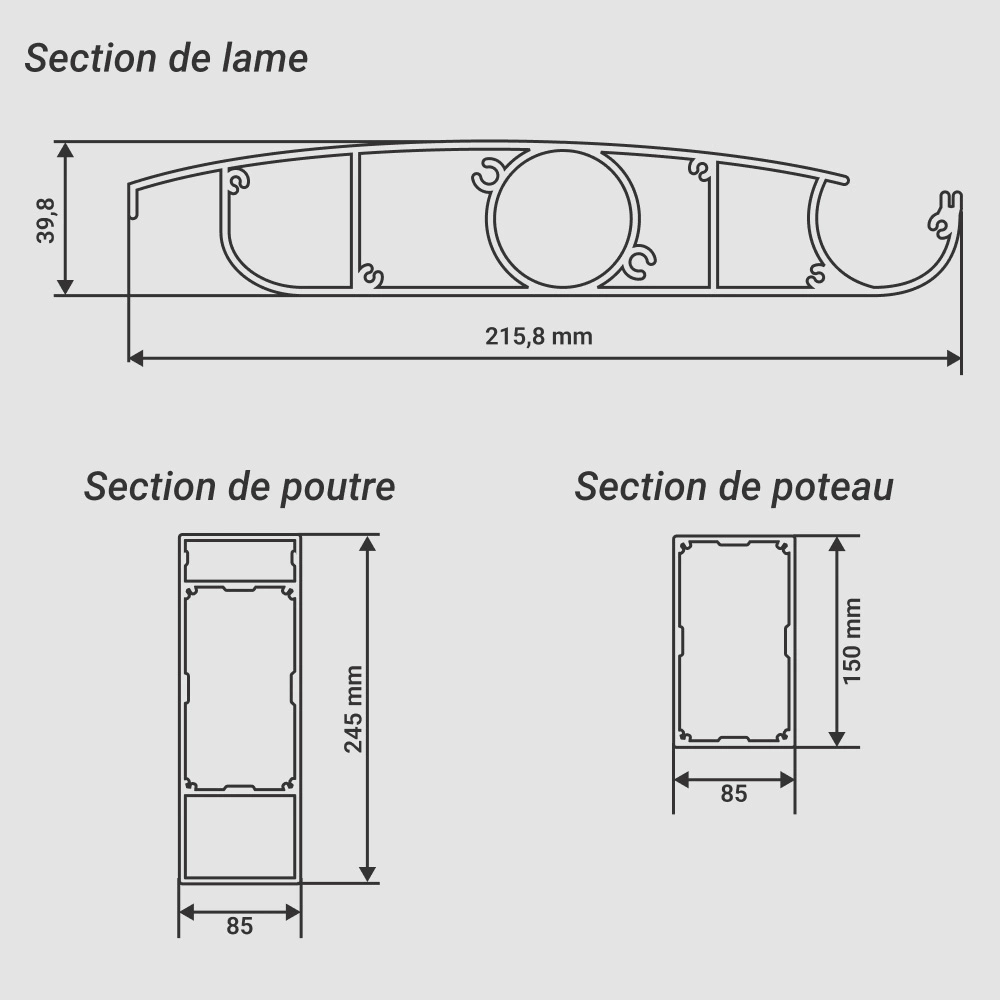

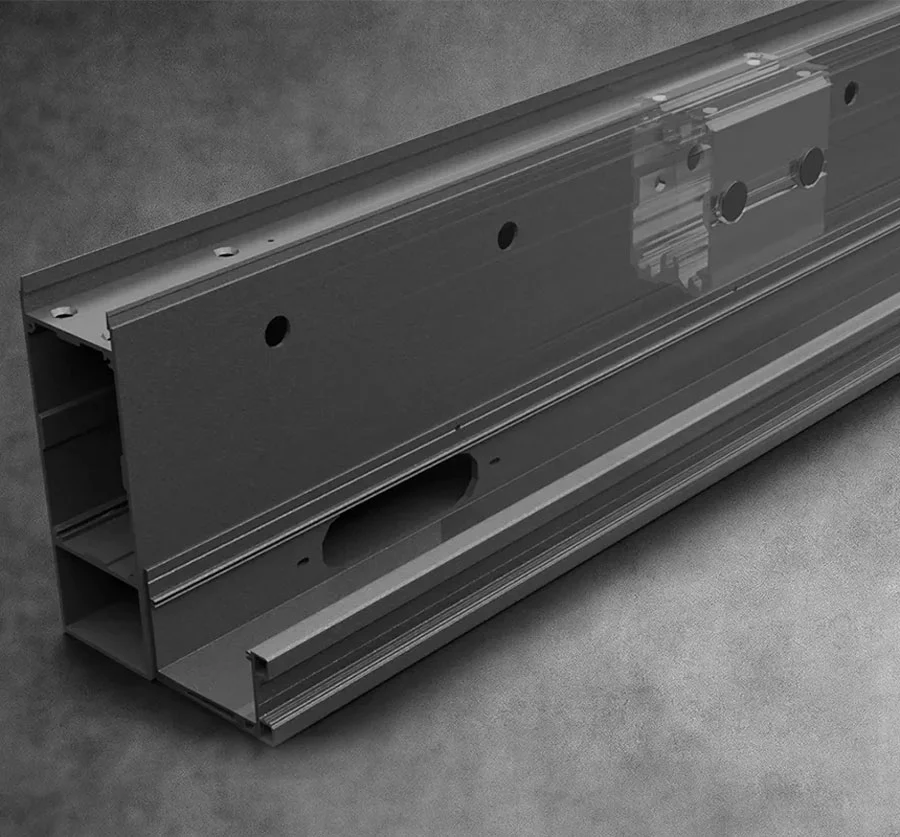

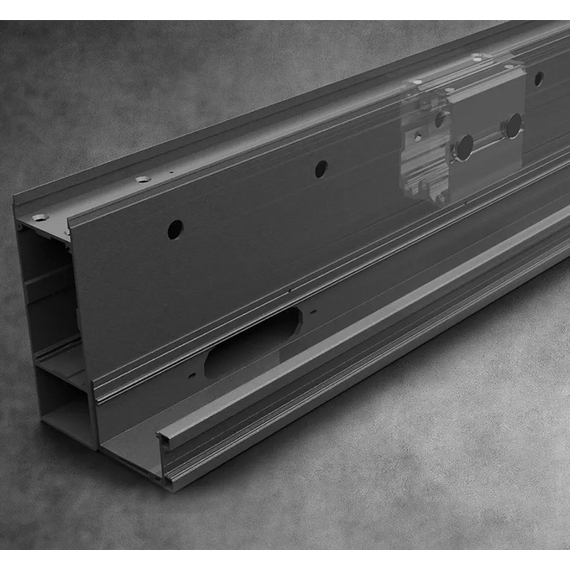

Bar cut (85x212)
Material : EN AW6060 T66
Static characteristics :
Mass 6.48 kg/m
Area = 24.01 cm 2
J1 = 291.31 cm 4
J2 = 1216.58 cm 4
Post section (85x150)
Material : EN AW6060 T66
Static characteristics :
Mass 4.83 kg/m
Area = 17.89 cm 2
J1 = 215.9 cm 4
J2 = 564.44 cm 4
Feet without diversion
Feet with bypass
Feet in powder-coated EN AW-5754 aluminum sheet, 8 mm thick.
Gutter cutting
(91.6x75)
Material: EN AW6060 T66
Mass 2.08 kg/m
Cutting the front complementary blade
Material: EN AW5754 sheet metal
Mass 0.24 kg/m
Cutting the rear complementary blade
Material: EN AW5754 sheet metal
Mass 0.27 kg/m
Simple cross section
Cross section for pergola with engine cover
Masking bar attachment detail
longitudinal section
mixed ck-row">
7. Where is LED lighting located?
Meaning :
1 - LED strip with a plinth next to the gutter
2 - LED strip with a plinth next to the bar
3 - End cap with milled groove
4 - Lighting controller
5 - 24 V power supply with the hanger
NOTICED :
If the total LED circuit > 12 m the power supply must be shared into 2 sections.
(at the cable exit point)
has. Detail of the LED strip power supply
b. Location of the LED power supply
Longitudinal bar
Cross-bar
Questions fréquentes
What is the price of this pergola?
To find out the price, it's very simple. Fill in the different elements (length, width, LED lighting and other options) to obtain your personalized quote.
Delivery is free in France.
How many colors are available for the blades?
In total, 26 RALs are available at no extra charge, with classic colors such as anthracite or white. If this range of colors is not enough, it is possible to select a personalized color (additional price to be expected).
What is the manufacturing time?
Allow 6-8 weeks for production then approximately 1 week to ship the products to your home.
Is it possible to deliver to Europe?
We can deliver your bioclimatic pergola to many European countries, but also to Switzerland.
To find out if we can deliver to you, you consult the list of available countries by putting the product in the basket then selecting the “Calculate shipping cost” option. Just remember to indicate the correct country of delivery when placing the order.
Orientation des lames de pergola
Options Details

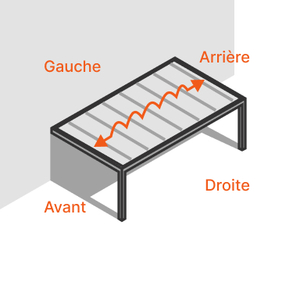

The pergola is fixed on the depth side.
The pergola is attached on the width side.
![Motorized bioclimatic pergola - Custom-made, Type of mounting bracket: Universal [125x85]](https://lacentrale-eco.com/images/thumbnails/300/300/variant_image/25/support_universel_pergola1.jpg "Motorized bioclimatic pergola - Custom-made, Type of mounting bracket: Universal [125x85]")
The universal bracket can be mounted against the wall or at a distance of 40.5 mm depending on which side of the bracket is attached to the wall.
Long side fixed to the wall = Pergola glued to the wall
There is only one possible way to attach the pergola: under the mounting bracket.
Short side fixed to the wall = Pergola at 40.5 mm from the wall
There are two possible ways to attach it, but always with the longer part facing down.
Detail of the piece :
Elero motor with Situo 1 IO pure control from Somfy
Elero motor with Situo 1 IO pure control and Ondeis rain sensor from Somfy

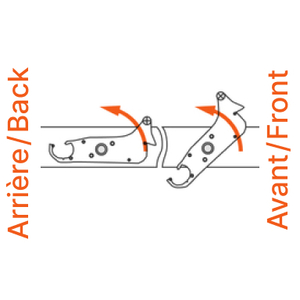

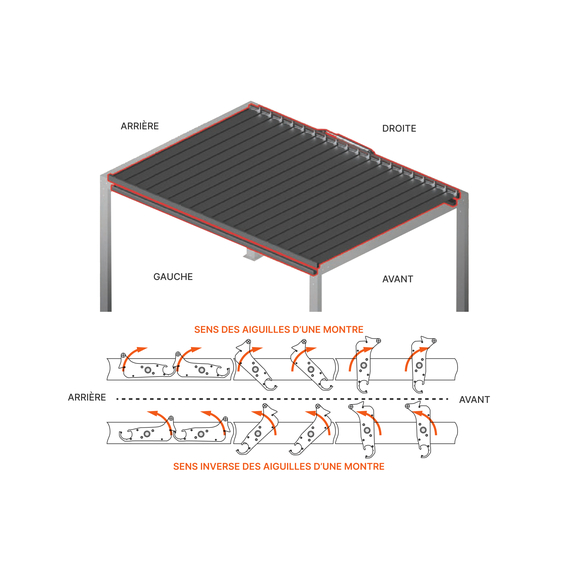

The blades will rotate clockwise when standing outside the pergola and looking at the left side.
So if the facade of your building is towards the rear, your slats open from the back to the front.
With 45° slats, the sun's rays will be blocked by the slats.
This orientation is ideal for pergolas located in regions south of Lyon, where solar gain in winter is not necessarily necessary to warm your main room.

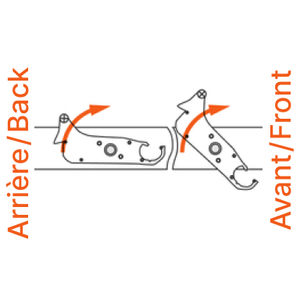

The blades will rotate counterclockwise when standing outside the pergola and looking at the left side.
So if the facade of your building is at the back, your slats open from front to back.
With the 45° slats, the sun's rays will be able to pass through mid-season and thus enter your home if your pergola faces south, and if your slats are parallel to the facade.
This orientation is ideal for pergolas located in regions north of Lyon, where solar gain in winter is necessary/desired to warm your main room.
Entre 1400 et 2500 mm de large :
- 4 spots entre 1400 et 3400 mm de projection
- 6 spots entre 3600 et 5200 mm de projection
- 8 spots entre 5400 et 7000 mm de projection
Entre 2750 et 4000 mm de large :
- 6 spots entre 1400 et 3400 mm de projection
- 9 spots entre 3600 et 5200 mm de projection
- 12 spots entre 5400 et 7000 mm de projection
- Classe 6 - 90 km / h
- No
